MCX straight Female plug connector for RG316 RG174 RF cable crimp & solder
- 500000000 Piece / Pieces per Month
- shenzhen
- T/T
- 3 days
You May Like
Product Description

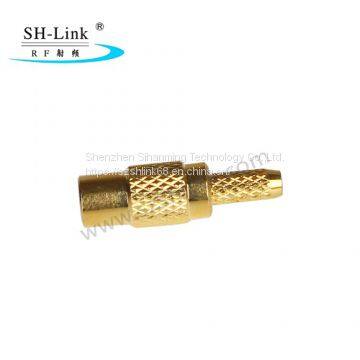

MCX straight Female plug connector for RG316 RG174 RF cable crimp & solder
TYPE MCX RF Coaxial Connector is a Kind of miniature Connectors with snap-on Coupling .Characteristic impedance has two types: 50Ω and 75Ω.The characteristic of connectors is in small volume、light weight、concise structure、easy to use.MCX Connector are widely used in the Global Position System、Digital Personal Computer Network、all kinds of radio instruments、small-sized electronic equipments and WLAN system.
MAJOR TECHNICAL CHARACTERISTICS
Temperature range | -55—+155℃（PE Cable -40—+85℃） | |
Impedance | 50Ω、75Ω | |
Frequency range | DC-6GHz | |
Working voltage | 250V(50Ω) 170V(75Ω) at sea level | |
Withstanding voltage | 250V(50Ω) 170V(75Ω) at sea level | |
Contact resistance | ||
Center contact | ≤5mΩ | |
Outer contact | ≤2.5mΩ | |
Insulation resistance | ≥1000MΩ | |
Center conductor retention force | ≥0.28N | |
Insertion loss | 0.18dB/1GHz | |
Engagement force | ≤20N | |
Disengagement force | ≥8N | |
Voltage Standing Wave Ratio | ||
Straight | ≤1.20/1GHz | |
Right angle | ≤1.45/1GHz | |
Durability(mating) | ≥500(Cycles) | |
Buy low price, high quality MCX Straight Female Plug Connector, RF MCX Male Plug Connector. You can choose our products. Our company is the leading factory. Warmly welcome new and old customers to visit and patronize!
