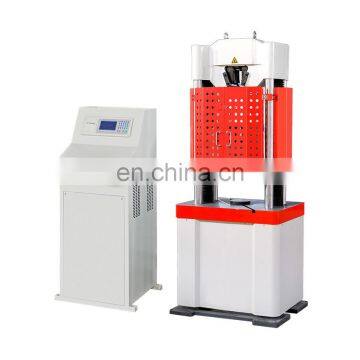

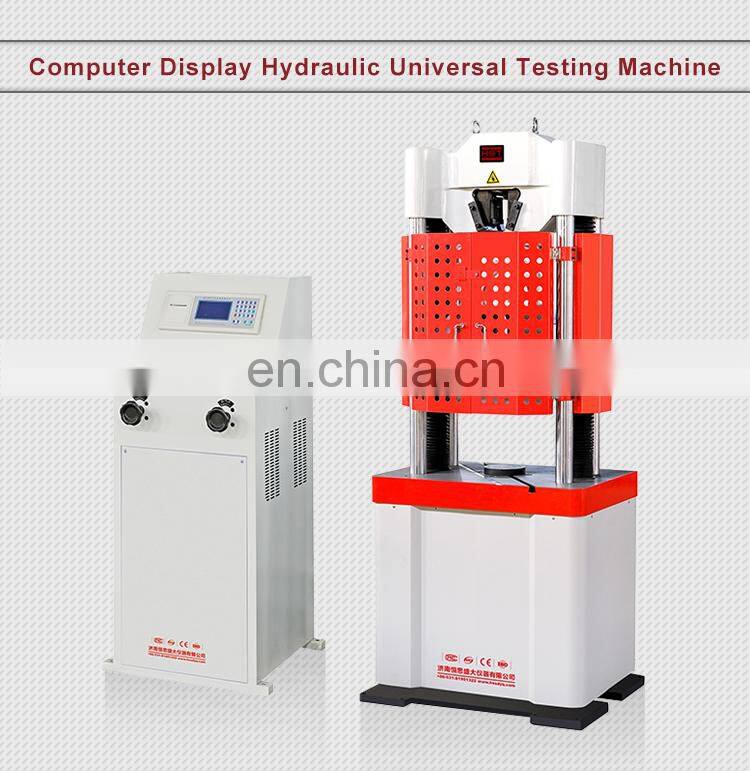

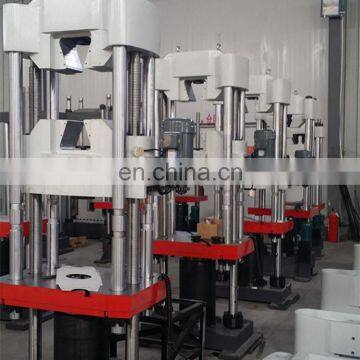

WE-D Six Columns Digital Display Hydraulic Universal Testing Machine/ bench, Tensile Testing Machine
- 300 Set / Sets per Month
- Qingdao China
- T/T Credit Card
You May Like
-
WE-D 600/1000/1500/2000kN Digital UTM Universal Testing Equipment /mechanical tensile testing machine
-
WE-600D 600/1000/1500/2000kN Digital UTM Universal Testing Equipment / Used Tensile Testing Machine
-
Hydraulic Universal Testing Machine UTM 2000Kn 200ton
-
WAW-2000D Pipe Hydraulic Pressure Test Equipment/Computerized Hydraulic Universal Testing Machine
-
WEW-1000D Computer Display 1000kn UTM Universal Testing Machine
-
WAW-2000D 2000KN UTM Computerized Control Servo Type Universal Testing Machine
Product Details
| Brand Name | hensgrand | Place of Origin | Shandong, China | |
| Model Number | WE-D | Power | Hydraulic |
Product Description

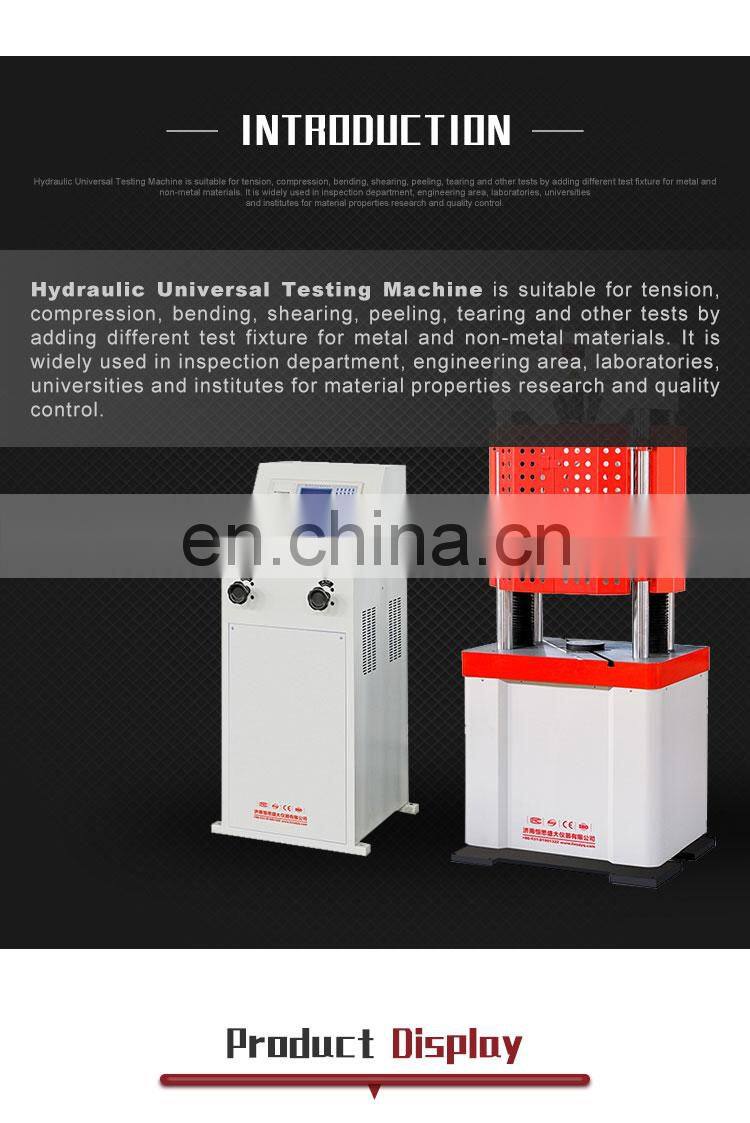

digital display hydraulic universal testing machine
1. Application
It is suitable for doing testing experiments such as the tensile, compression, bending and shear testing for all kinds of metal materials and nonmetal materials such as plastic, concrete, cement and so on.
2. Standards
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
3. Features
3.1 Specially designed extra-thick jaws block,sample clamp more reliable
3.2 Wear-resistant lining,protect jaws block
3.3 Fast operation testing system,multi specimen information imput
3.4 Consistant resolution,make sure data accuracy
3.5 Testing data real time display
3.6 Testing data auto analysis,save and print
3.7 Overload protection
3.8 History record check function
3.9 Software reserved data interface
Main Specifications
Model | WE-100D | WE-300D | WE-600D | WE-1000D |
structure | Four column Two ball screw | |||
Control way | loading process manual control | |||
Max. Load | 100kN | 300kN | 600kN | 1000kN |
Load range | 4%~100%FS | |||
Load accuracy | ≤±1% | |||
Test force resolution value | 0.01kN | |||
Clamping Method | Manual(Optional Hydraulic) | |||
Mas piston moving speed | 50mm/min | |||
Gantry adjust speed | 150mm/min | |||
Max piston stoke | 250mm | |||
Max. Tensile Test Space | 650mm | |||
Max.Compression Test Space | 500 | |||
Round Sample Clamping Diameter | Φ6-Φ13mm | Φ6-Φ26mm | Φ13-Φ40mm | Φ13-Φ40mm |
Flat Sample Clamping Diameter | 0-15mm | 0-15mm | 0-15mm | 0-30mm |
Clamping width of flat smple | 70mm | 70mm | 75mm | 75mm |
Pressure Plate Size | Φ160/204x204(optional) | |||
Bending Test Branch Roller Width | 140mm | |||
Roller distance of bending | 600mm | |||
Voltage | 380V/50Hz/3Phase(can be customized) | |||
