1PR x 0.75mm2 (O/A Screen) XLPE/LSZH/CWB/LSZH Instrument Cable

1PR Instrument Cable details:

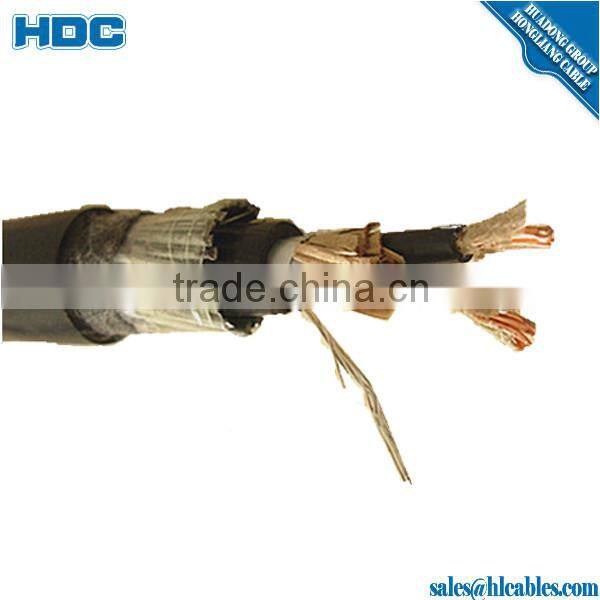

1. Construction
Copper strands, class 2 or class 5.
PE or XLPE insulation Twisted Pairs
Identification pairs: Blue, black numbered

Individule Screened with Aluminium /Polyester tape, metallic side down in contact with tinned copper drain wire 0.5mm2
Overall Screened with Aluminium /Polyester tape, metallic side down in contact with tinned copper drain wire 0.5mm2
PVC or LSHF Inner Sheathed
Galvanized Steel Wire Armoured
PVC or LSZH Outer Sheathed

2. Technical data
Rated voltage: 300V or 500V
Test voltage: 1000V for 300V rated 2000V for 500V rated
Temperature range 60°C or 90°C
Min. Bending radius: 6X OD
Reference standard: EN 50288-7
IEC 60332-1 Flame retardant
IEC 60332-3A Fire retardant on bunched cables (if required)
IEC 60754 Halogen free properties (only for LSHF)
IEC 61034 Low smoke emission (only for LSHF)

3. Application
This Specification covers multipair cables used in the provision of communication services and the interconnection of electrical equipment and instruments, particularly in and around process plants. These cables are generally for burial underground.

4. Available Size:

12, 14, 16, 18, 20 AWG

1X2X16 , 2X2X16 , 4X2X16 , 6X2X16 , 8X2X16 , 10X2X16 , 12X2X16 , 16X2X16 , 20X2X16 , 24X2X16 AWG and so on.

1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2) Outer packing: wooden case, carton box
3) Other packing requirement according to client's request

1. We guarantee to offer new advanced goods.

2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction, installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing, If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.

3.After installaton, We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.

4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and take charge in all expenses of reinstallation.

  Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.

2.what is the lead time ?

  The lead time usually is 10 - 30 working days.

3.what is the package of the cable ?

  The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.

4.Could we provide the free sample for customer ?

  Sure, we provide the free sample for customer to checking.
