EN 50288-7 Standard Direct Burial Instrumentation Cable CU/XLPE/PVC/SWA/PVC Armour Cable 2 Pair 0.75 Mmer Factory Price
- Qingdao /Tianjin/Shanghai / Guangzhou for Multi conductor ABC cable
- T/T Credit Card
You May Like
-

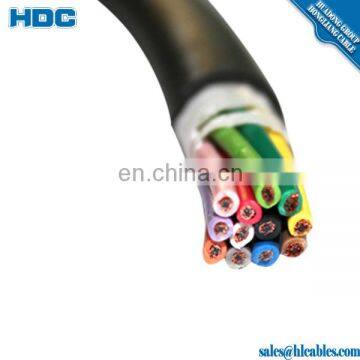

F-cvv-sb Cable Copper Wire Screened Control Cable
-
Multi Flexible Copper Conductor XLPE Insulation Copper Tape Screen PVC Cable
-
Philippines F-CVV-SB 70temperature PVC Control Cable Multicores Copper Braid Shield Flame Retardant PVC Sheath 2x1.5 2x4
-
0.6/1KV XLPE Insulation ROV-K 2X4mm2 Shield Cable Flexible Copper Conductor PVC Sheath
-

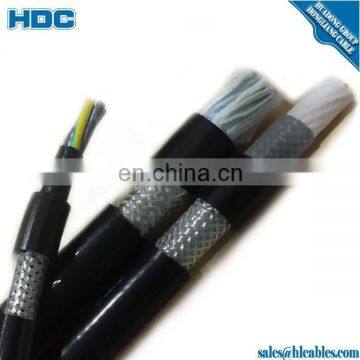

Copper Wire Braided Screen Control Cable PVC Insulated and Sheathed Woven Shielded Multicore Flexible Control Cable
-

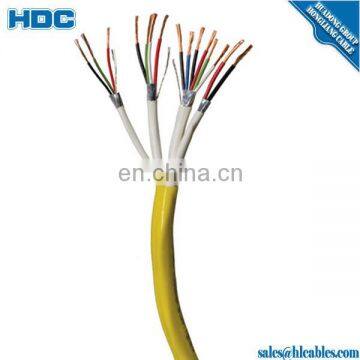

PVC Insulated Screen Flexible Control Cable With Multicore Cable
Product Details
| Brand Name | Huadong | Place of Origin | Henan, China | |
| Model Number | Instrumentation cable | Type | Insulated | |
| Insulation Material | PVC | |||
| Conductor Material | Copper |
Product Description

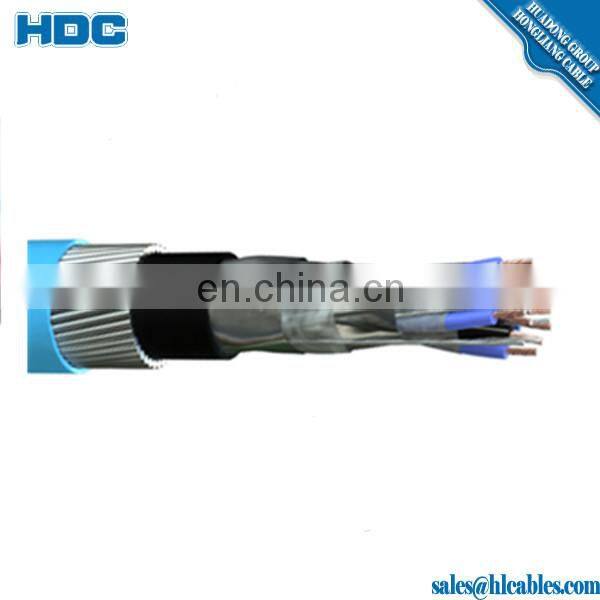

EN 50288-7 standard direct burial instrumentation cable CU/XLPE/PVC/SWA/PVC Armour cable 2 Pair 0.75 mmer factory priceice
Applications:
These cables are used for transmission of analoge and digital signals in instrument and control systems at chemistry and petrochemistry industry plants, power plants, natural gas and petroluem plants, etc
Construction
| Construction: | Annealed solid copper(Class 1),stranded(Class2), or fiexible(Class 5) to BS5360 . |
| Binder tape: | A 23 micron p.e.t.p.tape applied with a minimum 50% overlap. |
| Insulation: | Polyethylene to BS 6234 Type 03. |
| Collective screen: | Aluminium/p.e.t.p.laminated tape applied with the metallic side down in electrical contact with a 0.5mm 2 tinned copper drain wire over the p.e.t.p.binder tape. |
| Pair identification: | a)Collectively screened cables:Colour coded in accordance with Colour Code Chart 1 on page3 b)Individually screened pairs:One blue core and one black core in each pair.Pairs identified by numbered screen isolation tape. |
| Outer protection: | Type 1 Extruded flame retardant PVC sheath. Type 2 Extruded polyethylene bedding,alvanised steel wire armour,extruded flame retardant PVC sheath. |
| Pair screens: | Aluminium/p.e.t.p.Laminated tape applied with the metallic side down in electrical contact with a 0.5 mm 2 tinned copper drain wire. A 23 micron isolation tape is applied over the screening tape with a minimum 50% overlap. |
| Minimum bending radius: | Type 1: 8 x diameter. Type 2: 12xdiameter. |
| Voltage rating: | 300 volt core to earth and 500 volt core to core at maximum temperature of 65℃ |
| Temperature rating: | During Operation:-40℃+70℃ During Operation:-0℃+50℃ |

Cable parameter
MULTIPAIR INSTRUMENTATION CABLES(UNARMOURED)
TO BS 5308 PART 1-COLLECTIVELY SCREENED
Conductor | Number of Pairs | Nominal Overall Dia(mm) | Approx Weight (kg/km) |
1/0.8mm (0.5mm² ) | 1 | 5.7 | 40 |
2(Quad) | 6.5 | 60 | |
5 | 11.0 | 130 | |
10 | 14.4 | 220 | |
20 | 18.8 | 380 | |
30 | 22.4 | 540 | |
16/0.2mm (0.5mm² ) | 1 | 6.4 | 60 |
2(Quad) | 7.3 | 80 | |
5 | 12.5 | 200 | |
10 | 16.6 | 340 | |
20 | 21.7 | 570 | |
30 | 26.3 | 790 | |
24/0.2mm (0.75mm² ) | 1 | 6.7 | 75 |
2(Quad) | 7.7 | 100 | |
5 | 13.7 | 250 | |
10 | 18.1 | 450 | |
20 | 23.9 | 800 | |
30 | 28.9 | 1130 | |
1/1.13mm (1.0mm²) | 1 | 6.8 | 85 |
2(Quad) | 7.8 | 115 | |
5 | 13.7 | 290 | |
10 | 17.8 | 500 | |
20 | 23.8 | 950 | |
30 | 28.4 | 1330 | |
7/0.53mm (1.5mm² ) | 1 | 7.7 | 100 |
2(Quad) | 9.1 | 150 | |
5 | 15.8 | 360 | |
10 | 21.0 | 670 | |
20 | 27.9 | 1230 | |
30 | 33.7 | 1720 |
Packing by iron-wooden drum or as customer`s requirement.
EN 50288-7 standard direct burial instrumentation cable CU/XLPE/PVC/SWA/PVC Armour cable 2 Pair 0.75 mmer factory price
Advanced connectors & assembly cables machines and testing equipments.
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km .
Main products:
Bare stranded conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);OPGW,0.6/1KV Aerial Bundled Cable (ABC Cable);Power cable,Electrical wire cable,Different voltages of XLPE insulated cables, Armored cables, Control cables, Rubber insulated cables, PVC insulated wires and cables, Battery cables,Instrument cables, Coaxial cables,Flat cables,Welding cables,House wire,Special Cables etc.
Frequently Asked Question
1. Which payment terms do you accept?
a.The payment term varies with different price level and total rate of each contract.
The following are most common terms:
b. 30% T/T down payment, the balance before you picking up the goods.
c. 100% L/C at sight.
d. 30% T/T down payment, the balance against 100% L/C at sight.
2. What is your MOQ?
You are advised to please confirm it with us directly as it’s based on different cable type.
Usually it’s 100 meters for Medium Voltage Cables.
3. What about the lead time for our cable product ?
The lead time according to the your order's quantity.Usually our lead time is 10 - 30 wrking days.
4. What about our product's package ?
our product's package usually is wooden drum or steel-wooden drum.The cable wire is usually coiled.
