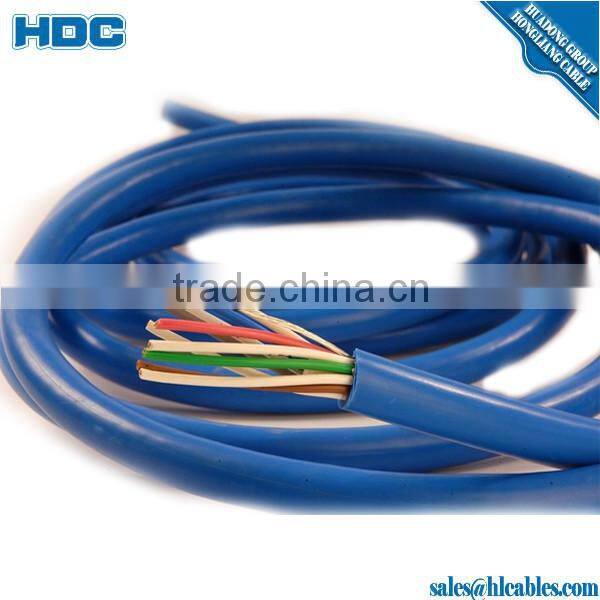

SCADA Cable 12X1.5mm 2 , 7 strands, 500M Per Drum CU/PVC/SWA/PVC

SCADA Cable 12X1.5mm 2 , 7 strands, 500M Per Drum CU/PVC/SWA/PVC

Technical data

• Control cable, special PVC with blue outer jacket for hazardous areas to hazard type -i- (=intrinsically safe)
• For intrinsically safe installation according to DIN EN 60079-14 and IEC 60079-14 section 12.2.2. (VDE 0165 part 1)
• Temperature range
  flexing -5°C to +80°C
  fixed installation -40°C to +80°C
• Nominal voltage U0/U 300/500 V
• Test voltage 3000 V
• Breakdown voltage min. 6000 V
• Insulation resistance
  min. 20 MOhm x km
• Mutual capacitance
  conductor/conductor approx. 140 nF/km
  conductor/shield approx. 187 nF/km
• Inductance approx. 0,68 mH/km
• Coupling resistance
  max. 250 Ohm/km
• Minimum bending radius
  flexing 10x cable Ø
  fixed installation 5x cable Ø
• Radiation resistance
  up to 80x106 cJ/kg (up to 80 Mrad)

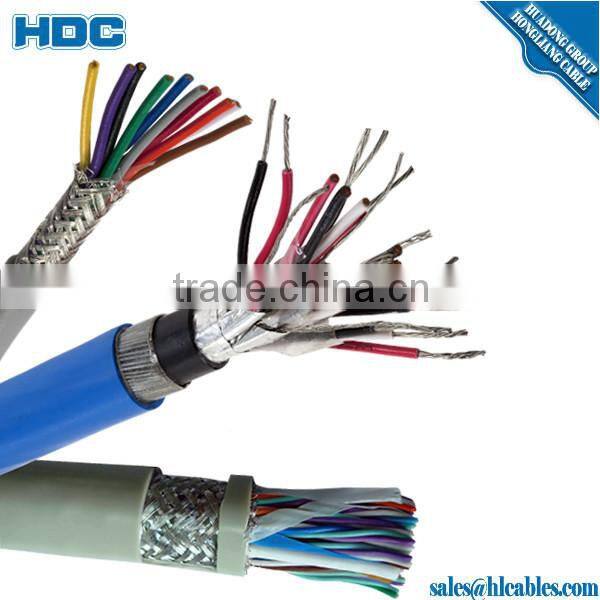

Cable structure

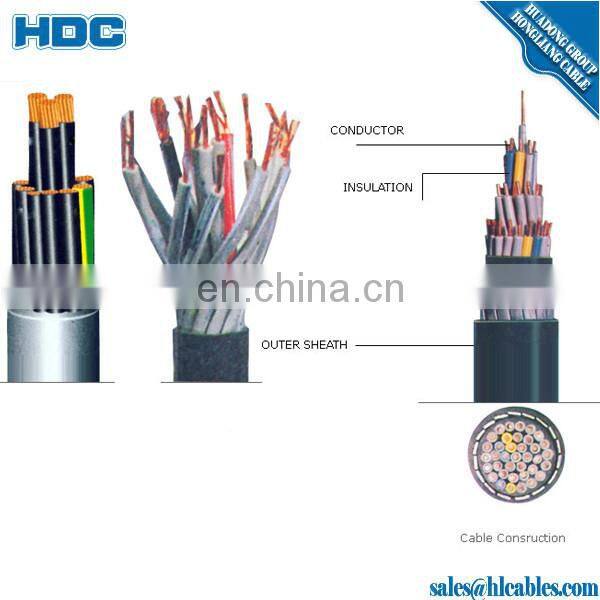

• Bare copper, fine wire conductors, bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
• conductor insulation of special PVC Z 7225
• Black conductors with white continuous figure imprint to DIN VDE 0293 without ground
• conductors stranded in layers with optimal lay-length
• conductor wrapping of plastic foil
• Braiding, tinned copper wire shielding, approx. 85% coverage
• Special PVC outer jacket TM2, to DIN VDE 0281 part 1 and HD 21.1
• color blue (RAL 5015)
• with meter marking, change-over in 2011

Properties

• Extensively oil resistant, oil-/ chemical Resistance - see table Technical Informations.

• PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2/ IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)

• The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers

Note

• For underground laying use NYY with blue outer jacket.

• AWG sizes are approximate equivalent values. The actual cross-section is in mm².

• Instrumentation cable RE-2Y(St)Yv with blue outer jacket see Data and Computer Cables

Application

For hazardous areas the cables with special marking (blue) (hazard type-i-) used as flexible control and measuring cables to meet the requirements for the installation of electrical apparatus. These installations are not grounded and require a separate power circuit. Those cables are not suitable for underground laying. The copper braided shielding ensures the transmission of data signals and free from interference.
EMC = Electromagnetic compatibillity
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
