Product Details
| Brand Name | Taibo | Place of Origin | Shandong, China | |
| Model Number | TYX-50 | |||
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | One Year | |
| Weight | 360kg | Dimension(L*W*H) | 1000*1000*1600mm | |
| Production Capacity | 50kg/batch | Voltage | 220v/380v | |
| Certification | CE ISO | Condition | New |
Product Description

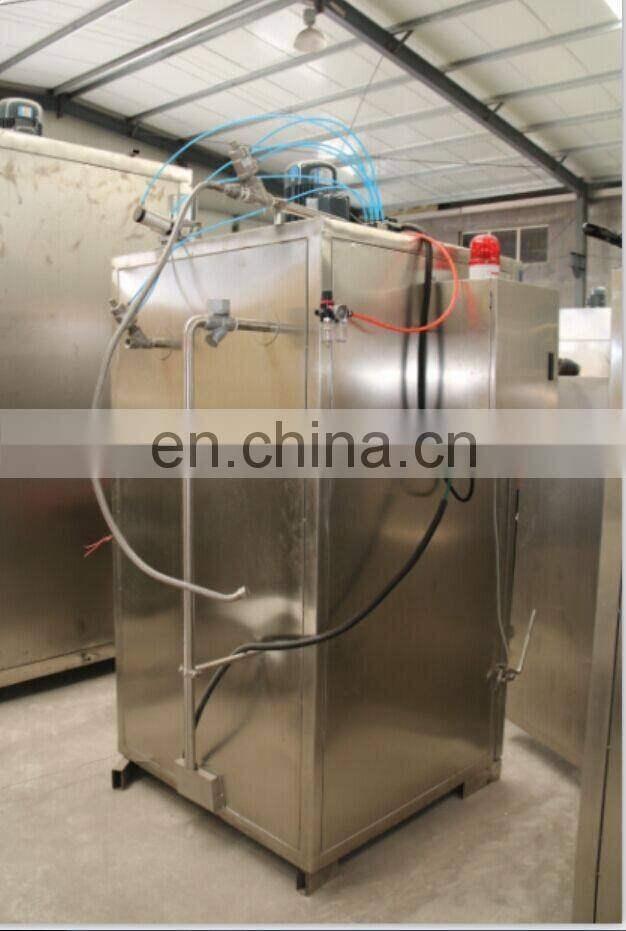

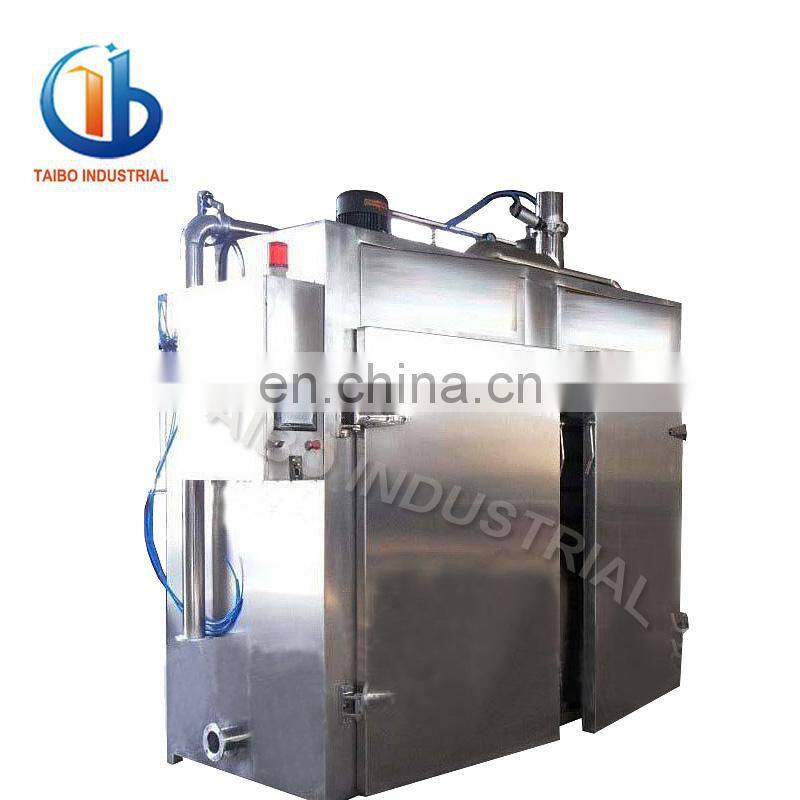

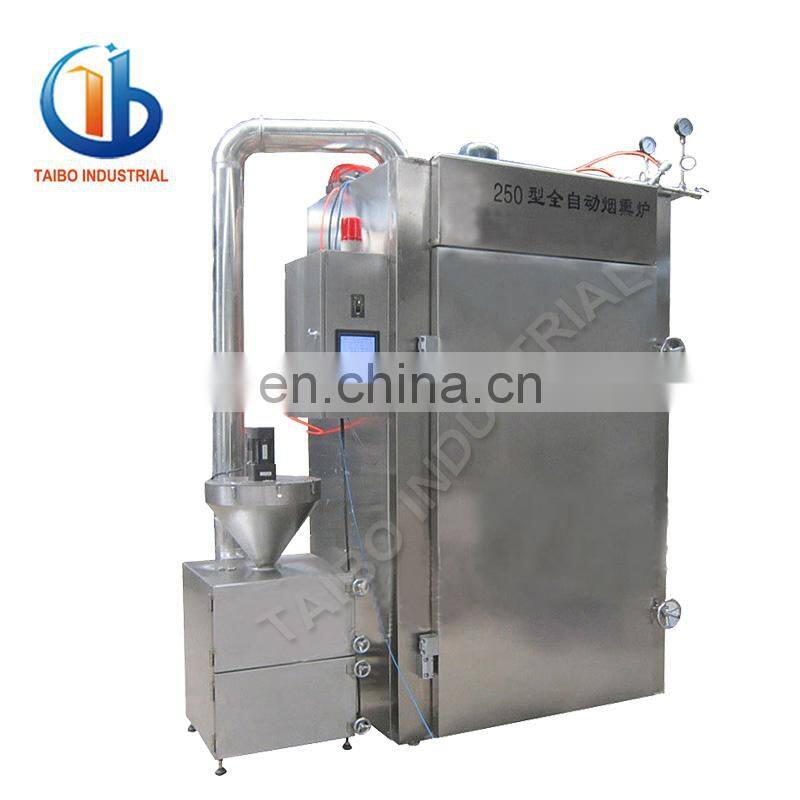

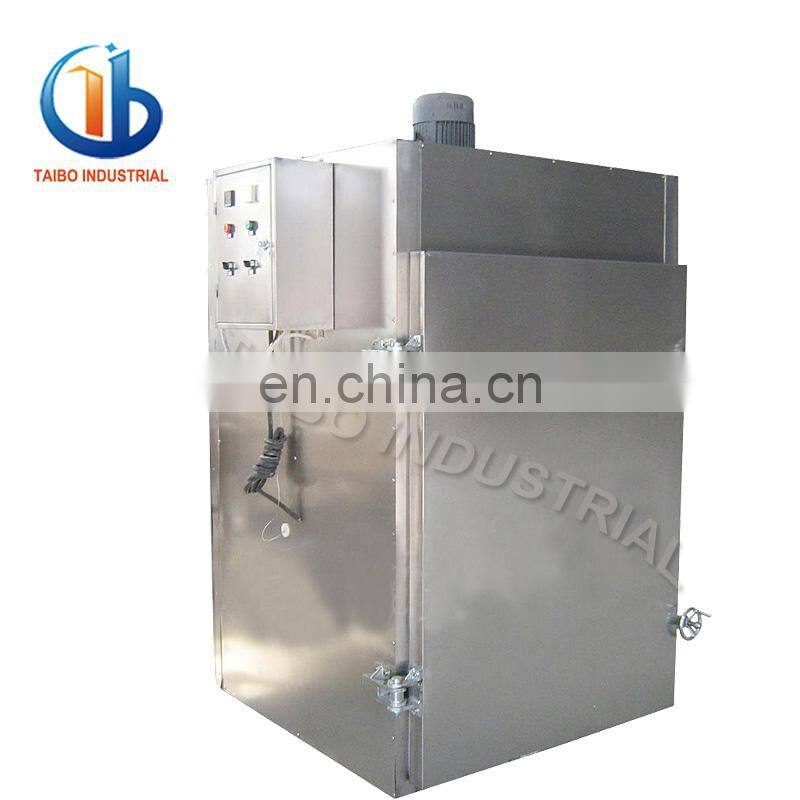

Meat Smoking Machine
The meat smoking machine is one of the essential equipment for meat curing and smoking. It has function of boiling, drying, baking and smoking etc.
This machine can cook and smoke all kinds of sausages(sausage,ham sausage,dry sausage etc.), meat (cutlet, beef jerky, shish kebab, bacon etc ), paultry(chicken,duck,drumstick, chicken wing, duck neck),fish,dried beancurd and bean curd shin
The smoked food colour is bright,taste is delicious,it is fragrant and non greasy.It can also improve the smoking environment,save labour and improve efficiency.
The host framework interlayer is filled by high temperature resistance material,one-stage moulding,
which improve the insulating effect and sealing performance,shorten the temperature rise time,save energy,
improve efficienty,make the temperature control exact and run reliable.
The smoking machine adopts circulating fan with impeller structure, the maximum speed of fan blade can up to
25m/s through 3000 r / min dynamic balance calibration,it can guarantee the temperature is uniform of each part,
the temperature difference is smaller and guarantee the airflow of furance is uniform.
"U" type steam heat exchanger structure can improve heat exchange area of 70%, quicken temperature rise
speed,guarantee products temperature rise fast and heated uniformly.
Smoke generator adopts wood pellets fuming device, fuming stable, colouring fast, and the smoke into the
cabinet is clean
Large human-computer interface (optional), vivid visually display the equipment running status ,the time,temperature,humidity,ventilation output etc.can be adjusted freely when the machine work.the operation is
very easy.
TECHNICAL PARAMETER
Model | TYX-50 | TYX-100 | TYX-250 | TYX-500 | TYX-750 | TYX-1000 |
Capacity(kg/batch) | 50 | 100 | 250 | 500 | 750 | 1000 |
Total power(kw) | 4.2 | 4.2 | 6.12 | 10.12 | 14.12 | 18.12 |
High pressure steam pressure(mpa) | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 |
bottom pressure steam pressure(mpa) | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 |
High pressure furnace temperature(℃) | <85 | <85 | <85 | <85 | <85 | <85 |
Bottom pressure furnace temperature(℃) | <100 | <100 | <100 | <100 | <100 | <100 |
Water pressure | 0.2 | 0.2 | 0.2 | 0.2 | ||
Standard hanging car(mm) | 1000*1030* 1980 | 1000*1030* 1980 | 1000*1030* 1980 | 100*1030* 1980 | ||
Size of main machine(mm) | 1000*1000* 1600 | 1220*1000* 2300 | 1290*1510* 3100 | 2360*1510* 3100 | 3530*1510* 3100 | 4630*1510* 3100 |
Weight | ≈360 | ≈620 | ≈1500 | ≈2000 | ≈2500 | ≈3000 |
Fuming feeding motor power(kw) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
Fuming fan motor power(kw) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
Materials:
1.The machine body is made of standard SUS304,which is up to food degree. The motor is good quality national standard copper core motor,
which is long time service.
2.The electrical components are of good quality to ensure safety.
Manufacturing Technique:
1.More than 10 years manufacturing experience ensure every machine
is in good performance.
2.Advanced engineers and designer ensure every machine is in reasonable structure and delicate appearance.
Warranty:
We guarantee the machine for one year,during the warranty year,
if any of the parts broken (excluding the quick-wear part),
we will replace the new one for you free charge.
Service:
1.For the single machine,we will provide proper model according to customers requirement.
2.For the non-standard equipments and production line,
our engineer will design machine layout according to customers’ workshop
and Product processing technology
3.We send engineers and technicians to customers’ factory to
install the machine and train the worker for the production line.
4.The machine parts can be provided all the time.
5.Customers’ inquiry and email will be replied within 24 hours.
