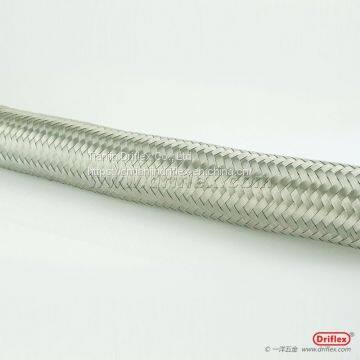

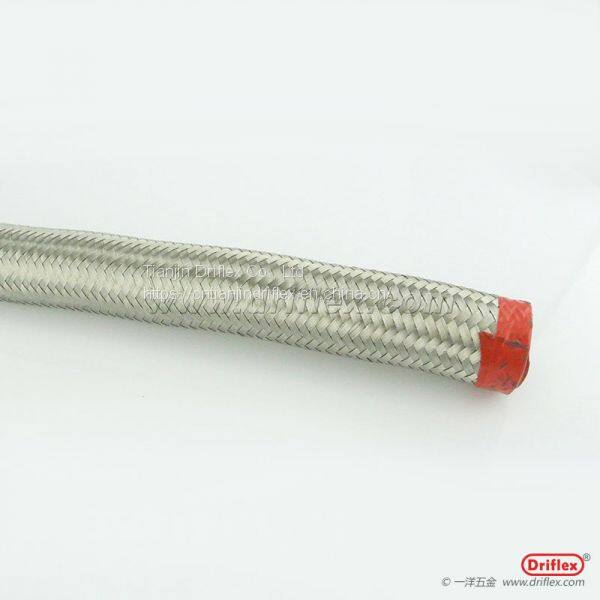

1/2 Inch Explosive Proof Flexible Conduit Stainless Steel Braided
- Tianjin
- T/T
- 3 days
You May Like
-
3/4 Inch Explosive Proof Flexible Conduit Stainless Steel Braided
-
1 Inch Explosive Proof Flexible Conduit Stainless Steel Braided
-
1 1/4 Inch Explosive Proof Flexible Conduit Stainless Steel Braided
-
1 1/2 Inch Explosive Proof Flexible Conduit Stainless Steel Braided
-
2 Inch Explosive Proof Flexible Conduit Stainless Steel Braided
-
2 1/2 Inch Explosive Proof Flexible Conduit Stainless Steel Braided
Product Details
| Brand Name | Driflex | Place of Origin | China | |
| Model Number | PVJ-11 | Material | Steel | |
| Type | Flexible |
Product Description
Description:
Features:

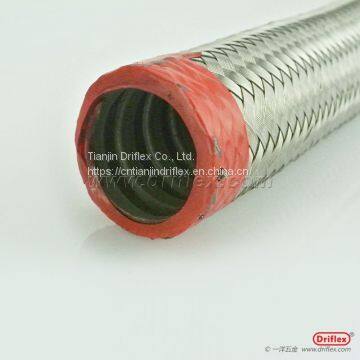

Galvanized steel, square-locked core with cord packing from 3/8" to 1-1/4", interlocked core from 1-1/2" to 4" to give additional strengh to prevent unravelling
Smooth wipe clean PVC jacketed, wire braiding.
Liquid-tight IP66/IP67
Good flexibility
High mechanical strength
Flame retardent，explosive- proof.
UV protection
moisture proof
Resistance to most of chemicals, such as oil, acids and vapours, etc.
Good Absorption of motion and vibration
Cover does not winkle when bent
Temperature range from -50oC to +300oC
PVC colour black (standard), grey or orange (made to order)

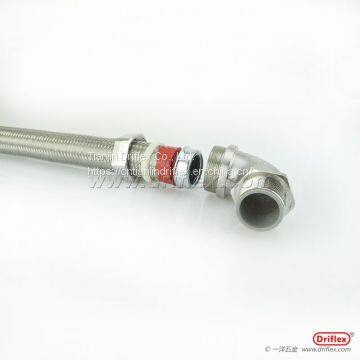

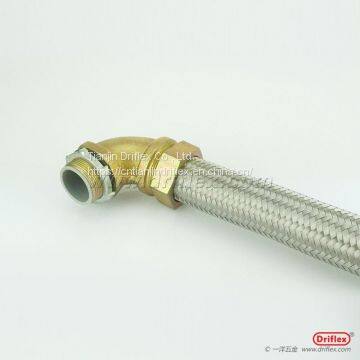

Nickel plated brass fittings
Galvanized malleable iron fittings
Stainless steel fittings
Applications:
General indutrial installations and wire protection
Outdoor installation
Machine tools
Installations where liquid-tight is a requirement
Special Applications:
According to customer's samples and specifications, we can manufacture the LT type flexible conduit to suit special applications, such as wider temperature range, specific chemical resistance, etc.
Specifications:
| Part No | Nominal Size ISO (mm) | Nominal Size US (inches) | I.D. (mm) | O.D (mm) | Min. Bend Radius (mm) | Length (M/coil) |
|---|---|---|---|---|---|---|
| PLT-10 | 16 | 3/8" | 12.3 - 12.8 | 18.5 - 19.0 | 75 | 50 |
| PLT-11 | 20 | 1/2" | 15.7 - 16.3 | 21.8 - 22.3 | 95 | 50 |
| PLT-12 | 25 | 3/4" | 20.7 - 21.2 | 26.2 - 27.7 | 120 | 30 |
| PLT-13 | 32 | 1" | 26.2 - 26.8 | 33.8 - 34.4 | 180 | 30 |
| PLT-14 | 40 | 1-1/4" | 34.7 - 35.4 | 42.4 - 43.2 | 230 | 20 |
| PLT-15 | 50 | 1-1/2" | 40.0 - 40.6 | 48.4 - 49.3 | 270 | 20 |
| PLT-16 | 63 | 2" | 51.3 - 51.9 | 60.4 - 61.3 | 300 | 15 |
| PLT-17 | 75 | 2-1/2" | 62.9 - 63.6 | 73.1 - 74.0 | 350 | 10 |
| PLT-18 | 90 | 3" | 77.9 - 78.7 | 88.9 - 89.9 | 500 | 10 |
| PLT-19 | 100 | 4" | 101.6 - 102.6 | 114.3 - 115.3 | 650 | 5 |
Suitable fittings:
LT type of fittings - IP66/67 (liquid-tight)
