GALVANIZED STEEL PVC COATED FLEXIBLE CONDUIT
- Tianjin
- T/T
- 5 days
You May Like
Product Details
| Brand Name | DRIFLEX | Place of Origin | China | |
| Model Number | FM-S | Material | Iron | |
| Type | Flexible |
Product Description
Features:

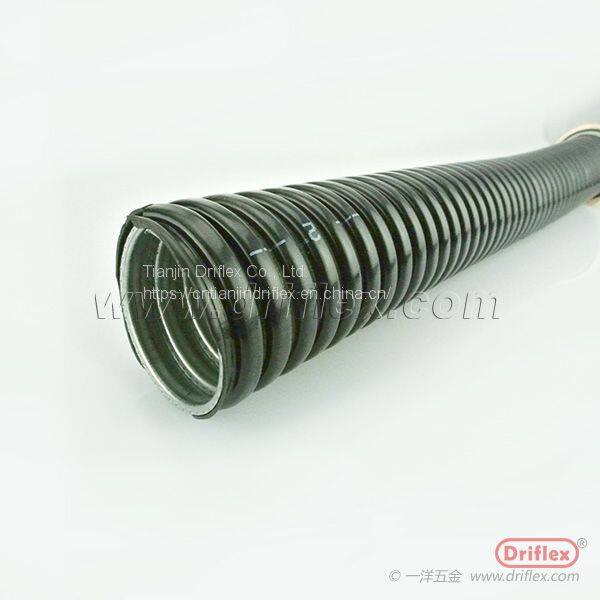

Galvanized steel（S） or stainless steel（SS）, square-locked core
PVC vacuum jacketed
Light weight
Water resistance
Excellent flexibility
Temperature range from -20oC to +105oC
PVC colour black (standard), grey or orange (made to order)

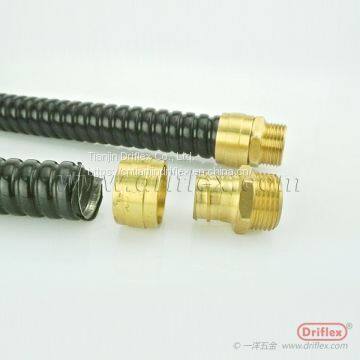

Nickel plated brass fittings
Galvanized malleable iron fittings

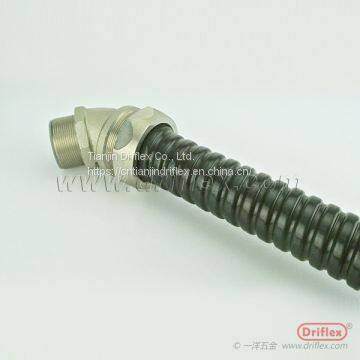

Stainless steel fittings
Applications:
General indutrial and commerical electrical wiring protection
Machining centres and robotics
any narrow space in static applications
Special Applications:
According to customer's samples and specifications, we can manufacture the VJ type flexible conduit to suit special applications, such as wider temperature range, flame retardent, etc.
Specifications:
| Part No | Nominal Size ISO (mm) | Nominal Size US (inches) | I.D. (mm) | O.D. (mm) | Min. Bend Radius (mm) | Length (M/coil) |
|---|---|---|---|---|---|---|
| VJ-10S/SS | 16 | 3/8" | 12.3 - 12.8 | 16.7 - 17.2 | 50 | 50 |
| VJ-11S/SS | 20 | 1/2" | 15.8 - 16.3 | 20.2 - 20.7 | 65 | 50 |
| VJ-12S/SS | 25 | 3/4" | 20.7 - 21.2 | 25.5 - 26.1 | 75 | 50 |
| VJ-13S/SS | 32 | 1" | 26.0 - 26.6 | 31.6 - 32.2 | 100 | 50 |
| VJ-14S/SS | 40 | 1-1/4" | 34.7 - 35.4 | 40.8 - 41.5 | 125 | 30 |
| VJ-15S/SS | 50 | 1-1/2" | 40.0 - 40.6 | 46.6 - 47.2 | 150 | 30 |
| VJ-16S/SS | 63 | 2" | 51.3 - 51.9 | 58.1 - 58.7 | 175 | 20 |
| VJ-17S/SS | 75 | 2-1/2" | 63.0 - 63.6 | 71.8 - 72.4 | 200 | 10 |
| VJ-18S/SS | 90 | 3" | 78.0 - 78.7 | 87.2 - 87.9 | 225 | 10 |
| VJ-19S/SS | 100 | 4" | 101.6 - 102.6 | 111.2 - 112.3 | 275 | 5 |

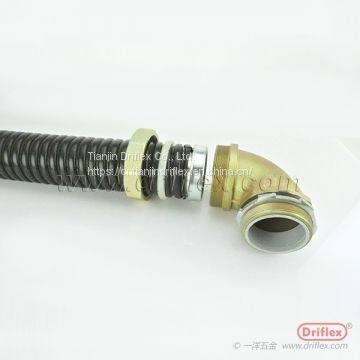

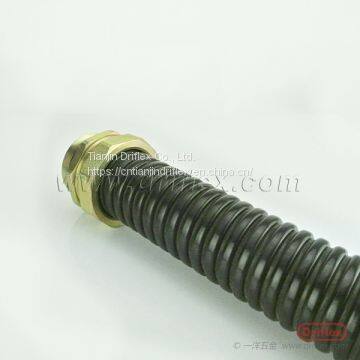

Suitable fittings:
VJ type of fittings - IP54 (non-liquid-tight)
LT type of fittings - IP66 (liquid-tight)
