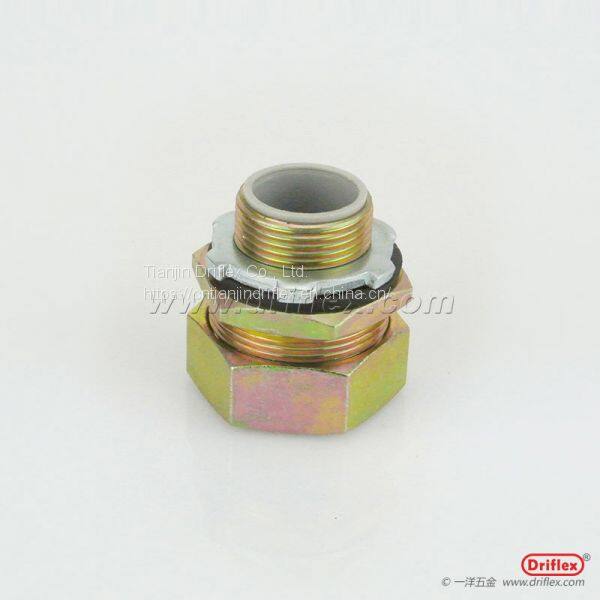

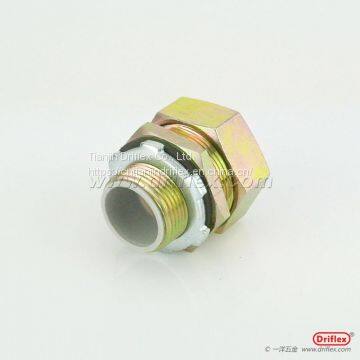

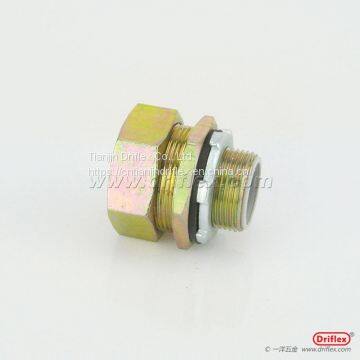

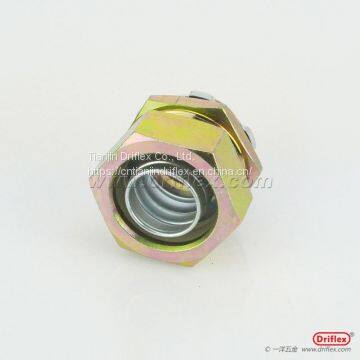

M20*1.5 COLOR ZINC GALVANIZED STEEL STRAIGHT CONDUIT CONNECTOR CNC MACHINED
- Tianjin
- T/T
- 3 days
You May Like
-
M25*1.5 COLOR ZINC GALVANIZED STEEL STRAIGHT CONDUIT CONNECTOR CNC MACHINED
-
M32*1.5 COLOR ZINC GALVANIZED STEEL STRAIGHT CONDUIT CONNECTOR CNC MACHINED
-
M40*1.5 COLOR ZINC GALVANIZED STEEL STRAIGHT CONDUIT CONNECTOR CNC MACHINED
-
M50*1.5 COLOR ZINC GALVANIZED STEEL STRAIGHT CONDUIT CONNECTOR CNC MACHINED
-
1 Inch Vacuum Jacketed Galvanized Steel Core PVC Coated
-
1 1/4 Inch Vacuum Jacketed Galvanized Steel Core PVC Coated
Product Details
| Brand Name | Driflex | Place of Origin | China | |
| Model Number | LTCM-I10 | Type | Other, CONDUIT CONNECTOR | |
| Application | Other, CONNECTING CONDUIT | Gender | Male |
Product Description

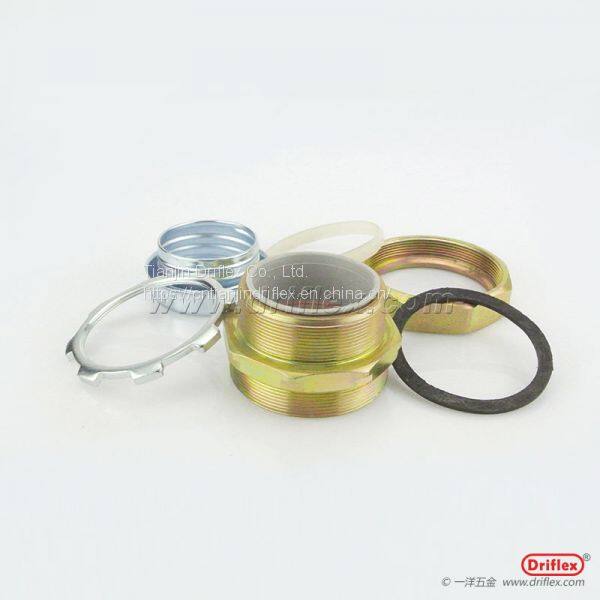

Structure:
Connector body - Galvanized die casting,zinc plated steel& malleable iron, nickel plated brass, stainless steel.
Hexagon pressure nut - Galvanized die casting zinc plated steel& malleable iron,nickel plated brass, stainless steel.
Sealing ring - Nylon 66
Ferrule - Galvanized steel
Features:
Simple, one piece installation provides a quick and reliable liquid-tight seal
IP rating from IP40 to IP66/67 in combination with the corresponding flexible conduits
High mechanical strength
Highly liquid-tight and dustproof
Vibration and tensionproof
Inherently low fire hazard
Covering of the conduit ends
Available in straight, 45o and 90o bodies
Available in ISO Metric and NPT threads
Applications:
General indutrial and commerical electrical wiring protection
Machining centres and robotics
any narrow space in static applications
General wiring for OEM applications
Low fire hazard applications
Underflooring wiring in office buildings
Special Applications:
According to customer's samples and specifications, we can manufacture special fittings for suit any type of flexible conduit applications.
Specifications:
| Part No | ISO Thread (mm) | Part No | NPT Thread (inches) | I.D. (mm) | O.D (mm) | Box (pcs) |
|---|---|---|---|---|---|---|
| LTCM-09 | 16 | LTC-09 | 5/16" | 11.0 | 15.7 | 25 |
| LTCM-10 | 16/20 | LTC-10 | 3/8" | 11.0 | 19.7 | 25 |
| LTCM-11 | 20 | LTC-11 | 1/2" | 14.5 | 19.7 | 25 |
| LTCM-12 | 25 | LTC-12 | 3/4" | 19.5 | 24.7 | 25 |
| LTCM-13 | 32 | LTC-13 | 1" | 25.0 | 31.7 | 15 |
| LTCM-14 | 40 | LTC-14 | 1-1/4" | 33.5 | 39.7 | 6 |
| LTCM-15 | 50 | LTC-15 | 1-1/2" | 38.0 | 49.7 | 6 |
| LTCM-16 | 63 | LTC-16 | 2" | 49.5 | 62.7 | 4 |
Suitable flexible conduits:
VJ type of vacuum jacketed flexible conduit
LT type of liquid-tight flexible conduit
FM type of flexible metallic conduit
