2x4 Fibre Optical Switches Duplex 1x2 Opto-Mechanical In Relay Hub Module
You May Like
-
Single Pole Double Throw Fiber Optic A/B Switch
-
Passive CWDM Mux Demux 8CH Module by 4pcs LGX Box in one 19" 1U Rackmount
-
Dual 88-CH 50GHz Flat-Top AWG DWDM Mux Demux with 1% Tap Monitor
-
Single Mode 1x8 MEMS Optical Switches Mini 850nm For DWDM networks
-
Passive device 1x16 CWDM Mux Demux for WDM Nettwork , CATV system
-
2 Channels Acess Network CWDM Mux Demux ABS Pigtailed Module
Product Details
| Brand Name | GEZHI or OEM | Place of Origin | China | |
| Model Number | GZ-2x4 Optical Switch |
Product Description

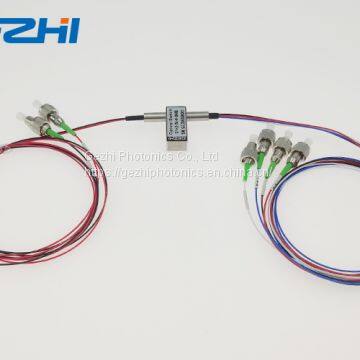

The GEZHI Photonics dual 1x2 (2x4) Fibre Optical switches is equivalent to two single 1x2 fiber optic switches in one switch that change state together (they cannot be switched independently).
Dual 1x2 (2x4) Fibre Optical switches connects optical channels by redirecting an incoming optical signal into a selected output fiber. The GEZHI Photonics Switch offers ultra-high reliability and fast switching speed as well as bi-directional performance. The MS fiberoptic switches are true switching solution for optical networking applications.
Application
Optical Netrwork Protection/Restoration
Optical Signal Routing
Configurable Optical Add/Drop
Transmitter and Receiver Protection
Network Test Systems
Instrumentation
Features
Unmatched Low Cost
Low Insertion Loss
High Channel Isolation
Highly Stable and Reliable
Epoxy Free Optical Path
Latching or Non-Latching
Pins
| Type | State | Optical Route | Electric Drive | Status Sensor | ||||||
| D1×2 | Pin 1 | Pin 5 | Pin 6 | Pin 10 | Pin 2-3 | Pin 3-4 | Pin 7-8 | Pin 8-9 | ||
| Latching | A | P1-P2 | -- | -- | GND | V+ | Close | Open | Open | Close |
| P1’-P2’ | ||||||||||
| B | P1-P3 | V+ | GND | -- | -- | Open | Close | Close | Open | |
| P1’-P3’ | ||||||||||
| Non-latching | A | P1-P2 | -- | -- | -- | -- | Close | Open | Open | Close |
| P1’-P2’ | ||||||||||
| B | P1-P3 | V+ | -- | -- | GND | Open | Close | Close | Open | |
| P1’-P3’ | ||||||||||
Specification
Parameters | GZ-D1×2 | ||
| Wavelength Range | nm | 850±40/1300±40 | 1260～1650 |
| Operating avelength | nm | 850/1300 | 1310/1490/1550/1625/1650 |
| Insertion Loss | dB | Typ:1.0 Max:1.5 | Typ:1.0 Max:1.5 |
| Return Loss | dB | MM≥30 SM≥50 | |
| Crosstalk | dB | MM≥35 SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Power Supply | v | 3.0 or 5.0 | |
| Lifetime | times | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20～+70 | |
| Storage Temperature | ℃ | -40～+85 | |
| Weight | g | 16 | |
| Dimension | mm | (L)27.0×(W)12.0×(H)8.2 | |
Optical Route
| Status A | Status B |
| |
Dimension
Order Information
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
S=SM | 85=850nm | 3=3V | L=Latching | 5=50/125 | 25=250um | 1=1m | 0=None |
