Climate Test Chamber for Glasses
- Guangzhou, China
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 25 days
You May Like
Product Details
| Brand Name | HAOTIAN | Place of Origin | China | |
| Model Number | SMC-225PF | Power | Electronic | |
| Usage | Auto Testing Machine |
Product Description

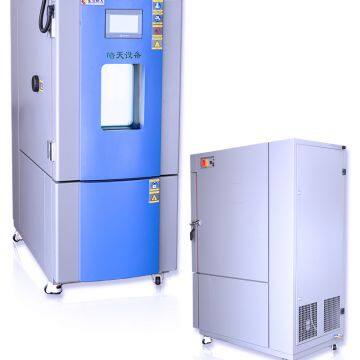

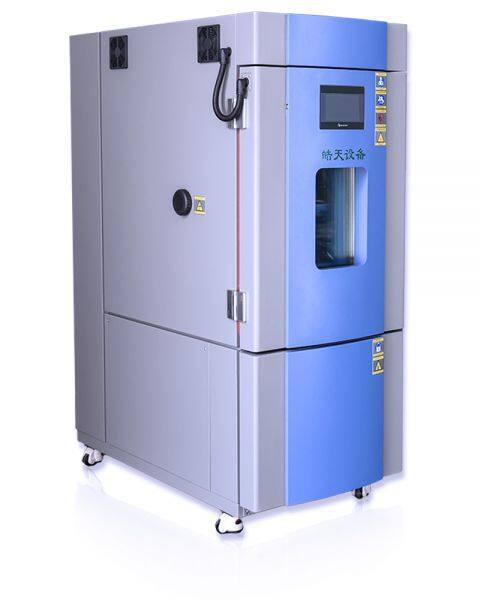

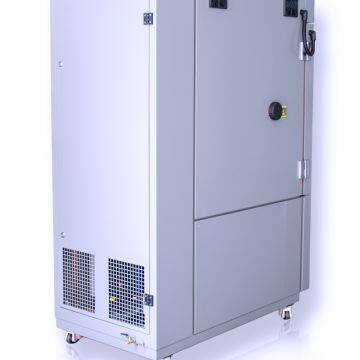

Climate test chamber for glasses
Product Description
The climate test chamber is designed to test glasses in different environment, such as high temperature, cold, dry and humidity resistance. It is used for quality control in electronics, electrical equipment, vehicles, metals, food, chemistry, building materials, bags, tapes, printing, packaging and other industries.
Product Feature
1. Small overall size, high thermal compensation, low noise, energy saving;
2. Directly display the cause of failure and the solution;
3. Intuitive curve interface with USB download function;
4. Electronic sensor, no need to hang wet cloth, high accuracy, low maintenance cost.
Specific Parameters
Performance | Temperature range | -40℃ ~ +150℃ | |||
Humidity range | 10%~98%RH | ||||
Indication resolution | 0.01℃, 0.1%RH | ||||
Deviation | ±1.0℃, ±2.5%RH | ||||
Heat up time | About 30min from +20℃ to +150℃ | ||||
Cooling time | +20℃ ~ -20℃≦30min | +20℃ ~ -40℃≦55min | +20℃ ~ -70℃≦75min | ||
Materials | Structural material | External: Anti-rust treatment cold rolled steel plate spraying; Internal: SUS#304/316 steel stainless. | |||
Insulating material | Rigid polyurethane foam with flame retardant. | ||||
Refrigerate system | Refrigerating method | France Tecumseh compressor +Finned type all copper evaporator + air cooled condenser | |||
Cooling agent | The United States Dupont HFC series environmental refrigerant: R404A, R23. | ||||
Compressor refrigerating capacity | 5/8P | 3/4P | 1P | 1.5P | |
Controller | Import TEMI series 7” touch screen temperature humidity instrument | ||||
Electrical apparatus element | The France Schneider industrial control products | ||||
Electronic control | Heating/humidifying | Nickel complex heater/SUS#304 jacket type humidifier | |||
Circulation fan | Macro-axis motor + Steel stainless wind rotor | ||||
Fault alarm devices | |||||
Water quality | Pure /deionized water | ||||
Power | AC 1Φ 220V 50/60Hz, AC 3Φ 380V 50/60Hz | ||||
Max. Current (AC 220V) | 12.5A | 13.0A | 14.0A | 14.5A | |
Others | Specimen holder *2pcs, Leas hole silicone plug *1pcs, Toughened defogging glass *1pcs. | ||||
Customization | Customized according to customers’ requirements are available. | ||||
Packing & shipping
1. The whole machine is completely clean.
2. Packing with stretch film to keep clean.
3. Then use paper beads to ensure safety.
4. Then use bubble bag for double protection.
5. Finally, it is packed in fumigated wooden cases.
6. Ship by sea, air, train.

Can support the humidity from 20% to 98% In the temperature range of + 10 to 85 , to maximize the simulation of the atmospheric environment can design a variety of tests ( Temperature Humidity Stability Is+ 0.3 C / + 0 . 3 % , With Uniformity + 1 C / 5 % ).
RFQ
1. If my product fails, how do you provide a solution?
Our engineers will analyze your questions, and we can set up a team through videophone, Wechat, Skype and WhatsApp to guide you to solve problems step by step. At the same time, we will provide complete instructions, circuit diagrams, freezing diagrams, structure books and fault analysis solutions; if you need our engineers to repair, you only need to provide tickets and accommodation.
