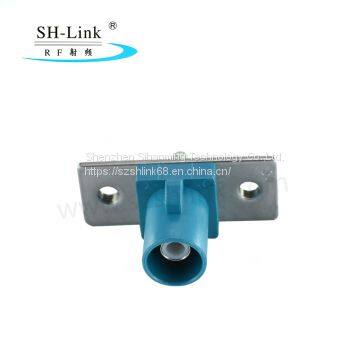

Delock FAKRA Z lug spring pin for soldering 2 prepunched holes SHM.900.0006-4.Z
- 500000000 Piece / Pieces per Month
- shenzhen
- T/T
- 3 days
You May Like
-
Fakra I Male Thru Hole 4 PCB Solder Right Angle Connector SHM.900.0002-1.I
-
Car GPS Fakra C Male Blue Right Angle End Launch PCB Connector
-
SMA Male Crimp Solder Connector for RG58 LMR-195 RG142 Cable
-
RF Coaxial SMB Female Jack Crimp Right Angle Connector for BT3002 Cable
-
Favourable price SMC cable coaxial connector
-
RF Coaxial Connector SSMB Coaxial Solder 50 ohm for RG174 RG316 cable
Product Description
Delock FAKRA Z lug spring pin for soldering 2 prepunched holes SHM.900.0006-4.Z
FAKRA connector is one of the auto parts. They are widely used in GPS, Remote control, car phone, car TV, hi-fi equipment, antennas, etc. It is mate with the same colors or FAKRA Male Connector With Spring and socket, and the structure is to be double-locked and fool-proofing for them
Major characteristics:
Double-locked, fool-proofing assembly with the color and the structure
The connector is be protected by the cap .
Easy to assembly
Many difference between the connector and the cap.
The product technical characteristics:
Body: Brass, Ni-plated
Socket: beryllium-copper, Gold-plated
Pin contact: Brass
Insulator: PTFE
Crimp ferrule: brass, Ni-plated
O-ring: beryllium-copper
Shell: PA66+30%GF
Sihanming Delock FAKRA lug spring pin Technical characteristics
Impedance: 50Ω
Frequency Range: 4GHz
Withstanding Voltage: 1000V(RMS)
Contact resistance:
Center contact: ≤ 20m
Outer contact: ≤10m
Insulation: ≥1,000MΩ
VSWR: DC - 2GHz<1.2
Sihanming Car TV Fakra Male Right Angle Connector Mechanical characteristics:
Assembly: locked
Durability: ≥ 500 cycles
Temperature: - 40 - +85°C
