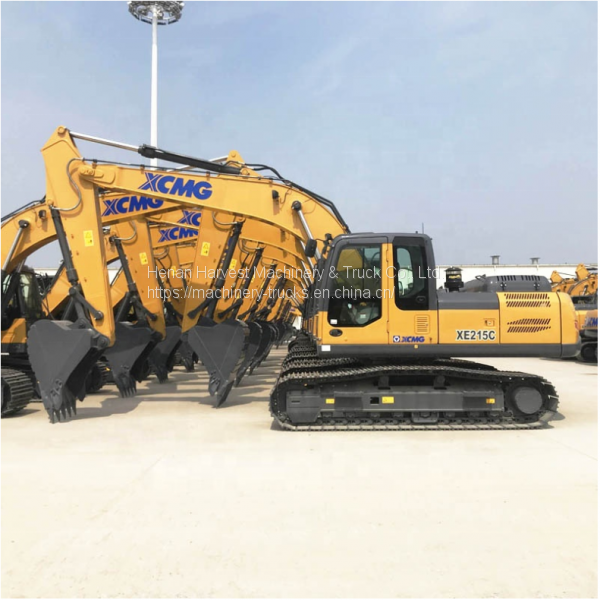

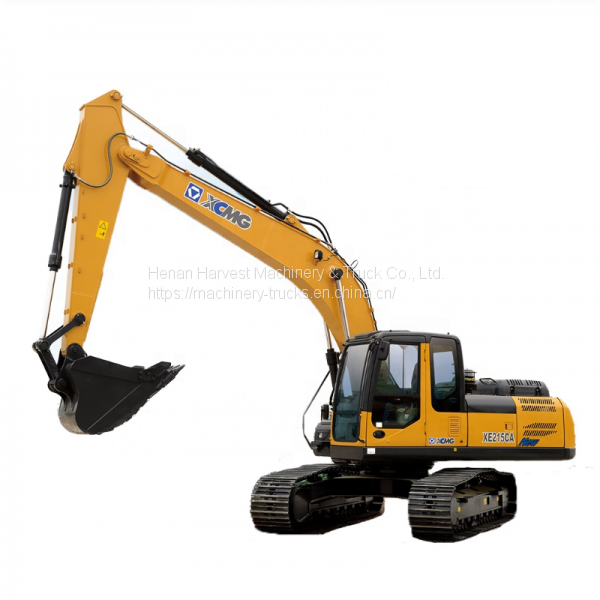

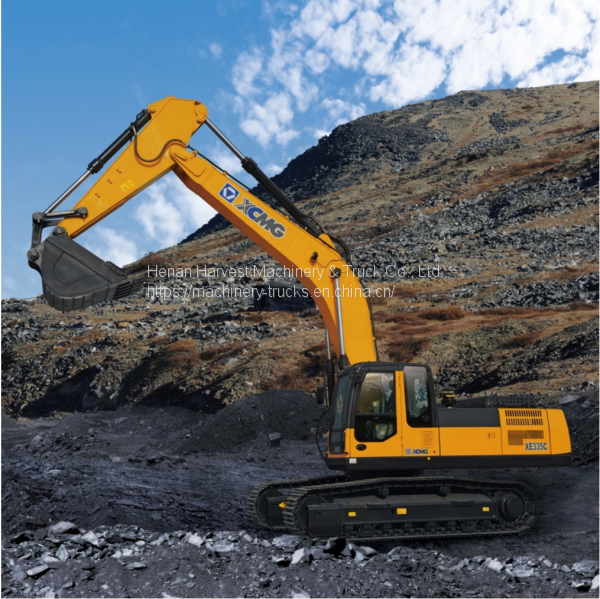

Xcmg Excavator 215 XCMG EXCAVATOR 20ton 23ton 26 Ton 30ton 36ton

Bucket capacity

m3

0.8-10

Engine

Engine model

/

ISU BB-68G1TRP

Direct injection

/

√

4×Strokes

/

√

Water cooling

/

√

Turbocharging

/

√

Cylinders

/

6

Output power of engine

Kw/rpm

106.5/1950

Max.torque/engine

N.m/rpm

551/1600

Displacement

L

6.494

Mian pertormance

Travel speed

km/h

5.5/3.3

Slewing speed

r/min

13.3

Gradient capability

°

≤35°

Ground pressure

kPa

45.5

Digging capacity of tcuket

kN

138

Digging capacity of tcuket rod

kN

103

Max.traction

kN

184

Hydraulic system

Main pump

/

Tow plunger pumps

Rated flow of main pump

L/min

2×206

Pressure of main safety valve

Mpa

31.5/34.3

Pressure of traveling system

Mpa

34.3

Pressure of swing system

Mpa

28

Pressure of pilot system

Mpa

3.9

Oil volume

Fuel tank capacity

L

360

Hydraulic tank capacity

L

220

Engine oil volum

L

25

Apperance size

A Total length

mm

9525

B Total width

mm

2990

C Total heigth

mm

3000

D Width of rotary table

mm

2710

E Length of track

mm

4270

F Total width of chassis

mm

2990

G Width of track

mm

600

H Wheelbase of track

mm

3462

I Track gauge

mm

2390

J Counterweight ground clearance

mm

4050

K Min.ground clearance

mm

470

L Min.tail swing radius

mm

2750

Working scope

A Max.digging height

mm

9640

B Max.unloading height

mm

6800

C Max.digging depth

mm

6655

D Digging depth at the range of 8feets horizontally

mm

6470

E Max.vertical digging depth

mm

5695

F Max.digging radius

mm

9925

G Max.swing height

mm

3530

Standard configuration

Boom length

mm

5680

Length of bucket rod

mm

2910

Bucket capacity

m3

0.93

Optional counfiguration

Length of bucket rod

mm

2530

Bucket capacity

m3

1.0Earthmoving bucket

0.8Rock bucket
