50ton XCMG QY25K QY50k QY70k QY100k Truck Crane Best Price

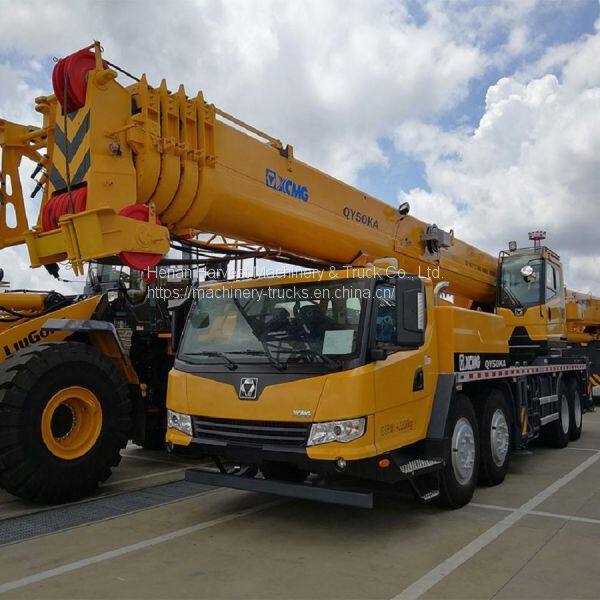

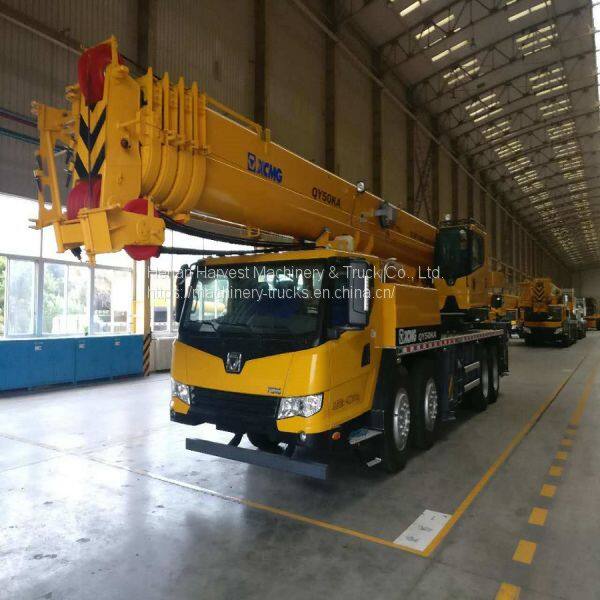

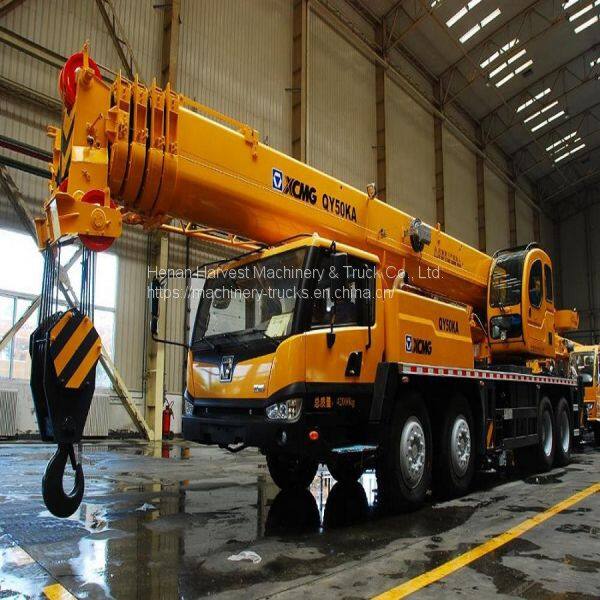

Hot Sale XCMG 58m QY50KA Truck Crane 50 Ton Hydraulic Mobile Crane

Main parameters

Max. rated total lifting capacity:50T
5 sections "U" type main boom : 42.7M
Fully extended boom+jib:57.7M
Main configuration
*WD615.338(276 kw)
* Wire rope
* Hirschmann PAT
*Heater
*Full dimension cab
*A/C

Features

XCMG QY50KA is the most popular model of China 50t truck crane, structure is compact, the industry operating performance is the highest.

Lifting performance and driving performance of a comprehensive upgrade, leading competitors.Dual-pump confluence technology, operating efficiency of a comprehensive lead.
Critical system reliability increases, job travel safer.Power shift, manipulation more light.The new upgrade appearance and user-friendly design, driving more comfortable manipulation.

1.Leading lifting anddriving performances

Five section U-type booms. The boom length is 11.4m-43.5m with strong lifting performance, leading 5%-10% ahead of products with the same tonnages in the same industry.

High-power engine with good dynamic performance, strong gradeability and superior trafficability. The maximum gradeability and maximum travel speed respectively are 42% and 85km/h.

2.Reliability ofheat dissipation, electrical system etc. has been improved with safer operationand driving

Waterproof connector clip. It is equipped with rubber sheath inside with excellent water impervious and level of protection reaches to IP65.

Aluminium alloy fuel tank. Good appearance quality, corrosion resistance, strong shock resistance capacity.

Double- broken line winch. The hoisting rope is in alignment, and it will be more reliable if turn off the press-rope machine.

Optimized heat-removal system. The air-conditioning condenser is separately installed, the heat-sinking capability is sharply improved and the environment temperature reached to more than 45℃.

3.Mature and reliabledouble-pump confluence technique, aintaining the advantages of efficientoperation

Special confluence multi-valve has been designed. The double-pump confluence technique is adopted in raising and falling of winch, extending and retracting of lazy boom and luffing, leading ahead of luffing and extending and retracting operations.

4.Air-aid shift gears and 45% of shifting forceis reduced

Special air-aid shift gears protection mechanism. The boost system will work only by stepping on the clutch that effectively avoids gearbox damaging gears when shifting. Compared with the same industry, 100mm distance of shift gears and 45% of shifting force are respectively reduced.

5.Apearance molding isnewly upgraded, humanized design andcomfortable riding manipulation

New operating house, wheel house, engine hood and machine shed, novel appearances, fine lines of the complete machine appearance, shows its elegant appearance.

Inquiry Contact
Mob.(whatsapp&viber): 008615565877070, Email: harvestmachine071@gmail.com

Specification

Main Technical Data Table for Lifting Operation
