3 Way Automatic Valve Brass 1/8 Inch
- Ningbo
- T/T Credit Card
You May Like
Product Details
| Brand Name | 3 way automatic valve | Place of Origin | Zhejiang, China | |
| Model Number | PT ,PV series | Material | Brass | |
| Structure | Control | Standard or Nonstandard | Standard | |
| Pressure | Medium Pressure | Power | Solenoid | |
| Port Size | 1/8" 1/4" 3/8" 1/2" 1" 2" | |||
| Temperature of Media | Medium Temperature |
Product Description

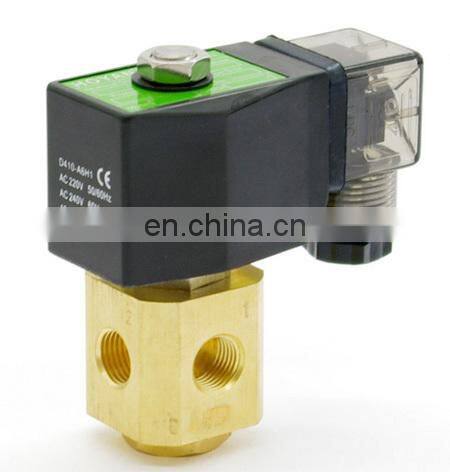

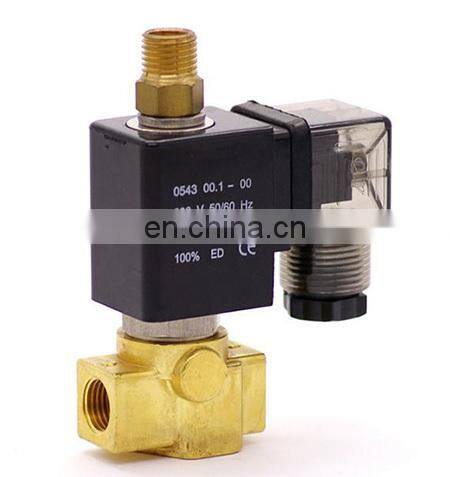

3 way automatic valve brass 1/8 inch
1. Normally closed ;
2. Normally open ;
3. Commonly .
Specification
| Pattern: | Three-port two-position | |||
| Principium: | direct acting type | |||
| Control mode: | General Purpose ,normally close ,normally open | |||
| Valve body: | brass ,stainless steel | |||
| Diaphragm material: | NBR: ≤80°C ,FKM≤150°C | |||
| Working pressure: | 0~16bar | |||
| Max pressure: | 16bar | |||
| Voltage: | AC220V AC110V DC12V DC24V | |||
| Medium: | Air ,water ,Liquid ,oil ect. | |||
| Application: | Single acting air cylinder, test equipment small-flow ,oil control system | |||
| Model | Pipe | Orifice Diameter(mm) | Principium | CV | Body material | Seal | Work Pressure |
| PT-M02 | 1/8" 1/4" | 1.5 | direct acting | 0.07 | Brass , SS304 | NBR,FKM | 0-13bar |
| PT-M03 | 1/8" 1/4" | 2.5 | 0.21 | NBR,FKM | 0-9bar | ||
| PT-03 | 1/8" 1/4" | 4 | 0.35 | NBR,FKM | 0-3bar |

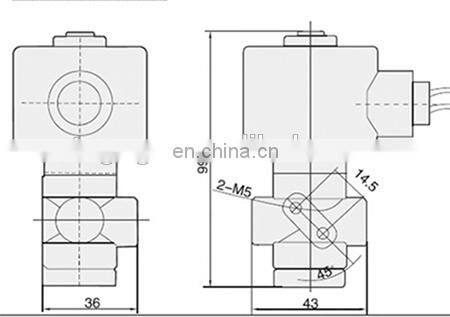

Dimensions
(mm)
| Materials of construction | |||
| Parts in contact with the medium | |||
| Valve of body | Brass | SS304 | |
| Seals | NBR ,FKM | ||
| Magnetic isolation pipe | SS304 | ||
| Core | Stainless steel alloy | ||
| Spring | SS304 | ||
| The shading | Copper | ||

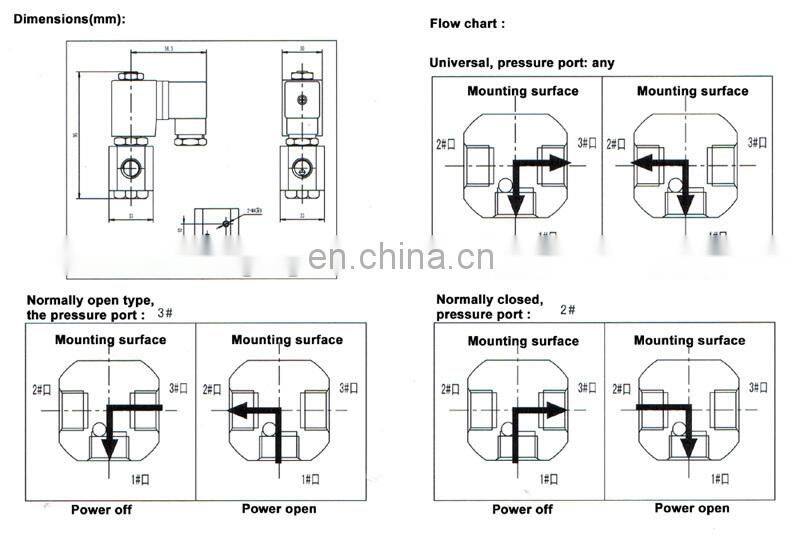

Working principle

Packing
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
