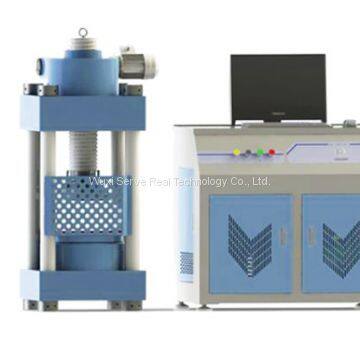

2000KN 3000KN Computerized compression testing machine
- SHANGHAI, SHENZHEN,NINGBO, QINGDAO
- T/T PayPal Other
- 10 days
You May Like
Product Details
| Brand Name | SRI | Place of Origin | China | |
| Model Number | CTM-2000E/3000E |
Product Description
Description
This machine is mainly used for mechanical test of concrete and construction material. The whole test process will be controlled and indicated by computer, computer also can record, storage, automatic print test report. It’s kind of advanced compression testing machine
Technical specifications
Term | Spec. | |
Max. Capacity | 2000KN | 3000KN |
Testing range | 0~2000KN | 0-3000KN |
Indication value relative error | ±1% | ±1% |
Bearing platen size | 260mm×320mm | 340mm×340mm |
Upper lower platen max distance | 320mm | 320mm |
Piston max. Stroke | 50mm | 50mm |
Piston diameter | ?250mm | ?310mm |
Hydraulic pump rated pressure | 40MPa | 40MPa |
Power | 0.75kW, 3-phase | |
Overall size | 1100mm×700mm×1550mm | 1160mm×700mm×1650mm |
Net weight | Approx. 900kg | 1500kg |
