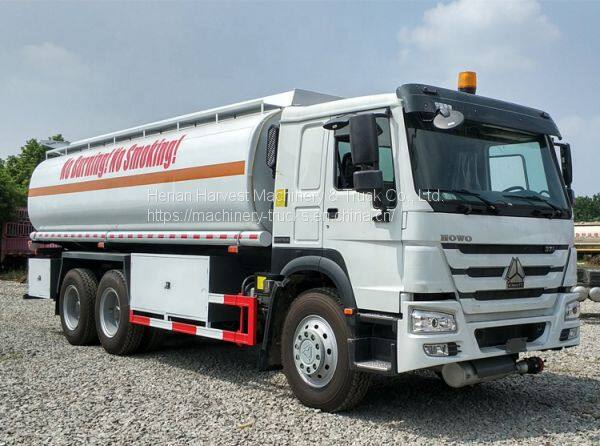

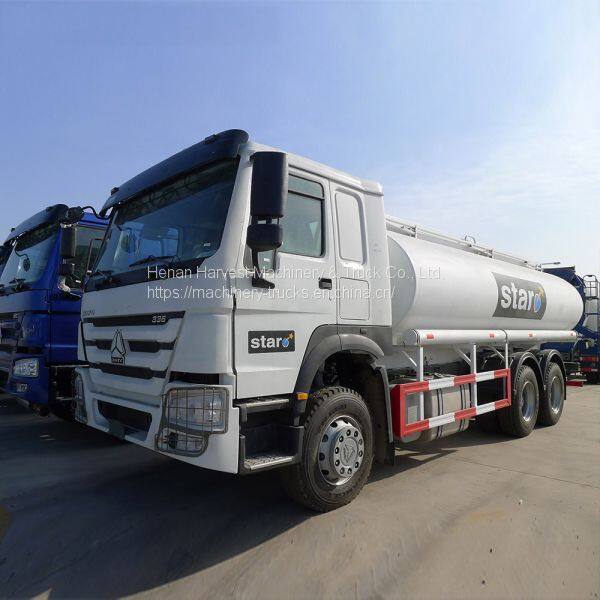

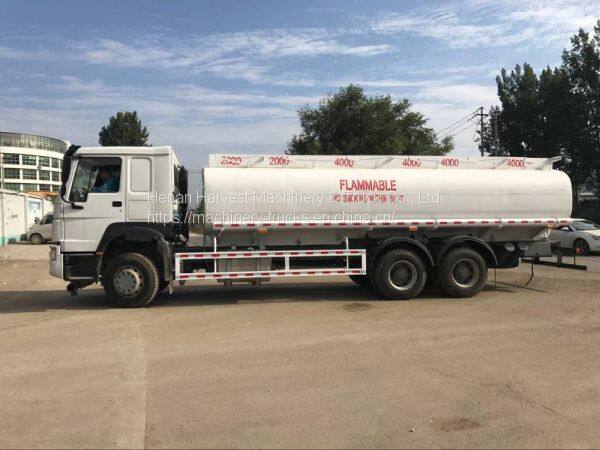

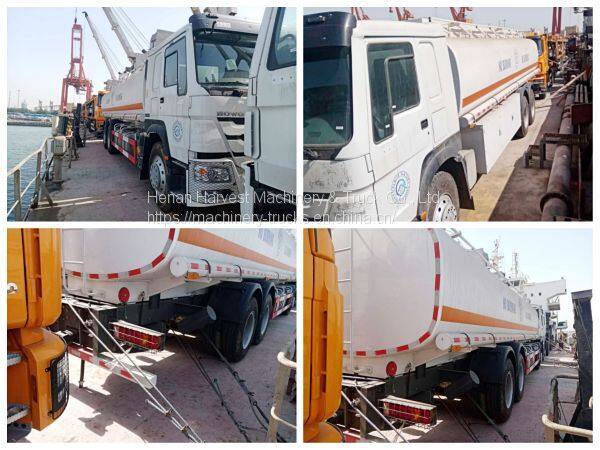

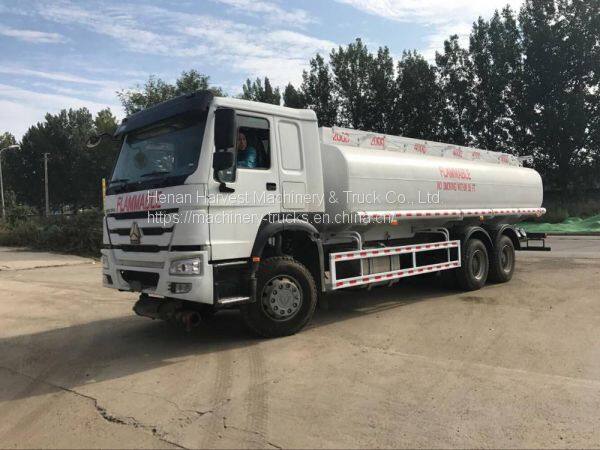

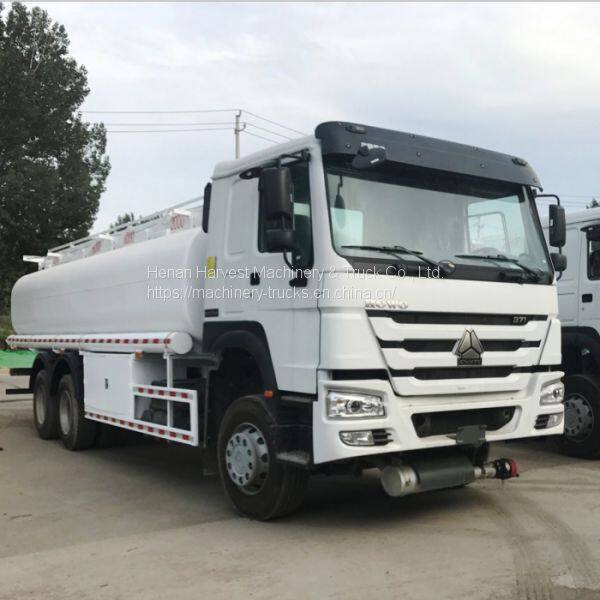

Sinotruk Howo 25000 Liters Diesel Oil Capacity Fuel Tank Tanker Truck

Cabin

HW76 Long Cabin, with two seats and one bed, with Air Conditioner and electric window.

Engine

Model

WD615.69

Horse Power (Hp/rpm)

336/2200, Euro II Emission Standard

Max.Toruqe(Nm/rpm)

1350/1100-1600

Displacement             L

9.726

Type

6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine

Transmission

HW19710, 10 speeds forward and 2 reverse

Front Axle

HF9, Steering with double T-cross section beam, Loading Capacity: 9,000kgs

Driving Axle

HC16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8 Option: 4.42

Suspension

Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer

Steering System

ZF8118, Hydraulic steering with power assistance

Brake System

Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake

Tire

12.00R20/12R24/12R22.5

Fuel Tank Capacity (L)

400L Diesel Tank

Kurb Weight (kg)

12,000

Loading Capacity (kg)

29,000

Gross Vehicle Weight (kg)

41,000

Overall Dimension(mm)

9800×2500×3210

Tank Capacity(L)

20,000

Tank Material

Carbon Steel

Wheelbase(mm)

4325+1350

Max. Speed (km/h)

                                     90
