Laboratory Equipment U L1278 Fig.9.1 PA160B Test Finger Trap

Aluminum specimen box+ carton box

Laboratory equipment UL1278 Fig.9.1 PA160B Test Probe

Laboratory equipment UL1278 Fig.9.1 PA160B Test Probe

UL  PA160B Test Probe

Article NO.:BND-PA160B

Specification:

PA160B Test Probe, UL Test Probe

1, According to : UL1278fig,UL1026 and UL507

2, PA160B Test Probe/ UL Test Probe Is for household and similar electrical appliances necessary protection against electric shock test apparatus.

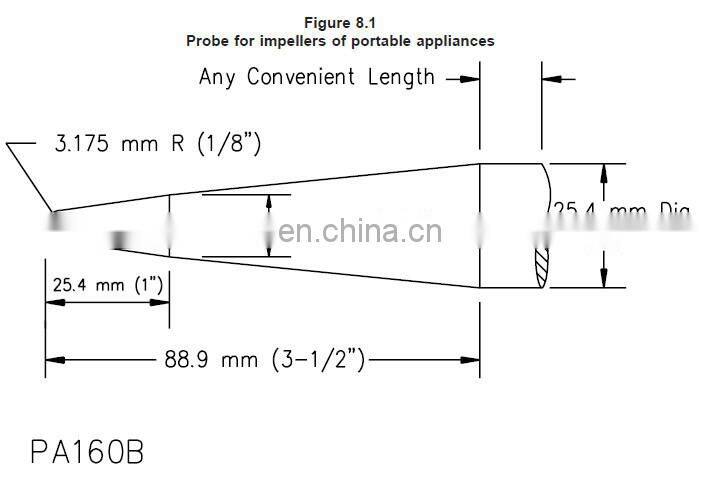

Technical Parameters:

1, Total Length :88.9mm(3.5 inch)

2, Head Length :25.4mm(1 inch)

3, Head Radius: R 3.175mm(1/8 inch)

4, Former Head Diameter:12.7mm(1/2 inch)

5,Tail Diameter :25.4(1 inch)

6, Reference standards :UL507 (PA160B), figure 132.1 UL1278 figure 9.1 (PA160)

Application:

According to different standard, the method of use is slightly difference. .This probe conforms to standard requirement of UL507 Fig 8.1(PA160B) and UL1278 Fig 9.1(PA160). It is used for testing accessibility to hazardous moving parts such as access to fan blades through a fan finger guard. The handle is made of nylon while the finger is made of stainless steel. The end of the handle is with threaded hole which can be equipped with the dynamometer.UL Test Probe can not touch the hazardous parts. In most case, it needs to exert certain 4.4 N (1 lb)

Note:

 UL test Probe are used for precision machinery products, please take and put down gently, and safe keeping

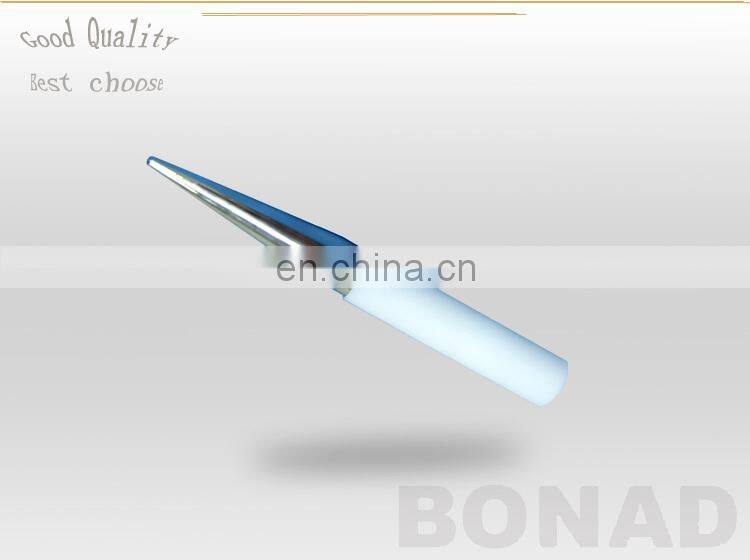

Product picture:
