PA100 Joint Finger Probe test finger in testing equipment
- 100 Piece / Pieces per Month
- Shenzhen China
- T/T Credit Card
You May Like
Product Details
Brand Name | BONAD, BONAD | Place of Origin | Guangdong, China | |
Model Number | BND-PA100, BND-PA100 |
aluminum box +carton box
Product Description

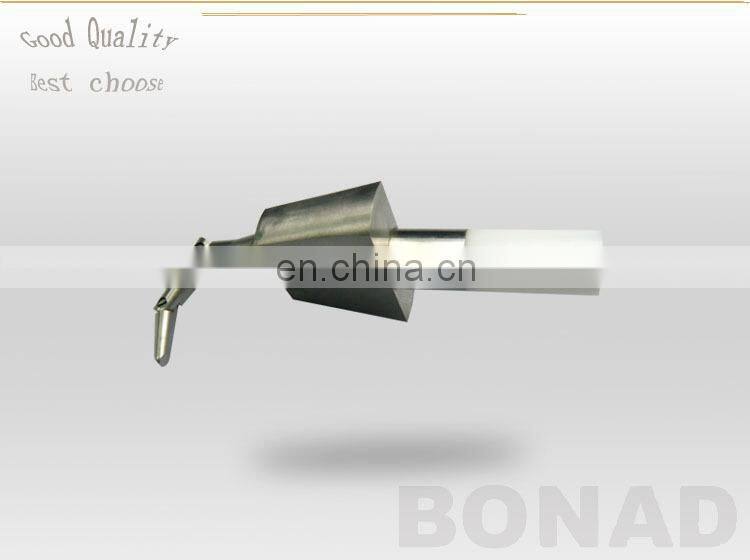

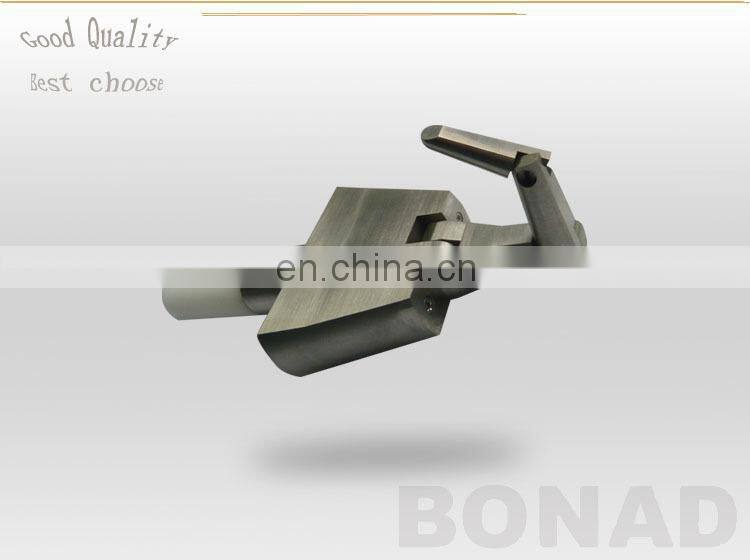

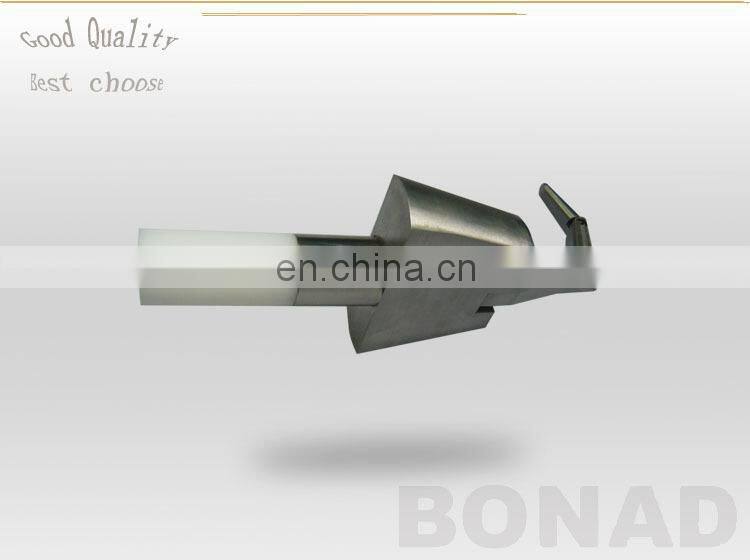

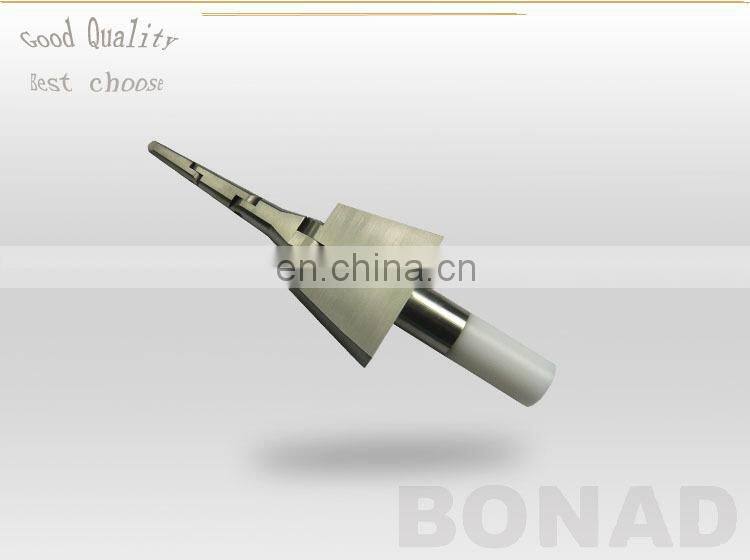

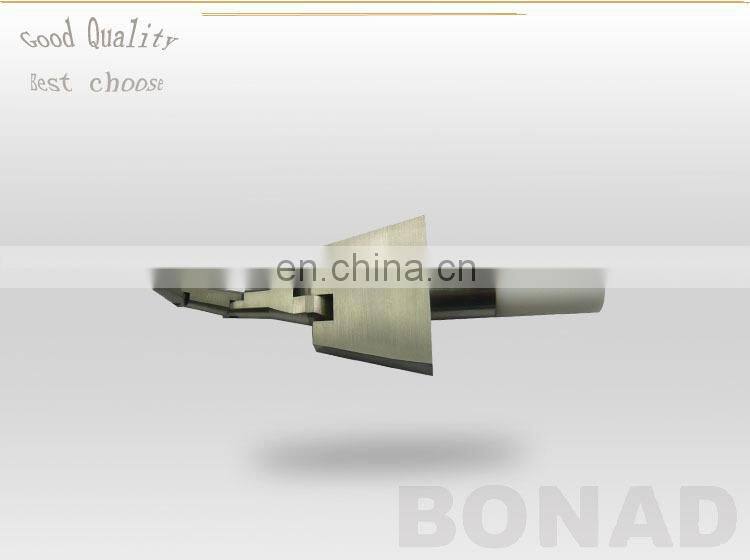

PA100 Joint Finger Probe ul test finger in testing equipment
Articulated UL Finger Probe/ PA100A Test Knurled Finger Probe
in accordance with UL-norm UL 153, UL 197, UL 507, UL 1026, UL 1082
Access probe to assess protection of persons against access to dangerous parts in accordance with UL norm.The joint parts and also the stop surface are made of high-grade steel. The handle consists of polyamide. The links can be positioned at a right angle.
A 4 mm receptacle is integrated at the handle, which is conductively connected to the fi nger probe.
Specification:
UL Test Bent Finger Probe/ PA100A Test Bent Finger Probe
1, According to : UL507 (PA100A), UL1017 figure 2, figure 6.5 UL1062, UL982 figure 7.1 and figure 1.2 UL474 figure 5.1 and figure 14, UL60065 UL6500 figure 14, Figure 7.2 and figure 8.3 UL1278 UL1082
2, Mainly used for the inspection to prevent the body touch dangerous live parts,heating or hot parts, mechanical components, as well as inspection of solid foreign bodies into the equipment. It is necessary for protection against electric shock test of household and similar electrical appliances
3,This is the "UL" test finger, researched and designed by UL and required by most UL Standards. Palm simulator and restricted joint movement simulates human finger movement. Made of all nylon. Bell-Core accessory available.The handle is made of nylon. The finger is made of stainless steel.
Test finger length | 234mm |
Knurled length | 30/30/40mm |
Material | stainless steel and nylon |
Reference | UL507,UL982,UL1278,UL1062,UL1310,UL474,UL60065 |
