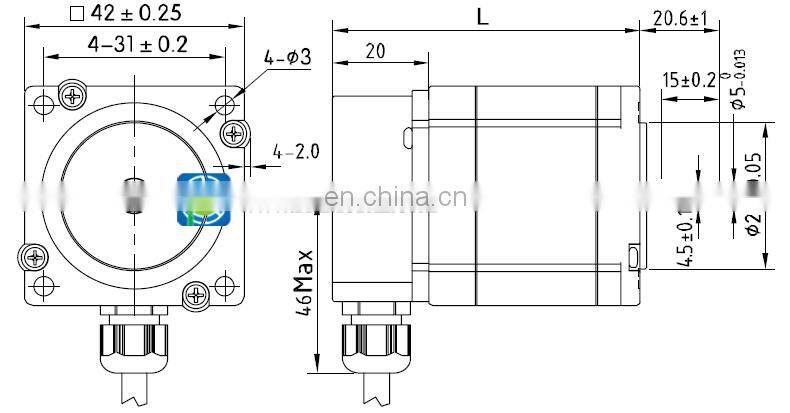

Waterproof 42mm NEMA 17 Stepper Motor for Waterjet CNC Routers
US$ 8 - 15
/ Piece
1 Piece(Min. Order)
- Shanghai Ningbo Shenzhen
- T/T Credit Card
You May Like
-
NEMA 8 Mini External Linear Stepper Motor for 3d Printer
-
High Precise Non-captive NEMA 34 Linear Stepper Motor for Pump
-
IP54 High Torque Waterproof Stepper Motor for Dusty Enrivonment
-
Water-proof NEMA 17 Stepper Motor for Warm House, IP54 Rated !
-
High Power NEMA 17 IP54 Stepper Motor for Waterjet Grinder
-
20mm External Linear Stepper Motor for Medical Equipment
Product Details
| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PHP42S Series | Type | Hybrid | |
| Phase | 2 | Certification | CE, ISO, ROHS, UL | |
| Current / Phase | Variable, can be custom |
Product Description
PHP42S series hybrid stepper motors are supplied by one of the China's top stepper motor suppliers (PrimoPal Motor), which are very popular in the market. These NEMA 17 waterproof stepper motor with 1.8° step angle (200 steps/revolution) are made of high-quality cold rolled steel sheet, anti-high temperature permanent magnet and special process for waterproof seal. The body length of PrimoPal's NEMA 17 IP54 rated stepper motors ranges from 48mm to 56mm, and the holding torque could be as high as 54N.cm (76oz-in). These high-performance and high-reliability water-proof NEMA 17 stepper motors are terminated with four flying ended lead wires, and could be easily connected to the constant current or chopper drive controllers.
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80 °C Max.(rated current, 2 phase on) |
| Ambient Temperature | -20 °C ~ +50 °C |
| Insulation Resistance | 100 MΩ Min., 500VDC |
| Dielectric Strength | 500 VAC for one minute |
| Shaft Radial Play | 0.02 Max. (450 g-load) |
| Shaft Axial Play | 0.08 Max. (450 g-load) |
| Model | Current | Resistance | Inductance | Holding Torque | Rotor Inertia | Bi/Unipolar | Weight | Length |
| A/Ø | Ω/Ø | mH/Ø | N.m | g.cm2 | # of Leads | kg | mm | |
| PHP42S48-412 | 1.2 | 2.8 | 2.8 | 0.3 | 34 | Bi (4) | 0.35 | 48 |
| PHP42S56-412 | 1.2 | 3.5 | 5.5 | 0.54 | 68 | Bi (4) | 0.5 | 56 |
Note: We also could manufacture the custom stepper motors, according to the customer's requirements.
