1.2 Degree 48V 3 Phase Nema 42 Tool Strong Meter Permanent Magnet Square Stepper Motor for 3d Printer Sewing Machine
- Shanghai Ningbo Shenzhen
 - T/T Credit Card

You May Like
-


IP65 2 Phase NEMA 23 Stepper Motor for Waterjet Engraver
 -


High Torque NEMA 34 Waterproof Stepper Motor for Waterjet Engraver
 -


High Precise Non-captive NEMA 11 Mini Linear Stepper Motor
 -


Waterproof 42mm NEMA 17 Stepper Motor for Waterjet CNC Routers
 -


NEMA 8 Mini External Linear Stepper Motor for 3d Printer
 -


High Precise Non-captive NEMA 34 Linear Stepper Motor for Pump

Product Details
| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PHB110T Series | Type | Hybrid | |
| Phase | 3 | Certification | CE, ISO, ROHS, UL | |
| Current / Phase | Variable, can be custom |
Product Description

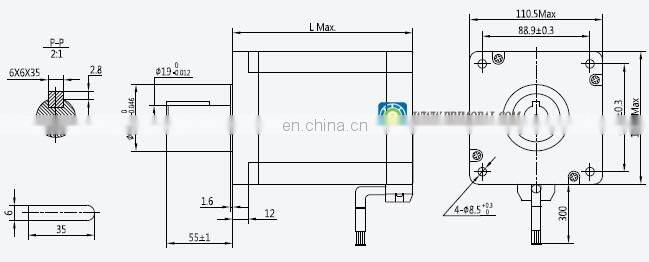

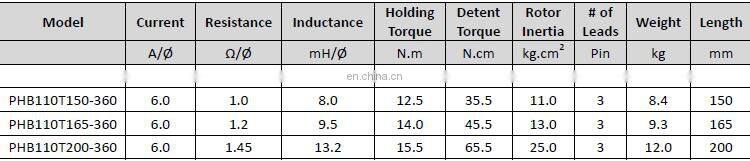

PHB110T series hybrid stepper motors are supplied by one of the China's top stepper motor suppliers (PrimoPal Motor). These NEMA 42 square stepper motor with 1.2° step angle (300 steps/revolution) are made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet. The body length of PrimoPal's NEMA 42 stepper motors ranges from 126mm to 200mm, and the holding torque could be as high as 1,550N.cm (2,190oz-in). These high-performance and high-reliability NEMA 42 stepper motors are terminated with three or six flying ended lead wires, and could be easily connected to the constant current or chopper drive controllers.
| Step Angle | 1.2° |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80 °C Max.(rated current) |
| Ambient Temperature | -20 °C ~ +50 °C |
| Insulation Resistance | 100 MΩ Min., 500VDC |
| Dielectric Strength | 1800VAC, 1s, 5mA |
| Shaft Radial Play | 0.02 Max. (450 g-load) |
| Shaft Axial Play | 0.08 Max. (450 g-load) |
Note: We also could manufacture the custom stepper motors, according to the customer's requirements.
