0.36 degree high resolut can stack low power floor electricon scanner ping nema 16 stepper motor for robot 3d printer
USD $5 - $7
/ Piece
1 Piece(Min.Order)
- 200000 Piece / Pieces per Month
- Shanghai Ningbo Shenzhen
- T/T Credit Card
You May Like
-
0.9 degree supplier light bipolar robot rotary table auto set nema 16 stepper motor for 3d printer 4 axi laser
-
0.9 degree short 2 phase 4 wire micro robot arm cnc hybrid electric nema 16 stepper motor for 3d printer
-
0.72 Step Angle 5 Phase NEMA 34 Stepper Motor
-
5 Wire NEMA 34 Stepper Motor for Industrial Printer
-
5 Phase NEMA 34 Stepper Motor for Automatic Welding Machine
-
0.9 Degree 2 phase NEMA 17 stepper motor for Makerbot
Product Details
| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PHB39G Series | Type | Hybrid | |
| Phase | 5 | Certification | CE, ISO, ROHS | |
| Current / Phase | Variable, can be custom |
Product Description

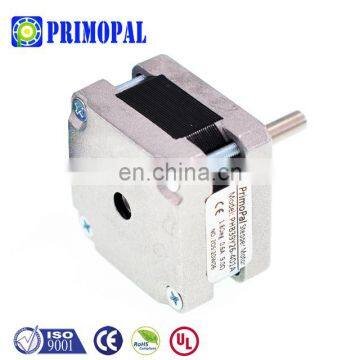

PHB39G series hybrid stepper motors are supplied by one of the China's top stepper motor suppliers (PrimoPal Motor). These NEMA 16 square stepper motor with 0.36° step angle (1,000 steps/revolution) are made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet. The body length of PrimoPal's NEMA 16 stepper motors ranges from 31mm to 40 mm, and the holding torque could be as high as 13.5N.cm (19.1oz-in). These high-performance and high-reliability NEMA 16 stepper motors are terminated with five flying ended lead wires, and could be easily connected to the constant current or chopper drive controllers.
| Step Angle | 0.36° |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80 °C Max.(rated current, 2 phase on) |
| Ambient Temperature | -20 °C ~ +50 °C |
| Insulation Resistance | 100 MΩ Min., 500VDC |
| Dielectric Strength | 500 VAC for one minute |
| Shaft Radial Play | 0.02 Max. (450 g-load) |
| Shaft Axial Play | 0.08 Max. (450 g-load) |
Note: We also could manufacture the custom stepper motors, according to the customer's requirements.
