1.2 Degree Hybrid Router Electric Manufacture Electric Cnc Auto China Nema23 Step Motor for Micro Cutter Wire Cut Machine
US$ 4 - 8
/ Piece
1 Piece(Min. Order)
- Shanghai Ningbo Shenzhen
- T/T Credit Card
You May Like
-
NEMA 23 Square Stepper Motor for Textile Machine
-
1.2 Degree China Floor 57bygh76hybrid Accuracy Bulk Scanner Ping Micro Heavy Duty Supplier 100mm Nema23 Stepper Motor for 3d Pri
-
0.9 Degree 2 Phase Hybrid Unipolar Cutting Machine Permanent Magnet Nema 17 Stepper Motor for Laser Cnc Hybrid
-
0.9 Degree Scanner Can Stack High Quality Manufacture Nema 17 Stepper Motor for Laser Light 3d Printer 5 Axi Cnc Router
-
1.2 Degree dc Electric Solar Tracker Bipolar Longauto 0.9 57mm Delta cw Scanner Arduino Rpm Set for Solar Tracker 3d Printer Cnc
-
0.9 Degree Auto Stepping Manufacture Micro 2 Phase Router Nema 17 Stepper Motor for Axi
Product Details
| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PHB57T Series | Type | Hybrid | |
| Phase | 3 | Certification | CE, ISO, ROHS, UL | |
| Current / Phase | Variable, can be custom |
Product Description

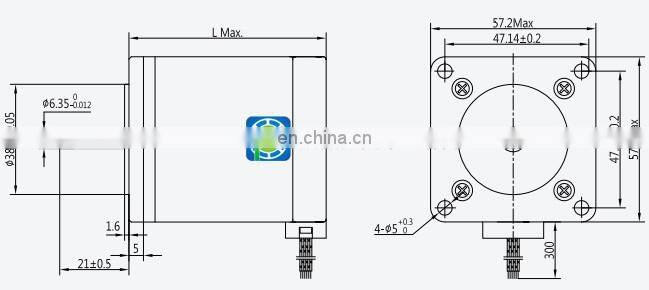

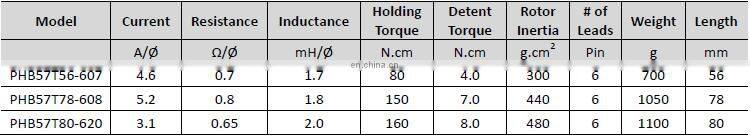

PHB57T series hybrid stepper motors are supplied by one of the China's top stepper motor suppliers (PrimoPal Motor). These NEMA 23 square stepper motor with 1.2° step angle (300 steps/revolution) are made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet. The body length of PrimoPal's NEMA 23 stepper motors ranges from 56mm to 80mm, and the holding torque could be as high as 160N.cm (226oz-in). These high-performance and high-reliability NEMA 23 stepper motors are terminated with three or six flying ended lead wires, and could be easily connected to the constant current or chopper drive controllers.
| Step Angle | 1.2° |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80 °C Max.(rated current, 2 phase on) |
| Ambient Temperature | -20 °C ~ +50 °C |
| Insulation Resistance | 100 MΩ Min., 500VDC |
| Dielectric Strength | 500 VAC for one minute |
| Shaft Radial Play | 0.02 Max. (450 g-load) |
| Shaft Axial Play | 0.08 Max. (450 g-load) |
Note: We also could manufacture the custom stepper motors, according to the customer's requirements.
