High Quality Speed Quiet Micro Unipolar Accuracy Can Stack Delta 1.8 Degree 24v Nema8 Stepper Motor Supplier
US$ 6 - 6
/ Piece
2 Pieces(Min. Order)
- Shanghai Ningbo Shenzhen
- T/T Credit Card
You May Like
-
Strong Thin Instrument 2 Phase dc Hybrid Cnc Plasma Square 5 Axi Cnc Stepper Motor Nema 11 for Ptz 3d Printer
-
2 Phase Square dc 1.8 Degree 24v Micro Step Hybrid Electric High Accuracy Nema 11 Stepper Motor for Laser Light
-
1.8 Degree Nema 14 Stepper Motor for Wholesale
-
High Power Nema 14 Stepper Motor for PTZ Camera
-
Heavy Duty Precision Bulk and Silent Bipolar Strong 1.8 Degree 24v Motion Square Nema 14 Stepper Motor Rotary Table and Cost
-
High Quality Speed Quiet Silent Accuracy Unipolar Accuracy Can Stack Delta 1.8 Degree 24v Nema 10 Stepper Motor Supplier
Product Details
| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PHB20Y Series | Type | Hybrid | |
| Phase | 2 | Certification | CE, ISO, ROHS, UL | |
| Current / Phase | Variable, can be custom |
Product Description

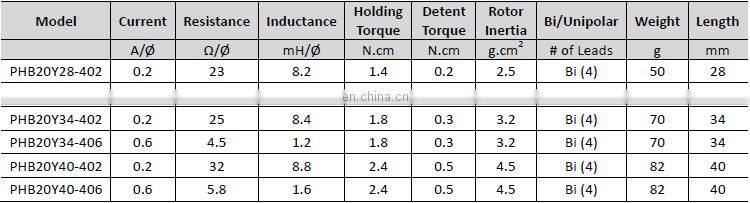

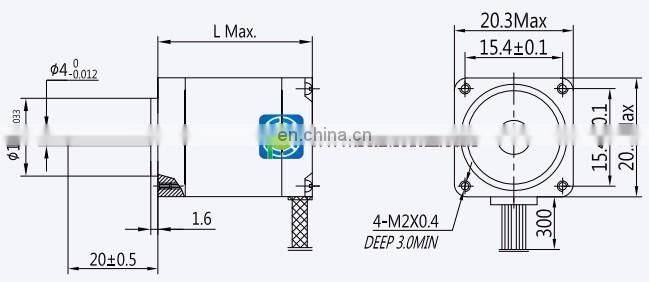

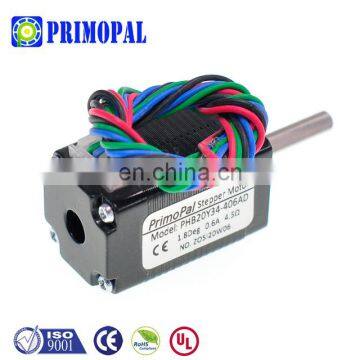

PHB20Y series hybrid stepper motors are supplied by one of the China's top stepper motor suppliers (PrimoPal Motor). These NEMA 8 square stepper motor with 1.8° step angle (200 steps/revolution) are made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet. The body length of PrimoPal's NEMA 8 stepper motors ranges from 28mm to 40mm, and the holding torque could be as high as 2.4N.cm (3.40oz-in). These high-performance and high-reliability NEMA 8 stepper motors are terminated with four or six flying ended lead wires, and could be easily connected to the constant current or chopper drive controllers.
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80 °C Max.(rated current, 2 phase on) |
| Ambient Temperature | -10 °C ~ +50 °C |
| Insulation Resistance | 100 MΩ Min., 500VDC |
| Dielectric Strength | 500 VAC for one minute |
| Shaft Radial Play | 0.02 Max. (450 g-load) |
| Shaft Axial Play | 0.08 Max. (450 g-load) |
Note: We also could manufacture the custom stepper motors, according the customer's requirements.
