hybrid 1.8 degree step angle high precision NEMA 17 42 closed loop stepper cnc servo motor milling machine
US$ 23 - 56.2
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
1.8 degree 1.96VAC 5.6A micro control high quality low price NEMA 34 easi closed loop stepper motor and driver
-
1.8 degree 3.08vac 5.6a 8.5n.m motion silent torque bipolar china nema 34 closed loop stepper motor with driver
-
1.8 degree 2.2v square silent torque bipolar cnc kit 5 axi instrument nema 34 12 nm close loop stepper motor with driver
-
1.8 degree 1.96VAC 4.5n.m dc hybrid bipolar control for sewing machine ac power hybrid stepper motor and driver
-
1.8 degree 5.6a 8.5n.m 3d printer wire cut machine close loop nema 34 stepper motor with encoder and driver
-
1.8 degree 5.6a silent rotary encoder optical solar tracker usb nema34 close loop stepper motor with driver
Product Details
| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PHSM42S48-402-210EC-JM | Type | Hybrid | |
| Phase | 2 | Certification | CE, ISO, ROHS, UL | |
| Current / Phase | Variable, can be custom |
Product Description
PrimoPal’s PHSM series hybrid servo motors offer an alternative for applications requiring high performance and high reliability when the servo system is the only choice, while it remains cost-effective. The internal encoder is used to close the position, velocity and current loops in real time, just like the servo system. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system. The PHSM series hybrid servo motors are currently available from NEMA 8 to NEMA 34 with holding torque from 0.4Nm to 12.0 Nm. All these hybrid servo motors are integrated with 2-channel and 1,000-line optical incremental encoders. Moreover, custom winding, motor length, shaft, encoder resolution and other mechanical modifications are also available.
| Step Angle | 1.8° |
| Phase | 2 |
| Rated Voltage | 3.06V |
| Rated Current | 1.7A |
| Resistance | 1.8 ohm±10% AT25℃ |
| Inductance | 3.2 mH±20% AT 1KHz, 1Vrms |
| Holding Torque | 52 N.cm Typ.(two phase on/ rated current) |
| Dielectric Strength | 500 VAC for one minute |
| Insulation Resistance | 100 MΩ min. |
| Insulation Class | Class B |
| Temperature Rise | 80 °C Max.(rated current, 2 phase on) |
| Rotor Inertia | 68 g.cm² |
| Weight | 0.35KG |

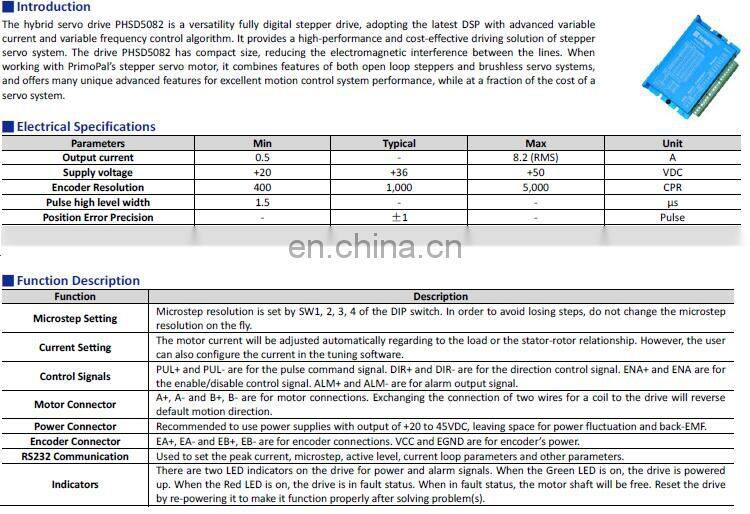

The Matched Driver PHSD5082 Specification:
