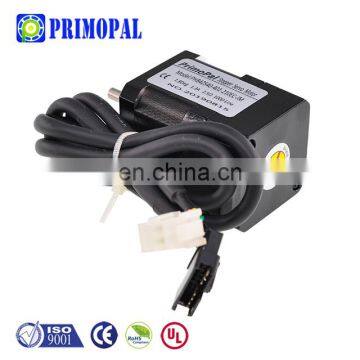

2phase 1.8 degree 1.7A 52N.cm shanghai lowprice close loop servo Hybrid stepper motor with driver
USD $23 - $56.2
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
-
2phase 1.8 degree 2.3A 70N.cm motion silent torque bipolar china nema17 close loop stepper motor with driver
-
2 phase Nema 42 1.8degree 4 wire 110mm length high quality and low price square stepper motor
-
1.8degree 4wire Nema34 2 phase 86mm length high quality stepper motor shaft options single D-cut
-
Nema34 1.8degree 4wire 2phase 86mm holding torque stepper motor for automatic welding machine
-
NEMA 8 1.8 degree 20mm 4 wires holding torque 2 phase stepper motor for Medical Equipment
-
NEMA 17 1.8 degree 28mm length 4 wires 2 phase hybrid stepper motor for ip camera and engraver
Product Details
| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PHSM42S48-402-210EC-JM/PHSD5082 | Type | Hybrid | |
| Phase | 2 | Certification | CE, ISO, ROHS, UL | |
| Current / Phase | Variable, can be custom |
Product Description
PrimoPal’s PHSM series hybrid servo motors offer an alternative for applications requiring high performance and high reliability when the servo system is the only choice, while it remains cost-effective. The internal encoder is used to close the position, velocity and current loops in real time, just like the servo system. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system. The PHSM series hybrid servo motors are currently available from NEMA 8 to NEMA 34 with holding torque from 0.4Nm to 12.0 Nm. All these hybrid servo motors are integrated with 2-channel and 1,000-line optical incremental encoders. Moreover, custom winding, motor length, shaft, encoder resolution and other mechanical modifications are also available.
| Step Angle | 1.8° |
| Phase | 2 |
| Rated Voltage | 3.06V |
| Rated Current | 1.7A |
| Resistance | 1.8 ohm±10% AT25℃ |
| Inductance | 3.2 mH±20% AT 1KHz, 1Vrms |
| Holding Torque | 52 N.cm Typ.(two phase on/ rated current) |
| Dielectric Strength | 500 VAC for one minute |
| Insulation Resistance | 100 MΩ min. |
| Insulation Class | Class B |
| Temperature Rise | 80 °C Max.(rated current, 2 phase on) |
| Rotor Inertia | 68 g.cm² |
| Weight | 0.35 KG |
The Matched Driver PHSD5082 Specification:
