YRT80 Rotary Table Bearings 80x146x35mm
- Shanghai
- T/T L/C PayPal Other
- 45 days
You May Like
Product Details
| Brand Name | RIGBRS | Place of Origin | China | |
| Model Number | YRT80 | Feature | Other, take combined loads | |
| Seals Type | open | Outside Diameter | 126, 1490 | |
| Bore Size | 50, 1200 | Gear Options | Nongeared |
Product Description
Inner ring: 80mm
Outer ring: 146mm
Mounting height: 35mm
Weight: 2.4kg
Structure: combined radial-thrust bearings, 3 row cylindrical rollers
Materials: GCr15
Precision(axial/radial runout): 2μm/1μm
Lubrication type: Grease lubrication
Lubrication hole: Yes
Load direction: axial, radial and tilting moment.
YRT80 rotary table bearings can undertake axial/radial loads and the tilting moment at the same time, in double directions. It's with mounting holes on inner and outer rings, can be fixed directly with bolts.
YRT axial radial bearings are suitable for applications with low rotation speed, and high requirement on the stiffness and running accuracy, such as rotary table, index head(dividing head), etc.

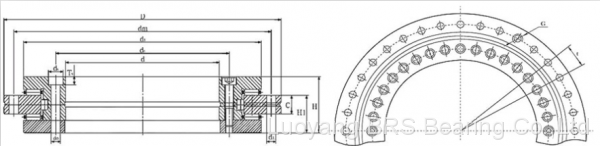

| Model | Dimensions(mm) | Fixing holes | Mass (kg) | |||||||||||
| d | D | H | C | d1 | dn | dm | inner ring | outer ring | ||||||
| do (mm) | ds (mm) | TS (mm) | Qty | dL (mm) | Qty | |||||||||
| YRT50 | 50 | 126 | 30 | 10 | 105 | 63 | 116 | 5.6 | 9 | 4.2 | 10 | 5.6 | 12 | 1.6 |
| YRT80 | 80 | 146 | 35 | 12 | 130 | 92 | 138 | 5.6 | 10 | 4.2 | 10 | 4.6 | 12 | 2.4 |
| YRT100 | 100 | 185 | 38 | 12 | 160 | 112 | 170 | 5.6 | 10 | 5.4 | 16 | 5.6 | 15 | 4.1 |
| YRT120 | 120 | 210 | 40 | 12 | 184 | 135 | 195 | 7 | 11 | 6.2 | 22 | 7 | 21 | 5.3 |
| YRT150 | 150 | 240 | 40 | 12 | 214 | 165 | 225 | 7 | 11 | 6.2 | 34 | 7 | 33 | 6.2 |
| YRT180 | 180 | 280 | 43 | 15 | 244 | 194 | 260 | 7 | 11 | 6.2 | 46 | 7 | 45 | 7.7 |
| YRT200 | 200 | 300 | 45 | 15 | 274 | 215 | 285 | 7 | 11 | 6.2 | 46 | 7 | 45 | 9.7 |
| YRT260 | 260 | 385 | 55 | 18 | 345 | 280 | 365 | 9.3 | 15 | 8.2 | 34 | 9.3 | 33 | 18.3 |
| YRT325 | 325 | 450 | 60 | 20 | 415 | 342 | 430 | 9.3 | 15 | 8.2 | 34 | 9.3 | 33 | 25 |
| YRT395 | 395 | 525 | 65 | 20 | 486 | 415 | 505 | 9.3 | 15 | 8.2 | 46 | 9.3 | 45 | 33 |
| YRT460 | 460 | 600 | 70 | 22 | 560 | 482 | 580 | 10 | 15 | 8.2 | 46 | 10 | 45 | 45 |
| YRT580 | 580 | 750 | 90 | 30 | 700 | 610 | 720 | 11.4 | 18 | 11 | 46 | 11.4 | 42 | 89 |
| YRT650 | 650 | 870 | 122 | 34 | 800 | 680 | 830 | 14 | 20 | 13 | 45 | 14 | 42 | 170 |
| YRT850 | 850 | 1095 | 124 | 37 | 1018 | 890 | 1055 | 18.5 | 26 | 17 | 57 | 18.5 | 54 | 253 |
| YRT950 | 950 | 1200 | 132 | 40 | 1130 | 990 | 1160 | 18.5 | 26 | 17 | 57 | 18.5 | 54 | 312 |
| YRT1030 | 1030 | 1300 | 145 | 40 | 1215 | 1075 | 1255 | 18.5 | 26 | 17 | 66 | 19.5 | 66 | 375 |
| YRT1200 | 1200 | 1490 | 164 | 52 | 1410 | 1240 | 1445 | 18.5 | 26 | 17 | 66 | 20.5 | 66 | 450 |
YRTS axial radial bearings have same structure and size as YRT axial radial bearings, but it has different internal structure design, which make YRTS series bearing has higher limit rotation speed, meanwhile provide lower and even friction.
