Tension monitor TD SERIES
- 100 Unit / Units per Month
- SHANGHAI
- T/T
You May Like
-
TROPHY Mechanical Tension meter T1 series
-
TROPHY Digital Tension meter T6 series
-
TROPHY Wire Guide Nozzle-Ruby Nozzle-RC series coil winding nozzles
-
TROPHY Wire Guide Nozzle-Ceramic Nozzle-CN series coil winding nozzle
-
TROPHY Wire Guide Nozzle-Carbide Nozzle-W series coil winding nozzle
-
TROPHY Wire Guide Nozzle-Motor Nozzle-W series coil winding nozzle
Product Details
| Brand Name | TROPHY | Place of Origin | China | |
| Model Number | TD | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description

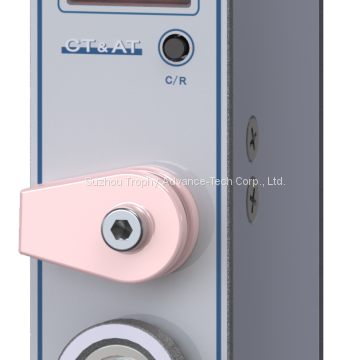

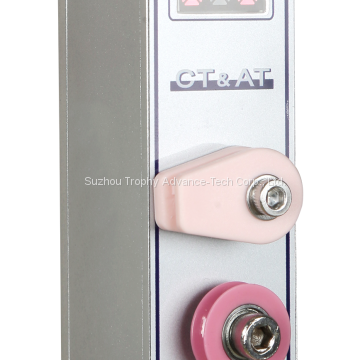

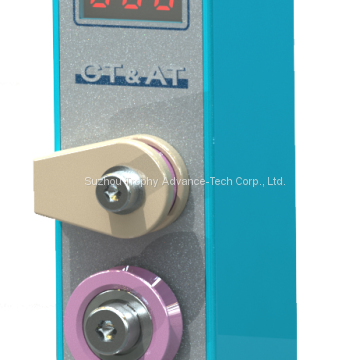

Digital Tension Meter (Mount-On Type)
The TD digital tension meter (mount-on type) is designed to be mounted on winding machines. It accurately measures and displays the real time tension of the travelling wire. It has the advantages of:
Compact in size, simple installation, precise measurement, direct and clear display of real-time tension measurement, Independent operation for single spindle and multi-spindle machines.
Tension monitoring and analysing meter
Besides monitoring and displaying real-time tension, this series of meter also does tension data acquisition via PC*. It also alerts users (via a contact output) when the tension is detected to be out of the preset range (upper and lower tension limits can be pre-set).
Ethernet communication module is built-in, can be networked according to requirements, provides a simple and convenient way to improve the quality of coil winding.
TD series
Part Number | Measurement Range | Function |
TD-B500 | 1-500g | Real-time tension display |
TD-J1000 | 1-999g | Real-time tension display |
TD-EX1000 | 1-999g | Real-time tension display; Tension data record on PC |
TD-F(B)1000 | 1-999g | Real-time tension display; Upper and Lower Limit preset; Alarm Output |
