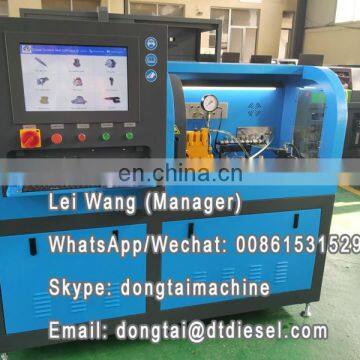

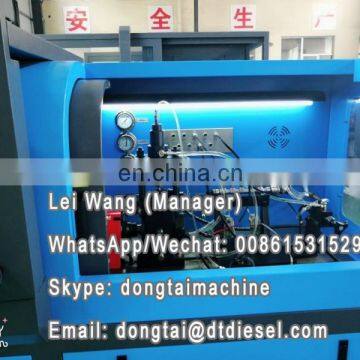

CR819 HEUI TEST BENCH C7 ,C9,C-9 3126 TEST BENCH HEUI PUMP TEST BENCH

CR819 common rail injector and pump test bench, use import the flow sensor for the measurement means, it can test common rail  injector  and common rail pump,it can  test HEUI injector and pumps also CAT pumps

  Function

1. High-precision flow measurement, it use imported flow sensor, high precision, good repeatability.

2. Test a comprehensive, test injector full load, medium speed, idle, pre-spray and other conditions of the fuel injection.

3. It can test BOSH, DENSO, DELPHI, SIEMENS, CAT etc injector

4. Machine low noise, it is using frequency control, speed prefabricated, low noise, no impact.

5. Advanced control, a key selection, the whole process of detection.

6. Massive data,

7.Open data management, the user can add the injector data itself, especially for the new fuel injector standard oil calibration.

8.It with pump flow sensor, it works with high pressure rail sensor to test common rail pumps.

9.It can test CP1, CP2,CP3 ,HP0 etc high pressure common rail pumps.

  Technical parameter

1. Out put power: 11kw

2. Input power: 380V/50hz/3phase or 220V/60hz/3phase

3. Rotation speed: 0~3000RPM

4. Rail high pressure: 0~2000 bar

5. Test oil filtered precision: 5μ

6. Oil tank: 60L

7. Size: 1900*900*1500

8. Wight: 900kg

Main products include:
     1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories) 2,  Injection pump test bench 3,auto tools 4  Auto parts 5, special vehicles 6 , Turbocharger.......
     Production process using advanced computer control and digital display systems, production technology, strong technical force . High quality, high technical performance, with micro-controller and digital functions. Products are sold  more than 100 countries and regions of all world .
