Wholesale Electric Generator SX460 Automatic Voltage Regulator AVR
US$ 10 - 20
/ Piece
1 Piece(Min. Order)
- guangzhou shenzhen or other port of china
- T/T Credit Card
You May Like
-
Diesel Engine Spare Parts 3376015 K19 Cylinder Liner Puller
-
Machinery Parts Clamp 201989 Construction Machinery Parts V Clamp
-
High Performance 5337966 ISF Foton Diesel Engine Thermostat
-
Heavy Duty Automotive Repair Tools Loading Piston Ring Tool
-
Half-wave Phase Controlled Thyristor Type Automatic Voltage Regulator
-
Portable Generator Diesel Engine Automatic Voltage Regulator AS440 AVR
Product Details
| Brand Name | Sanfeng | Place of Origin | Hubei, China |
Product Description

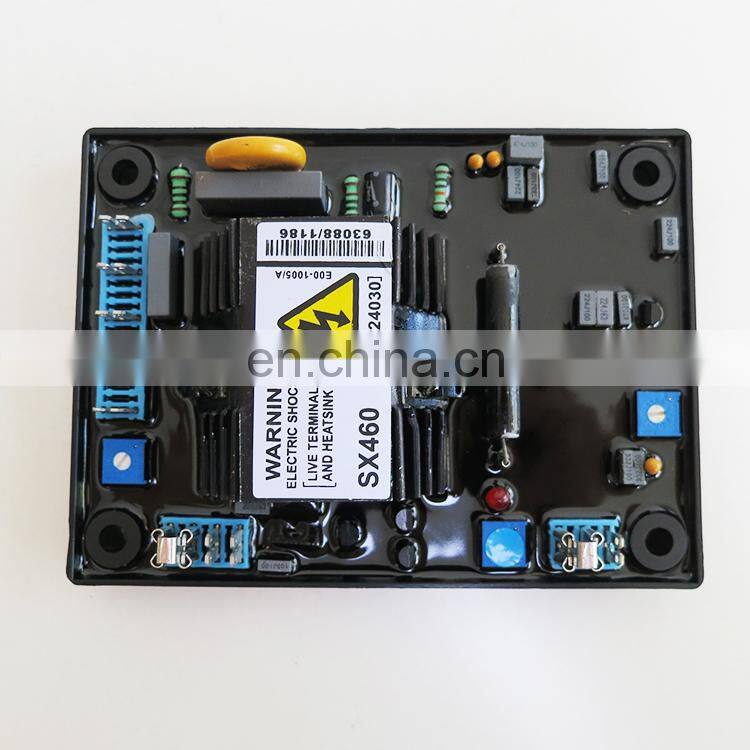

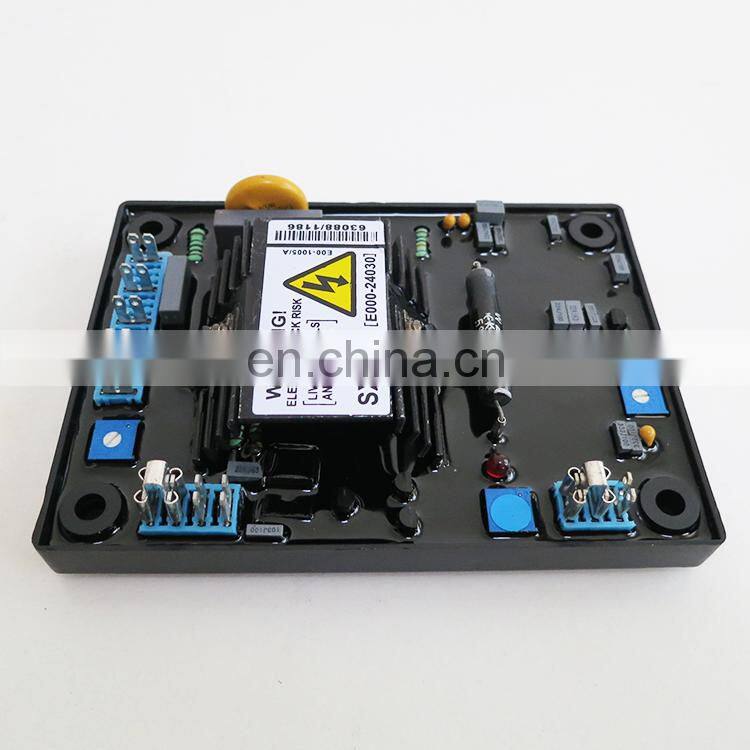

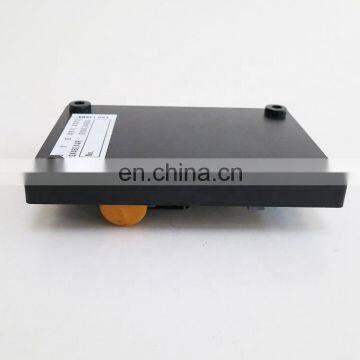

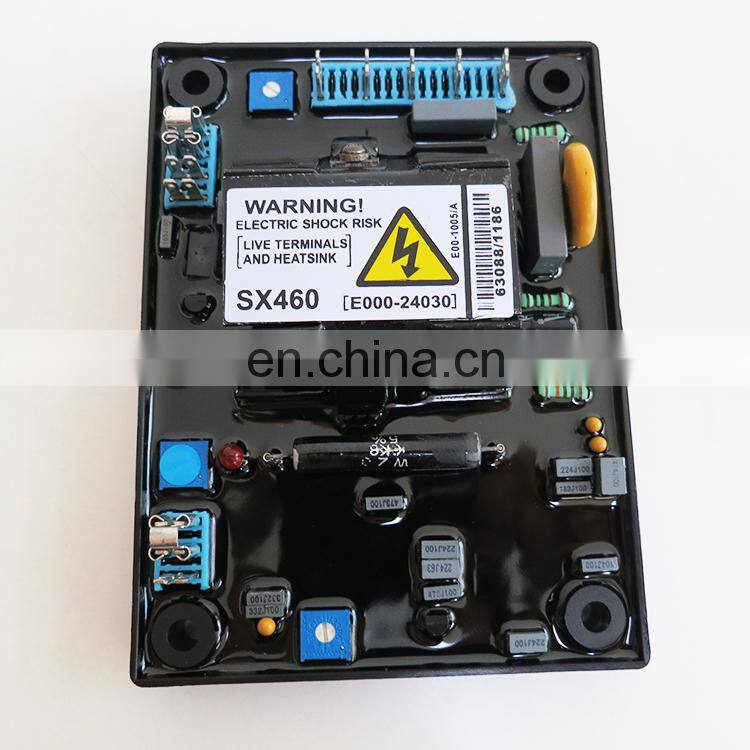

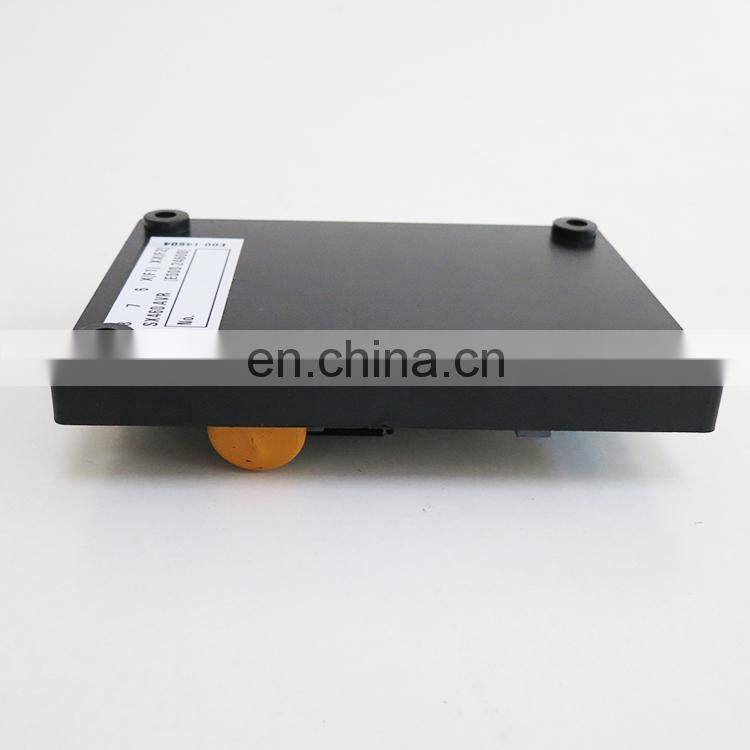

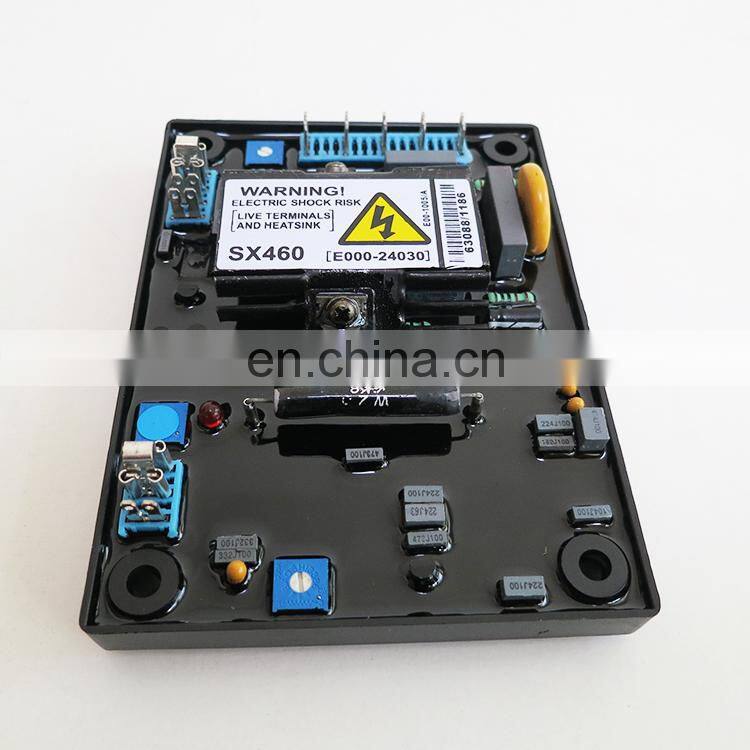

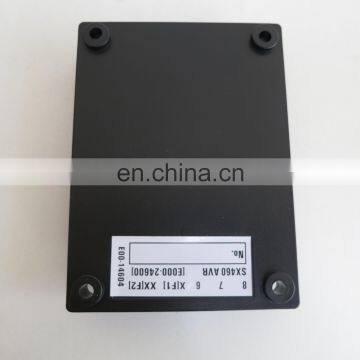

Wholesale Electric Generator SX460 Automatic Voltage Regulator AVR
Click Here To Get Latest Prices
Generator Single Phase AVR SX 460 Power Genset AVR is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%
Product Name | SX460 |
SENSING/POWER INPUT | |
Voltage | 120(90-132VAC) or 240(190-264VAC), 1 phase 2 wire |
MAGNETIC FIELD OUTPUT | |
Voltage | max 90VDC at 207VAC input |
Current | continuous 4A, intermittent 10A within 10 seconds |
PRESSURE REGULATING ACCURACY | <+/-1%RMS with 4% engine governing |
