3G Magnet Antenna With SMA or Fakra Connector
US$ 1.15 - 1.55
/ Piece
500 Pieces(Min. Order)
- SHENZHEN
- T/T PayPal Other
You May Like
-
5dBi Gain 3G Magnet Antenna With 3m Rg174 Cable
-
9dBi Gain 3G Magnet Antenna With SMA Connector Rg58 Cable
-
868MHz UHF Rubber Antenna With 2.5dBi Gain
-
433MHz Rubber Antenna With 2.5dBi Gain Folded Form
-
2.4G WiFi Rubber Antenna With R/a SMA Connector Black Color
-
3G Rubber Antenna With SMA R/a Male Connector 50.2mm Height
Product Details
| Brand Name | LH | Place of Origin | China | |
| Model Number | GL-DY016 |
Product Description

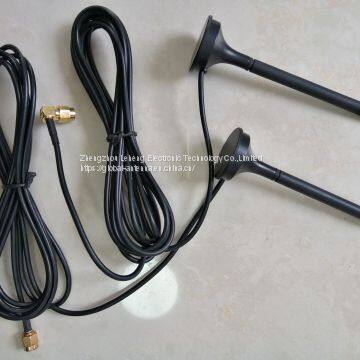

| 3G Magnet Antenna | |
| GL-DY016 | |
| Electrical Index | |
| Frequency-MHz | 824-960/1710-2170 |
| VSWR | <1.5 |
| Normal Impedance-Ω | 50 |
| Polarization | vertical |
| Mechanical Index | |
| Cable Length | RG174,3m |

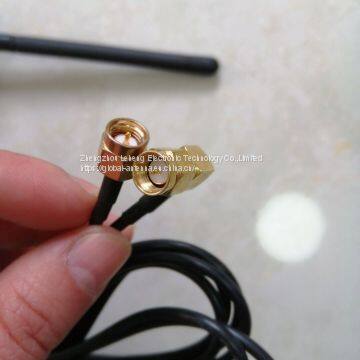

| Connector | SMA male or Fakra D |
| Antenna Dimension-mm | 29.4*110 |
| Installation Way | Magnet |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
| Environmentally Friendly | ROHS Compliant |
| Temperature-oC | -40~+85 |
| Humidity-% | 5~95 |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and connectors
