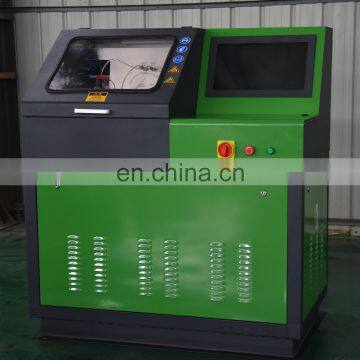

Common Rail Injector Measuring Tools for Solenoid and Piezo Injectors

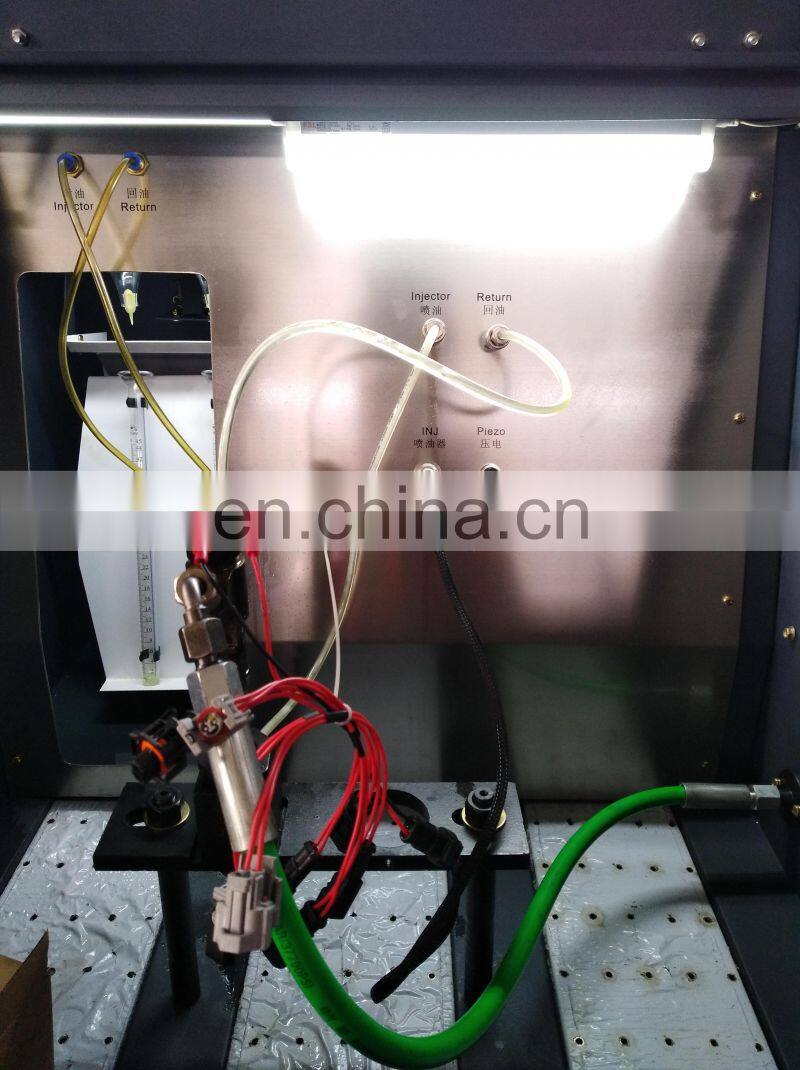

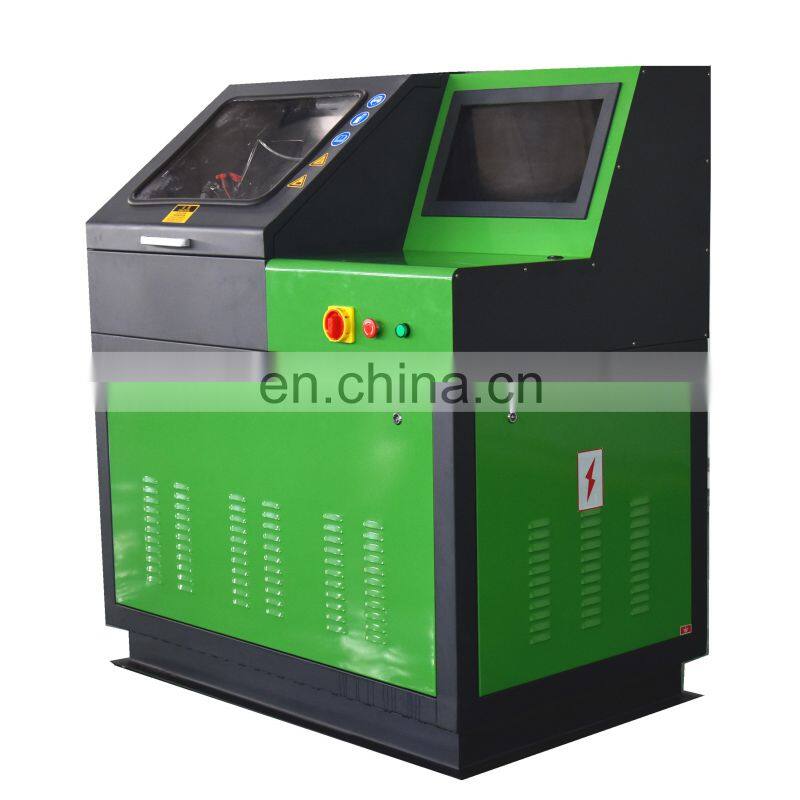

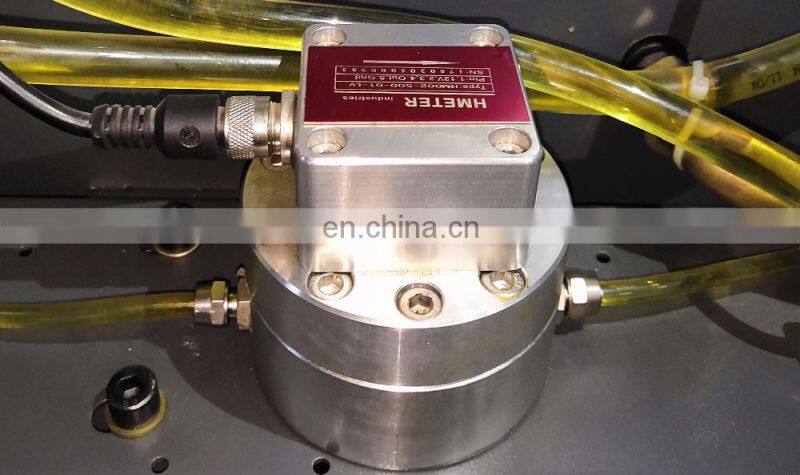

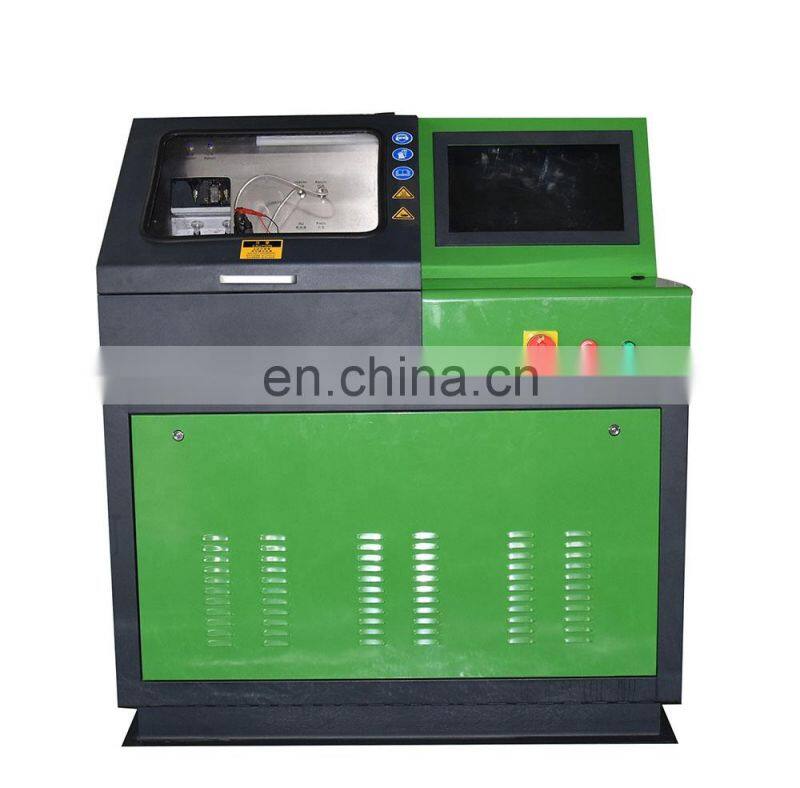

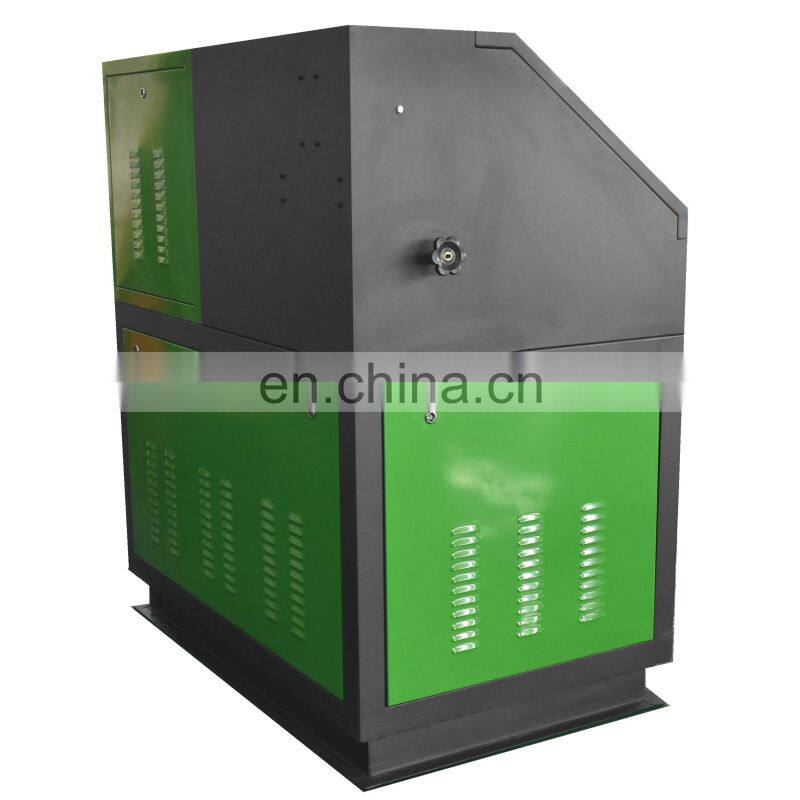

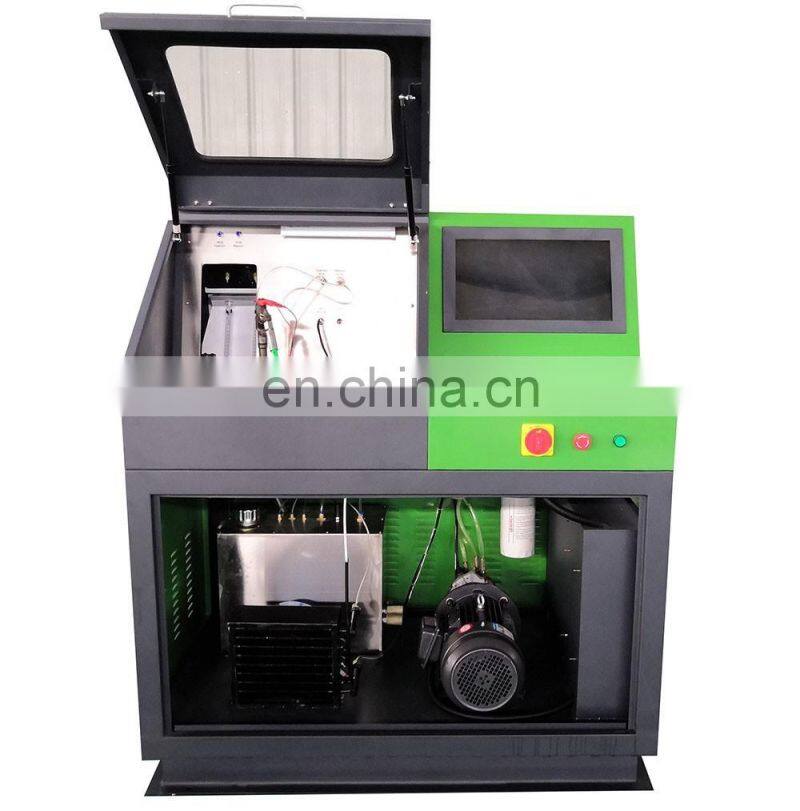

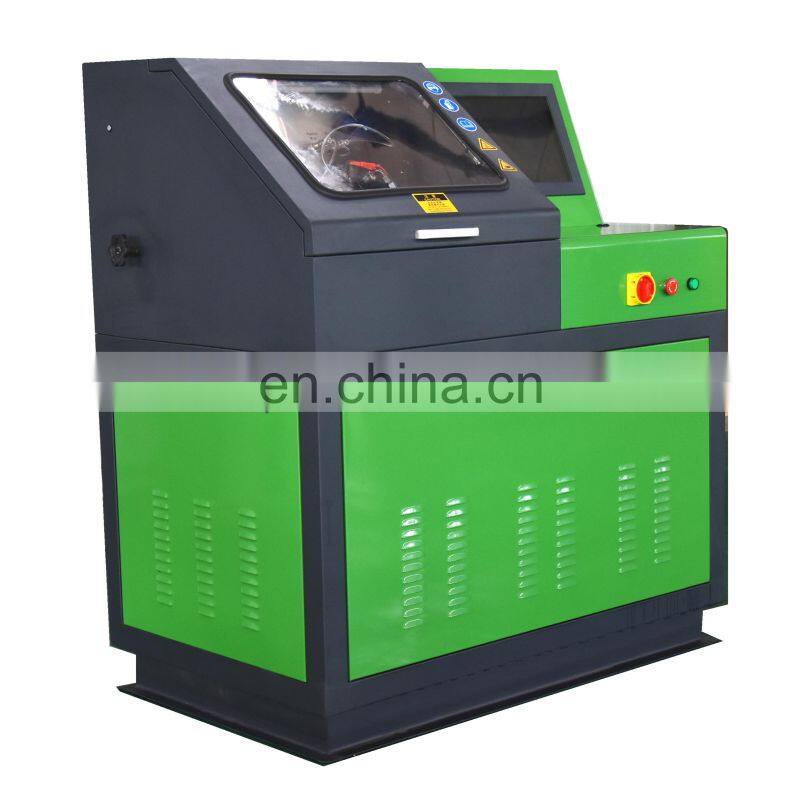

CRI200B common rail injector tester mainly test for common rail Injector, it has two test system, one is by flow sensor, another one is by glass tube.which is applied to BOSCH/DELPHI/DENSO/SIEMENS etc brands. It is drived by the original BOSCH common rail pump to produce 0-1600bar rail pressure.It adopts humanizing control interfaces to control the parameters of the oil pressure, pulse width,frequency and the scale valve duty cycle.

Technology characteristics
1.industrial computer,windows operating system,driven by Bosch pump;
2.real-time showing rail pressure with LCD;
3.the database can be queried ,stored,changed and generated a new database;
4.closed-loop control,it can automatically adjust the rail pressure,make it stable, and fluctuations not over +/-1Mpa;
5.the drive signal pulse width and frequency can be adjustable;
6.the number of injections and injection time can be set;
7.with overpressure protection,automatically shut down when rail pressure is more than 1600bar;
pletely running-in of common rail pump and injector;
tective plexiglass door, the operation more safer,easily observation.
Functions
1.test start injecting quantity of common rail injector;
2.test the biggest injection quantity of common rail injector;
3.test pre-injection quantity of common rail injector;
4.test return oil quantity of common rail injector;
5.test piezoelectric crystal common rail injector;
6.test the uniformity of common rail injector;
7.test sealing performance of of common rail injector;
Technical Parameters:
1. The rated output power: 5.5KW
2. The main power supply: 380V/220V
3. Number of phase:3-phase
4.Frequency :50 Hz/60Hz
5.Electric current:30A (Max)
6.Oil temperature control: heating/air cooling
7.Oil temperature setting:40°C
8.Temperature of using environment:<35°C
9.The maximum common rail pressure:180Mpa

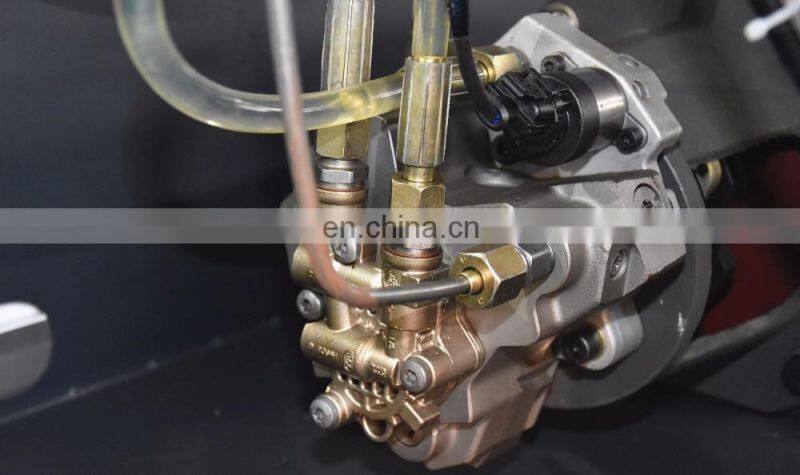

10.Common rail pump:Bosch CP3.3
11.Control circuit voltage:DC24V/DC12V
12.ECU internal booster:0-200VDC(Max)
13.Test Oil tank capacity:19L
14.Noise level:<85dB
15.Weight:350kg
16.Net size:141mm*85mm*120mm (Height *width *length)
17.Wooden case packaging size:150mm*95mm*130mm (Height *width *length)

Taian Junhui Automobile Maintenance Equipment Co., Ltd is professionally engaged in the developing and manufacturing of diesel injection system testing equipment, such as fuel injection pump test bench, common rail

test bench,HEUI tester, EUI/EUP tester. And It also distribut diesel fuel injection components, diagnostic equipment, the series of motive maintenance equipment.Always following the philosophy of 'Reliable product quality and after-sales service are the most important two engines for the life of enterprise'.
