Multifunction CR360 Diesel Fuel Injection Pump Test Bench With Common Rail Test System

CR360 diesel fuel injection pump test machine with common rail test system

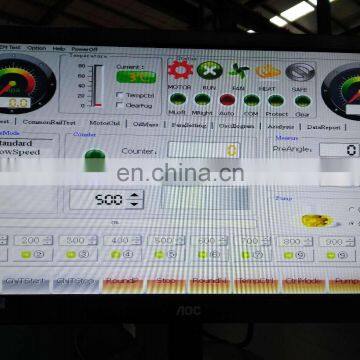

CR360 multifunctional test bench test for mechanical pump and common rail pump & injector, which is applied to BOSCH/DELPHI/DENSOSIEMENS etc brands,including piezo injector .It has two control systems in the computer.It is drived by the original BOSCH common rail pump to produce 0-1600bar rail pressure.It adopts humanizing control interfaces to control the parameters of the oil pressure, pulse width, frequency and the scale valve duty cycle.

Technology characteristics
1.industrial computer,windows operating system,driven by Bosch pump;
2.real-time showing rail pressure with LCD;
3.the database can be queried ,stored,changed and generated a new database;
4.closed-loop control,it can automatically adjust the rail pressure,make it stable, and fluctuations not over +/-1Mpa;
5.the drive signal pulse width and frequency can be adjustable;
6.the number of injections and injection time can be set;
7.with overpressure protection,automatically shut down when rail pressure is more than 1600bar;
pletely running-in of common rail pump and injector;
tective plexiglass door, the operation more safer,easily observation.

Functions
1.test start injecting quantity of common rail injector;
2.test the biggest injection quantity of common rail injector;
3.test pre-injection quantity of common rail injector;
4.test return oil quantity of common rail injector;

5.test piezoelectric crystal common rail injector;

6.test the uniformity of common rail injector;
7.test solenoid valve of common rail pump;
8.test sealing performance of of common rail pump and injector;
9.test the supply oil quantity of common rail pump;
10.test the input pressure of common rail pump;
11.test performance of rail pressure sensor;
12.test performance of mechanical pump and injector.

It's packed by plywood case.
