CRDI Common Rail Injector Calibration Common Rail Injector Test Bench With IQA Code

Common Rail Injector Calibration Target Common Rail Injector Test Bench

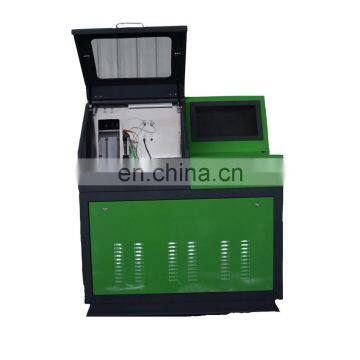

CRI HIGH-PRESSURE COMMON RAIL INJECTOR TEST BENCH

 is the latest equipment we researched and produced by referring to the actual condition of domestic existing common rail fuel injector. The equipment’s rail pressure range is (0~1600bar) ., which is provided by BOSCH common rail fuel injector. The computer control system can accomplish real-time measurement and adjustment for common rail pressure. It can conduct detection and debugging on rail injectors produced by BOSCH, SIEMENS, DELPHI and DENSO. The computer control system is controlled by industrial computer with windows system and touch screen (or mouse) operating system, the fuel-measurement system changes the traditional measurement method by glass graduate, it adopts sensor for fuel-measurement (This equipment may be equipped with a measuring glass). Fuel mass will ne measured at real time and displayed at screen, the error precision is 0.1ml, Built-in data involves in more than 700 types of Bosch injector debugging data and more than 10 kinds of Denso injector debugging data, the data can be searched and generates date as well as be save automatically . This product with reliable performance, accurate measurement, as well as equipped with organic glass protective door which is convenient to operate and safe to observe.

Ⅰ. Characteristics:

1.      Real-time control by industrial computer with windows system, touch screen operating system (or mouse).

2.      Fuel mass is measured by sensor and displayed on 10.4” LCD or 17” LENOVO display.

3.      Adopts BOSCH high-pressure common rail injection pump to generate 0~1600 bar pressure.

4.      Real-time measure and control of rail pressure, with overpressure protection function.

5.      The pulse width and frequency of injector’s driving signal are adjustable.

6.       Injection time(s) of injector can be set at will.

7.      The date of more than 400 kinds BOSCH and more than 10 kinds DENSO are searchable and savable.

8.      Short-circuit protection.

9.      Accurate measurement, easy operation, low noise and energy-efficient.

Ⅱ. FUNCTIONS:

1.       Detection range: BOSCH, DENSO, DELPHI, SIEMENS.

2.       Detect one piece of common rail injector. (Up to 2 pieces of injectors can be detected at the same time.)

3.       Test on sealing performance of high-pressure common rail injector.

4.       Test on pre-injection of high-pressure common rail injector.

5.       Test on maximum quantity of fuel of high-pressure common rail injector.

6.        Test on starting quantity of fuel of high-pressure common rail injector.

7.       Test on quantity of fuel return of high-pressure common rail injector.

8.       Test on quantity of average fuel of high-pressure common rail injector.

9.       It is searchable and savable for data.

III. Technical parameter

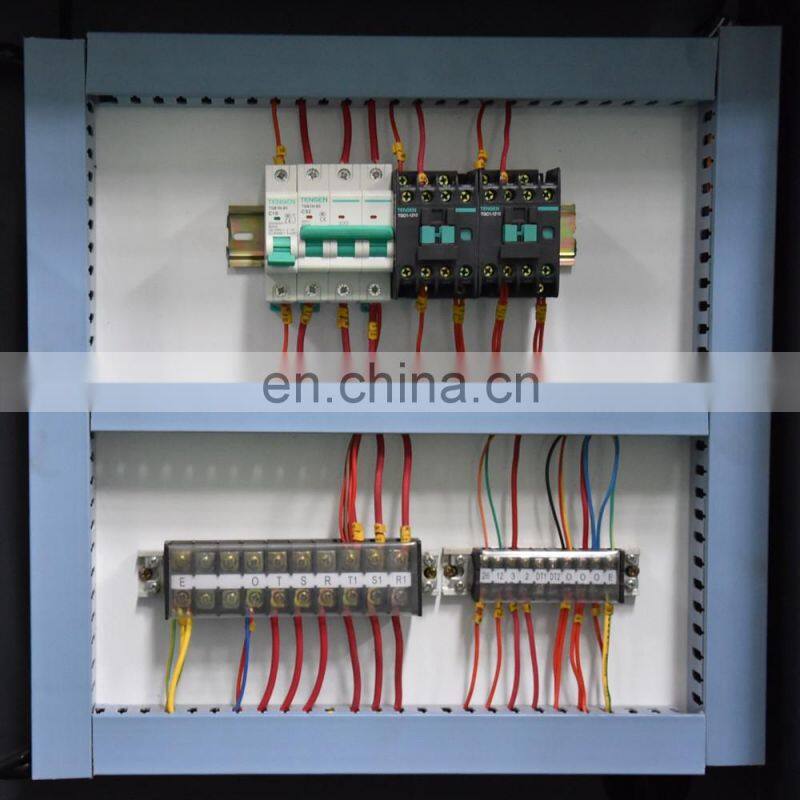

    Electric Switchboard

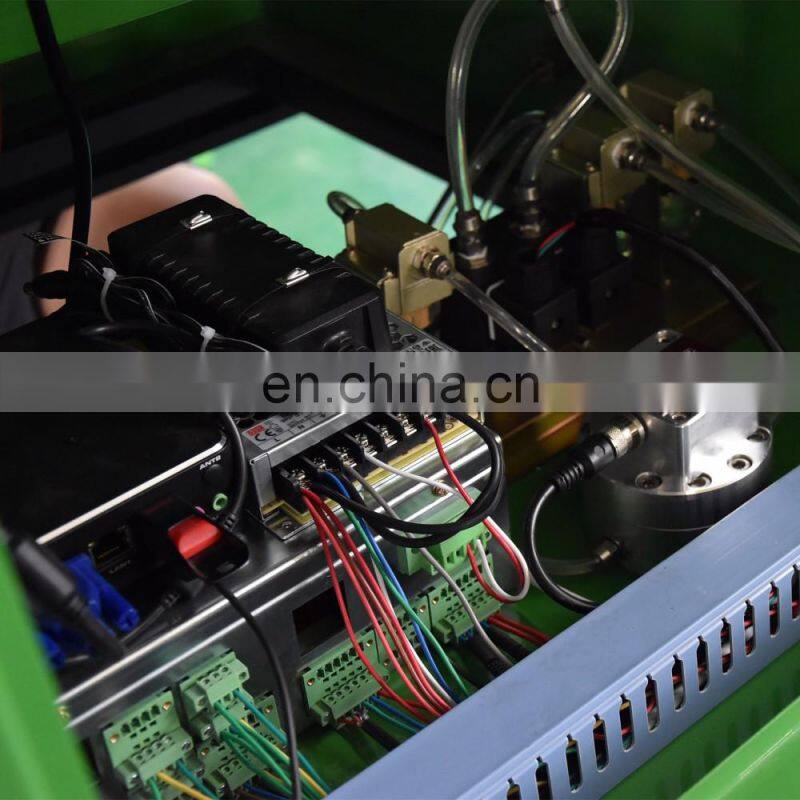

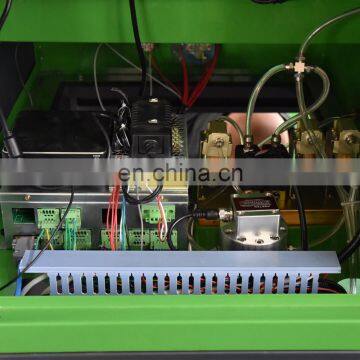

Software and Flow Sensor

Calibration Injector Display

 Common Rail Injector Test Bench Accessories

 Package: Wooden Box ;

Package Dimension(L*W*H)(mm): 1460×960×1670 ;

Net Weight(Kg): 300 ;

Gross Weight(Kg): 400 ;

Packed 8 units in one 20ft container ;

Loaded in LCL,FLC and shipping by Cargo Ship.

Tai’an Junhui Automobile Maintenance Equipment Co.,Ltd is one professional enterprise on research,production,sales and service on frequency control fuel injection pump test bench and automobile electrical control & EFI detection equipments.

We mainly manufacture PTS series Diesel Fuel Injection Pump Test Bench, Common Rail Injector & Pump Test Bench, EDC Electric speed governing tester, EUI/EUP Test Bench,PDQ series Fuel Injector Test Bench,etc. We also design and produce different kinds modern testing equipments by client’s requirements.

We acquired ISO 9001:2008 and CE certificate.There are Asia,Africa,Europe,Aemerica clients give high evaluation on our machines.

Factory Workshop

ISO 9001:2015 / CE certificate

Q1:Are you a trader or manufacture?

A1:We are manufacturer

Q2:Can you accept OEM or ODM?

A2:Of course,Logo is also acceptable.

Q3:What is the delivery time?

A3:About 7days after order placed.

Q4:How is the machine packed?

A4:wooden cases which is safe for sea transport and no need to be fumigated.  the machine if it is big and not in regular size, so machine use nude packing with necessary fixing.  If machine is delivered it by LCL, we will pack it with some necessary materials like wrapping film, shockproof film, pallet or wooden frame to secure the safe delivery. In this case, extra packing cost will be charged.


Q5: Which port can we load and deliver the machine?
A5:We have shipping agent in every main port of China, so we can deliver the machine from every port of China to most sea port in the world. We can also quote DDU price for your reference after we have your detailed address information.

Q6:Which is the nearest port and airport to us?

A6:Its Qingdao City

Q7:Which means of transport  we can accept?

A7:1. Sea transport  2. Air transport  3. Courier  4. Train  5. Combined transport

Q8:Special hint for FOB term

A8:The default FOB terms we quote is based on the quotation of our own shipping forwarder, which means that if you ask us to quote FOB price, all the charge is based on quote of our forwarder. So if you want to appoint forwarder in China to organize the delivery for you, please kindly tell us this information in advance, we can check with your forwarder again for the port charges because they always quote a higher charge than we get.

Q9: How will you deliver the spare parts?

A9: If you purchase the parts separately, we usually pack the spare parts by carton or plywood. Parts will be sent by courier like DHL or TNT or FEDEX.

Q10:How long of your warranty terms?

A10:Warranty Terms: 6 months since the date of delivery, water pump is not subject to this term.
