JUNHUI JH-CRI200 Diesel Fuel Injection Common Rail Injector Calibration Tester With Flow Sensor

JUNHUI JH-CRI200 Diesel Fuel Injection Common Rail Injector Calibration Tester with Flow Sensor

JH-CRI200 Common Rail Injector tester is the latest equipment we researched and produced by referring to the actual condition of domestic existing common rail fuel injector. The equipment’s rail pressure range is (0~2000bar) ., which is provided by BOSCH common rail fuel injector. The computer control system can accomplish real-time measurement and adjustment for common rail pressure. It can conduct detection and debugging on rail injectors produced by BOSCH, SIEMENS, DELPHI and DENSO. The computer control system is controlled by industrial computer with windows system and mouse operating system, the fuel-measurement system changes the traditional measurement method by glass graduate, it adopts sensor for fuel-measurement . Fuel mass will ne measured at real time and displayed at screen, the error precision is 0.1ml, Built-in data involves in more than 1500 types of Bosch injector debugging data and more than 500 kinds of Denso injector debugging data, the data can be searched and generates date as well as be save automatically . This product with reliable performance, accurate measurement, as well as equipped with organic glass protective door which is convenient to operate and safe to observe.

Ⅰ. Characteristics:

1.    Real-time control by industrial computer with windows system, with mouse operating system.

2.    Fuel mass is measured by sensor and displayed on 19.5” LENOVO display.

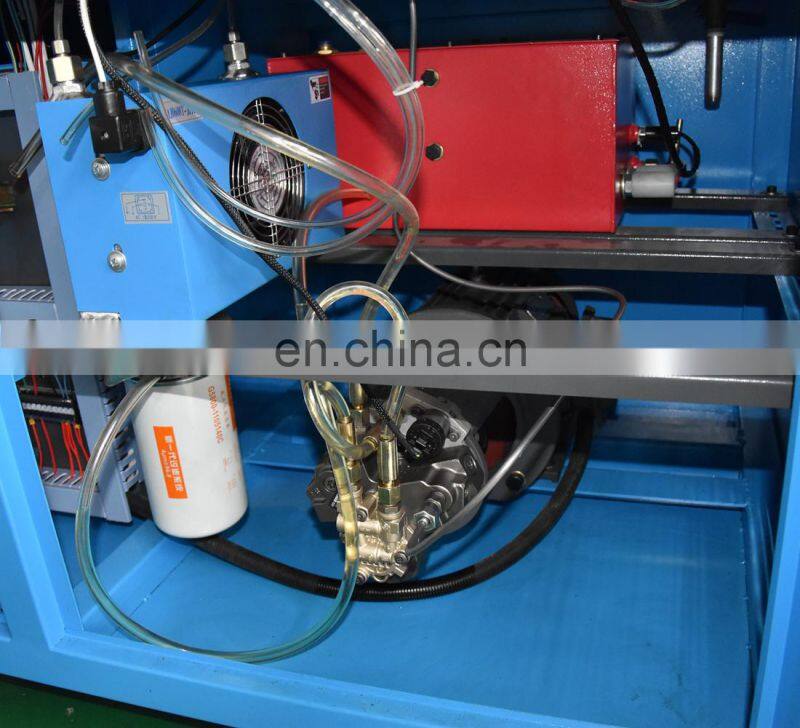

3.    Adopts BOSCH high-pressure common rail injection pump to generate 0~2000 bar pressure.

4.    Real-time measure and control of rail pressure, with overpressure protection function.

5.    The pulse width and frequency of injector’s driving signal are adjustable.

6.    Injection time(s) of injector can be set at will.

7.    The date of more than 1500 kinds BOSCH and more than 500 kinds DENSO are searchable and savable.

8.    Short-circuit protection.

9.    Accurate measurement, easy operation, low noise and energy-efficient.

Ⅱ. FUNCTIONS:

1.     Detection range: BOSCH, DENSO, DELPHI, SIEMENS.

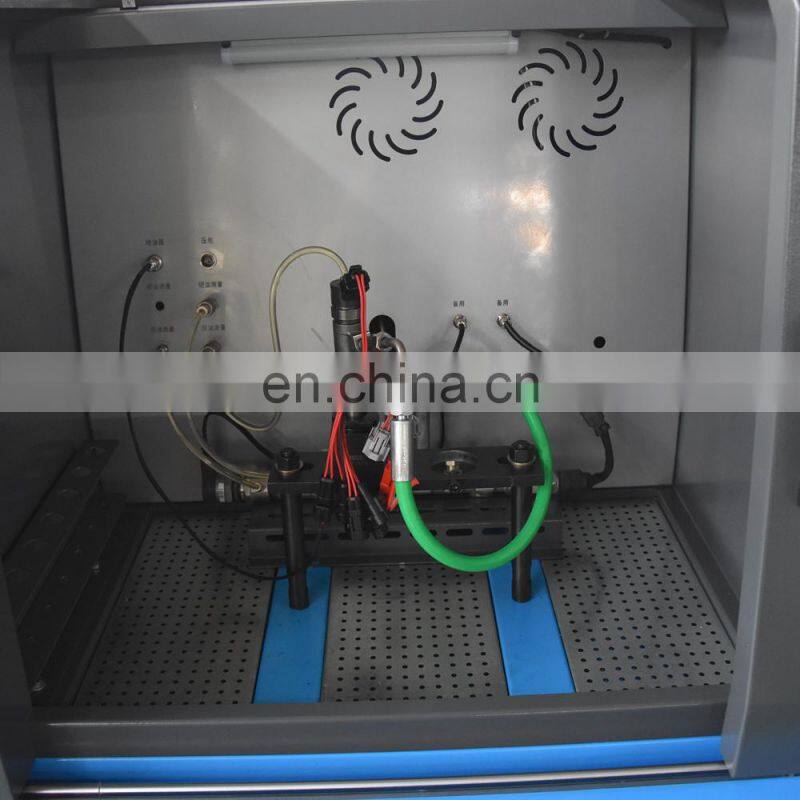

2.     Detect one piece of common rail injector. (Up to 2 pieces of injectors can be detected at the same time according to customer's requirements)

3.     Test on sealing performance of high-pressure common rail injector.

4.     Test on pre-injection of high-pressure common rail injector.

5.     Test on maximum quantity of fuel of high-pressure common rail injector.

6.      Test on starting quantity of fuel of high-pressure common rail injector.

7.     Test on quantity of fuel return of high-pressure common rail injector.

8.     Test on quantity of average fuel of high-pressure common rail injector.

9.     It is searchable and savable for data.

Ⅲ. Technical parameter

 Package: Wooden Box

 Package size: 1650mm*1060mm*1750mm

 Weight: 400Kg

Tai’an Junhui Automobile Maintenance Equipment Co.,Ltd is one professional enterprise on research,production,sales and service on frequency control fuel injection pump test bench and automobile electrical control & EFI detection equipments.

We mainly manufacture PTS series Diesel Fuel Injection Pump Test Bench, Common Rail Injector & Pump Test Bench, EDC Electric speed governing tester, EUI/EUP Test Bench,PDQ series Fuel Injector Test Bench,etc. We also design and produce different kinds modern testing equipments by client’s requirements.

We acquired ISO 9001:2015 and CE certificate.There are Asia,Africa,Europe,Aemerica clients give high evaluation on our machines.
