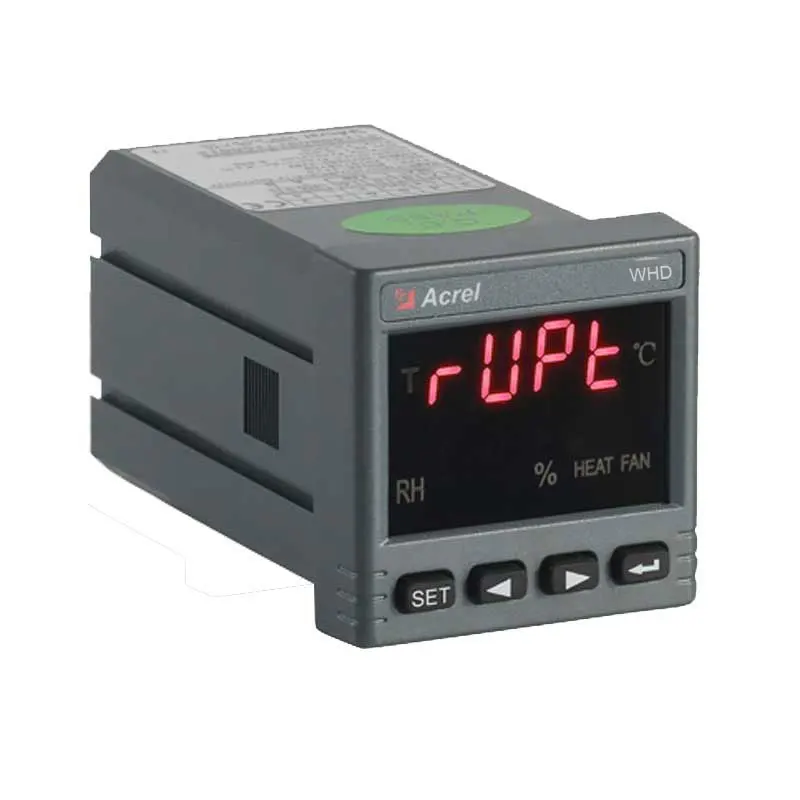

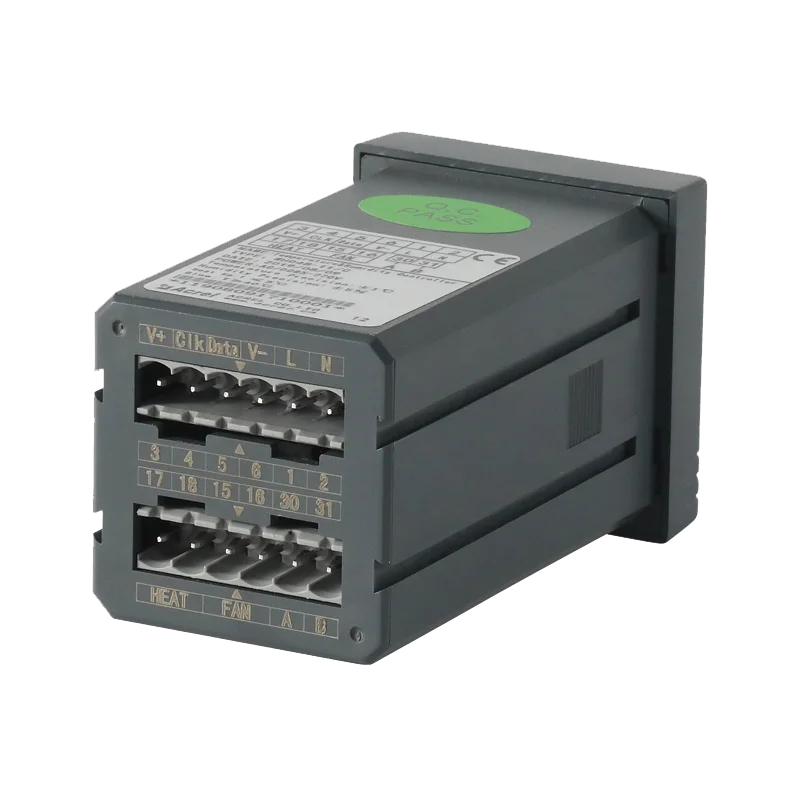

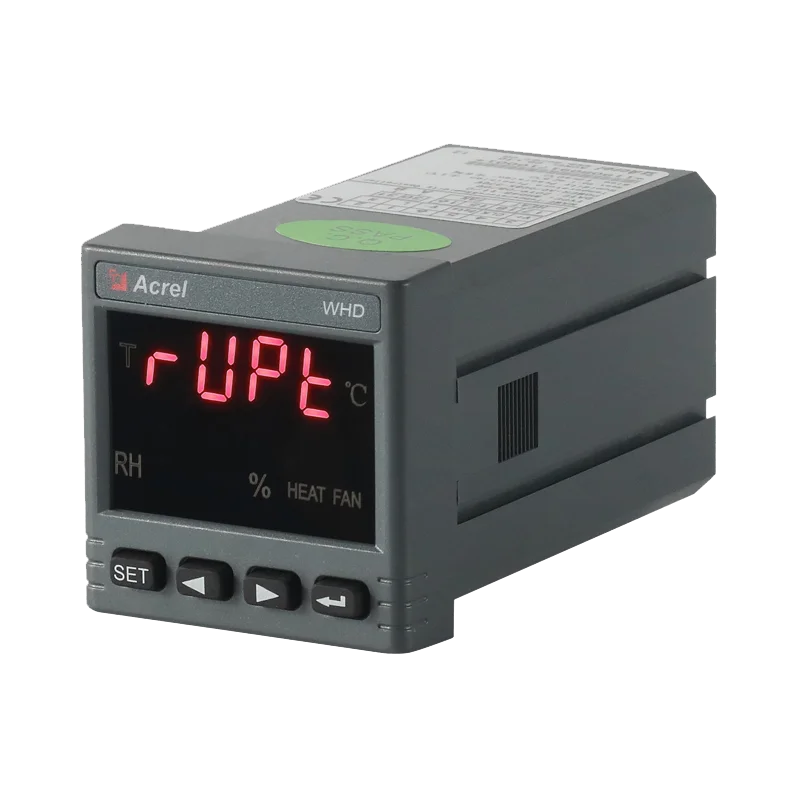

ACREL Low Price Auto Measuring Terminal Box Used WHD48-11
US$ 22.4 - 30
/ Piece
1 Piece(Min. Order)
- shanghai
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
-
Product Overviews Tem & Humidity Controller Auto Meassuring Auto Meassuring Auto Meassuring General The Controller for Temperature and Humidity is Suitable for Adjustment and Control of Temperature and Humidity in Equipments of High Voltage Switchgear
-
ACREL Solar System Panel dc Current Meter AMC72L-DI
-
ACREL New Arrival PV Power Station Using Solar System DC Meter DJSF1352-RN
-
Acrel 1P Din Rail Single Phase Energy Meters DDS1352
Product Details
| Brand Name | ACREL | Place of Origin | China | |
| Model Number | WHD48-11 | Temperature Range | -40℃-99℃ | |
| Usage | Indoor | Theory | Other | |
| Accuracy | ±5% RH |
Product Description
Product Overviews

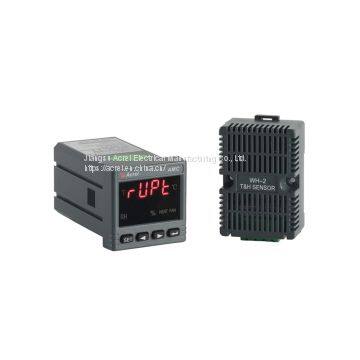

Tem & Humidity Controller



General
The controller for temperature and humidity is suitable for adjustment and control of temperature and humidity in equipments of high voltage switchgear, terminal box, ring network panel, box transformer substation etc. It can effectively protect relevant equipment from faults resulting from excessive low or high temperature, creep-age or flashover etc.from humidity or condensation.

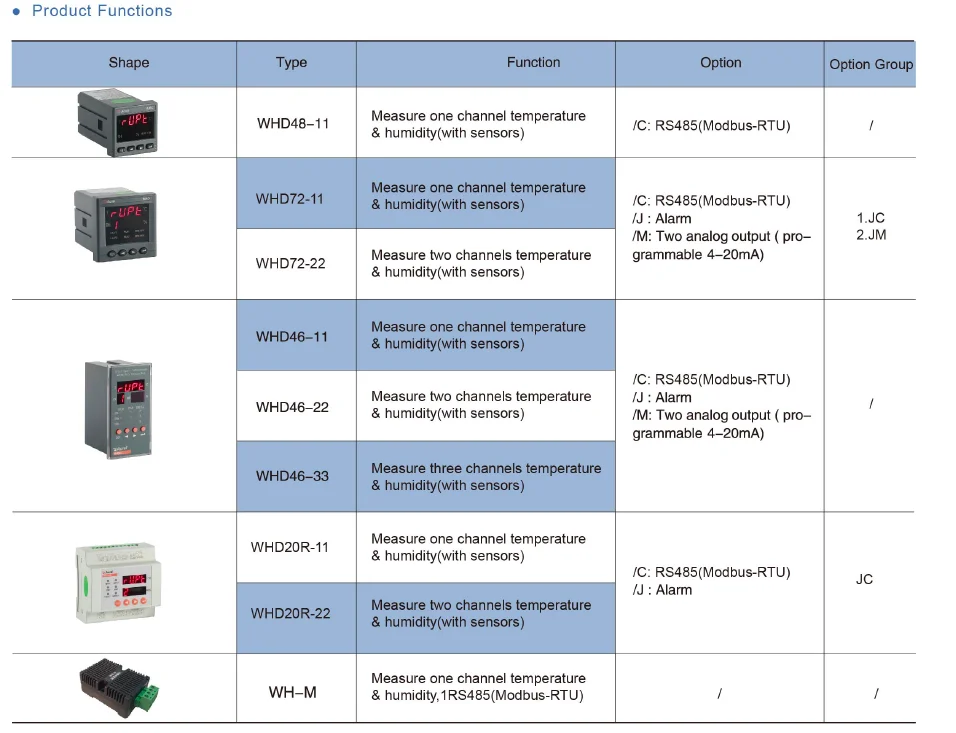

Function Description

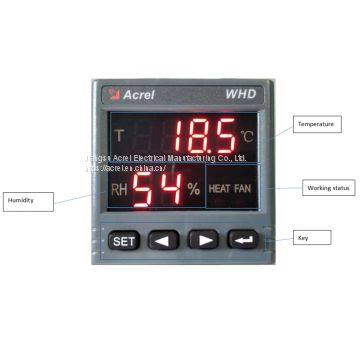

Temperature and humidity Measuring & controlling
Panel mounted
Panel mounted
Accuracy: Temperature ±1℃, Humidity ±5%RH
Auxiliary power supply: AC 85-265V,DC 100-350V
Consumption: Auxiliary power supply:Basic power consumption(≤0.8w)+relay power consumption(each channel≤0.7w)
Auxiliary power supply: AC 85-265V,DC 100-350V
Consumption: Auxiliary power supply:Basic power consumption(≤0.8w)+relay power consumption(each channel≤0.7w)

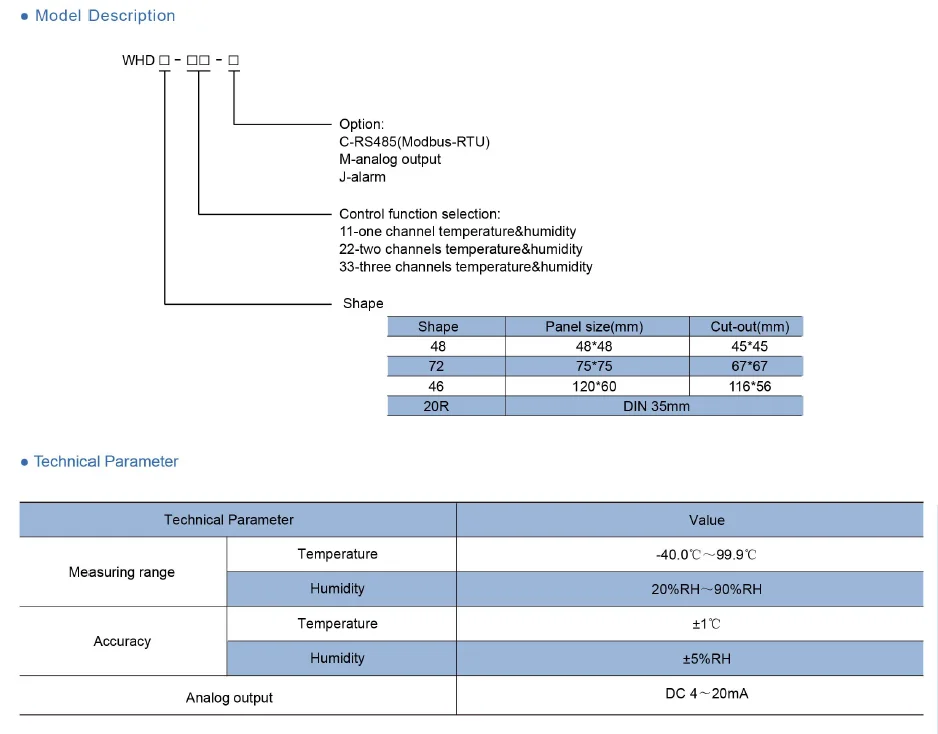

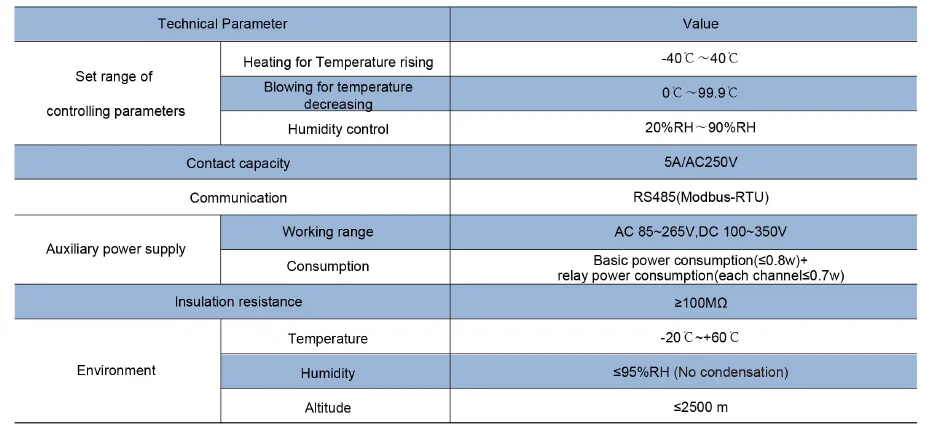

Technical
| Voltage | DC18~36V |
| Consumption | ≤2W |
| Rated voltage | AC198… 264V |
| Rated frequency | 50… 60Hz |
| Locating current(peak) | <1mA |
| Locating voltage(peak) | <24AC |
| Protocol | Modbus-RTU |
| Interface | CAN |
