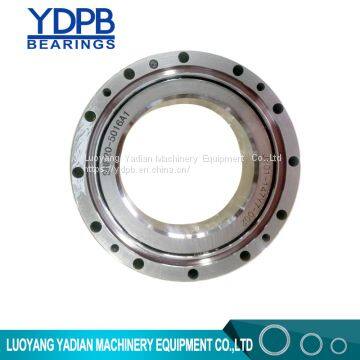

RU28 Cross Roller Bearings 10X52X8mm Luoyang Bearing Industrial Robots Bearings Thk
US$ 1 - 100000
/ Piece
1 Piece(Min. Order)
- shanghai
- T/T L/C PayPal
- 7 days
You May Like
-
Yrt Table Bearings Factory YDPB YRT1200 INA Bearing China Supplier 1200X1490X164mm
-
RU57 ru Series Crossed Roller Bearing for Sale 25x80x12mm Thk Thin Section Cross Roller Bearing
-
RU28 RU42 RU66 Crossed Cylindrical Roller Bearing Made in China Luoyang Bearing for Industrial Robots
-
RU85GUUCCOP2 RU124GUUCCOP2 RU148GUUCCOP2 Thin Type Crossed Roller Slewing Bearing China Luoyang Bearing for Industrial Robots
-
RU85XP2 RU124XUUCCOP2 RU148XUUCCOP2 Buy Cross Cylindrical Roller Bearingschina Luoyang Bearing for Industrial Robots
-
RU85XUUCCOP5 RU124XUUCCOP5 RU148XUUCCOP5 Super Slim Type Crossed Roller Bearings
Product Details
| Brand Name | OEM | Place of Origin | China | |
| Model Number | RU28 | Number of Row | Other, multi-row | |
| Precision Rating | P4 P5 | Outside Diameter | , | |
| Bore Size | , |
Product Description
RU special type is a bearing with integrated inner- and outer ring. It is being used in cases where high rotational accuracy of both the inner- and outer rings is required. Rolling and Plain bearings,accessories RU series, without gear teeth,Sealed on both sides. If you're looking Crossed roller bearings RU66 to replace your THK,FAG,Timken, SKF, NSK,NTN,Koyo,Mcgill ,Nachi bearing, we make a drop-in replacement for it.
Models:
RU42,RU66,RU85,RU124(G)(X),RU148(G)(X),RU178(G)(X),RU228(G)(X),
RU297(G)(X),RU445(G)(X)

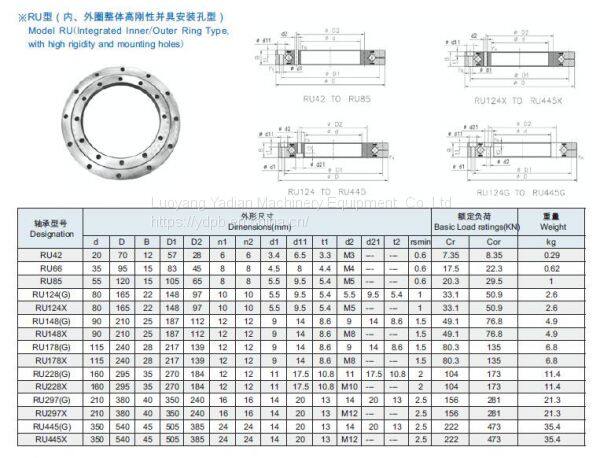

Main Parameters
| shaft diameter | Identification number | Main dimensious | shoulder height | Basic load rating (radial) | weight | |||||||
| Inner diameter | outer diameter | Roller pitch circle diameter | width | Greasing hole∮ | Chamfer R(min) | ds | Dh | C | Co | Kg | ||
| d | D | DP | B/B1 | KN | KN | |||||||
| 35 | RU66 | 35 | 95 | 66 | 15 | 3.1 | 0.6 | 59 | 74 | 17.5 | 22.3 | 0.62 |
| 55 | RU85 | 55 | 120 | 85 | 15 | 3.1 | 0.6 | 79 | 93 | 20.3 | 29.5 | 1 |
| 80 | RU124(G) | 80 | 165 | 124 | 22 | 3.1 | 1 | 114 | 134 | 33.1 | 50.9 | 2.6 |
| RU124X | ||||||||||||
| 90 | RU148(G) | 90 | 210 | 147.5 | 25 | 3.1 | 1.5 | 133 | 162 | 49.1 | 76.8 | 4.9 |
| RU148X | ||||||||||||
| 115 | RU178(G) | 115 | 240 | 178 | 28 | 3.1 | 1.5 | 161 | 195 | 80.3 | 135 | 6.8 |
| RU178X | ||||||||||||
| 160 | RU228(G) | 160 | 295 | 227.5 | 35 | 6 | 2 | 208 | 246 | 104 | 172 | 11.4 |
| RU228X | ||||||||||||
| 210 | RU297(G) | 210 | 380 | 297.3 | 40 | 6 | 2.5 | 272 | 320 | 156 | 281 | 21.3 |
| RU297X | ||||||||||||
| 350 | RU445(G) | 350 | 540 | 445.4 | 45 | 6 | 2.5 | 417 | 473 | 222 | 473 | 35.4 |
| RU445X | ||||||||||||
Features of RU series robotics bearings
1.Can bear comprehensive load e.g radial ,axial and overturn load .
2.Thin section bearings save installation space
3.High rotary positioning precision
4.Application area:robot arm,revolute joints,chassis etc parts.
More inforamtion ,pls contact us any time ,we will try our best to serive you.
