Product Details
| Brand Name | GOGO | Place of Origin | Zhejiang, China | |
| Model Number | MCY | Type | Seals |
Product Description

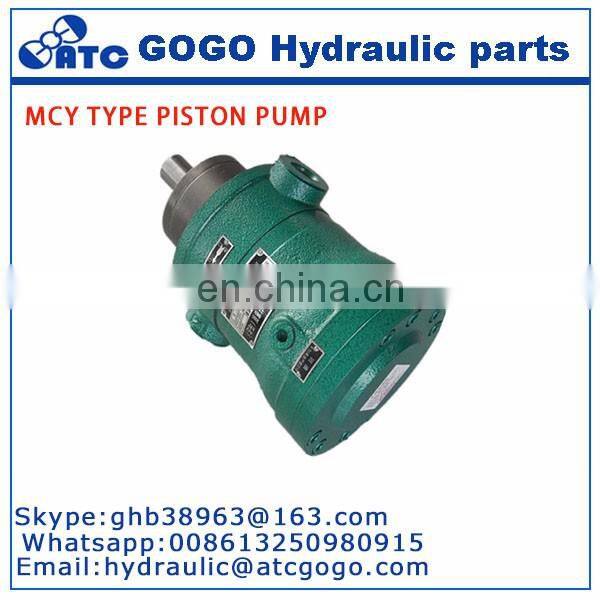

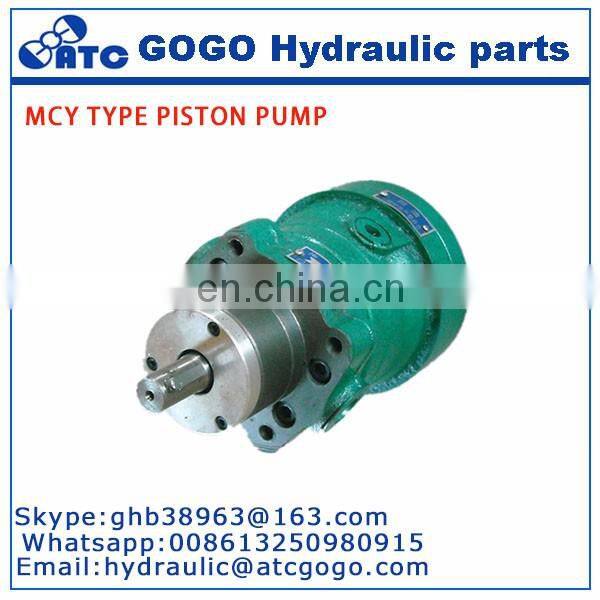

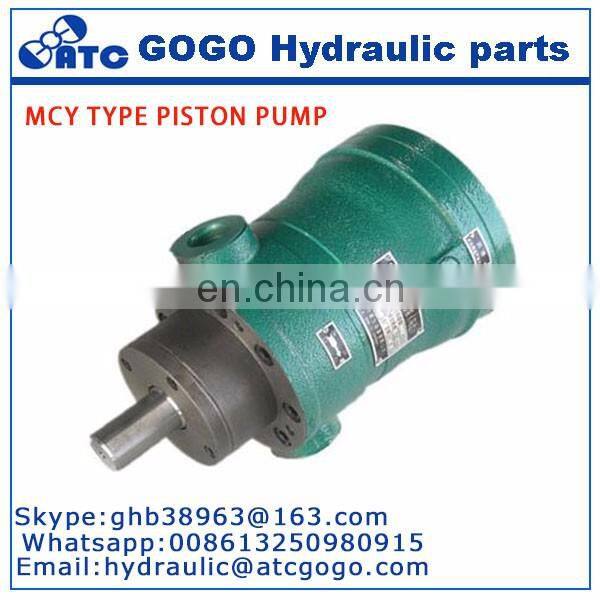

5MCY14-1B,YCY,SCY series Axial Flow oil operation hydraulic ram pump
Specification:
Model No | Pressure Mpa | Delivery ml/r | Rated speed r/min | Flow l/min | Power KW | Max Torque N.M | Weight kg |
1.25CY14-1B |
32 | 1.25 |
1500 | 1.25 | 0.9 | 8.7 | 4.5 |
2.5CY14-1B | 2.5 | 2.5 | 1.43 | 17.5 | 4.5~7.2 | ||
5CY14-1B | 5 | 5 | 2.9 | 27.4 | 10 | ||
10CY14-1B | 10 | 10 | 5.5 | 54.6 | 16.1~24.9 | ||
25CY14-1B | 25 | 25 | 13.7 | 134.9 | 28.2~41 | ||
32CY14-1B | 32 | 32 | 11.4 | 108.5 | 35 | ||
40CY14-1B | 40 | 40 | 20.7 | 197.5 | 40 | ||
63CY14-1B | 63 | 63 | 34.5 | 339.9 | 56~74 | ||
80CY14-1B | 80 | 80 | 29.2 | 278.8 | 63 | ||
160CY14-1B | 160 | 160 | 89.1 | 880.3 | 138~168 | ||
250CY14-1B | 250 | 250 | 136.6 | 1272.4 | 227 | ||
400CY14-1B | 400 | 400 | 138 | 1906.0 | 230 |
Features:
The CY14-1B axial piston pump is equipped with a valve plate and a cylinde block. In order to reduce the friction between the piston shoe and the wear plate, as well as the friction between the cylinder block and the valve plate, the product is designed with a hydrostatic balance system. This design provides the product with longer service life. Also, the product has other features, suct as simple structure, high efficient, light weight, and strong self-suction capability.
- Inner packing: opp bag, then carton box for each product
- Outer packing: export standard carton, Foam outside protecting the goods against damage
- Usually we ship your order by sea or by air...
- We do our best to ship your order within 1 week after receiving your payment
- We'll tell you the tracking number once your order has been sent
- We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
- We have more than 12 years experience in solenoid valves
- Excellent quality control is one of our main principles
- Various style for each products and completely series pneumatic products for you to choose from
- Sample order & small quantity order is ok
- We provide OEM service, accept customer label, develop the product with your drawings or samples
- Any question, will be replyed within 24 hours
Founded in July,2014, Ningbo Fenghua GO GO Automatic company is a high-tech enterprise with all vitality, potential and comprehensive strength. The company is located in the Zhejiang Ningbo Science &Technology zone, a unique place with beautiful scenery and gifts of nature.
Main products of our company : automatic parts, pneumatic solenoid valve, air water solenoid valve, hydraulic valves, gear piston or vane pumps, fittings connectors, temperature pressure transmitter, temperature controller, PLC, DCS parts, hardware stainless steel or brass or plastic parts , etc.
Since its foundation, the company keeps living up to the belief of :"honest selling, best quality, people-orientation and benefits to customers. " We are doing everything to offer our customers with best services and best products. We promise that we'll be responsible all the way to the end once our services begin.
