Product Details
| Brand Name | GOGO | Place of Origin | Zhejiang, China | |
| Model Number | CBT |
Product Description

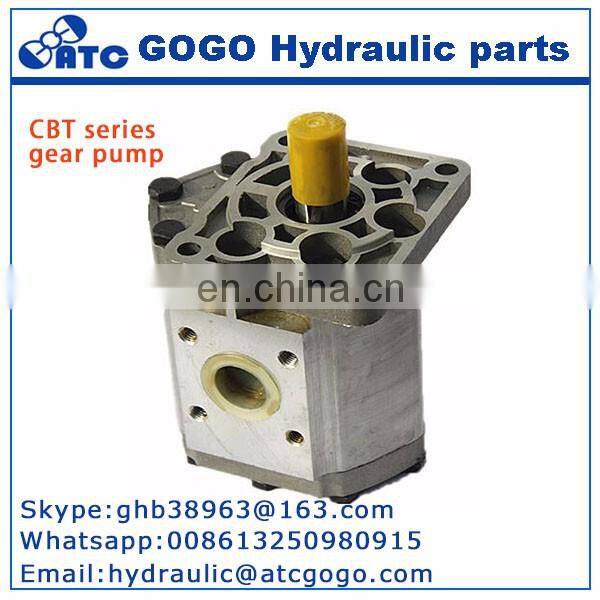

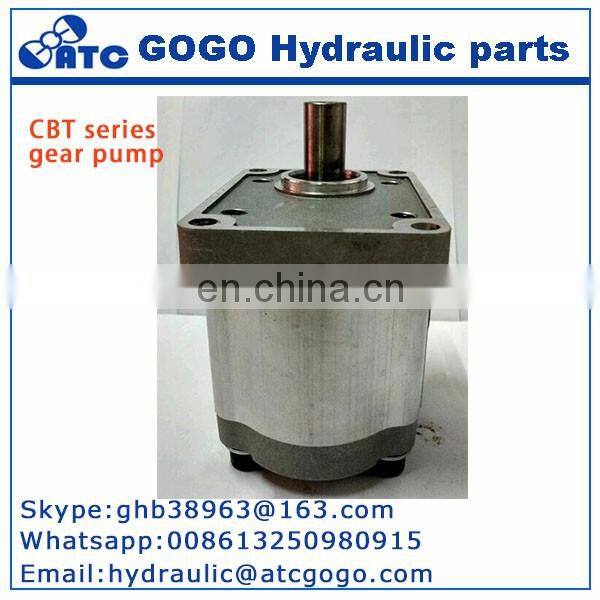

high pressure gear pump for hydraulic system CBT-F4
CBT-F4 series oil gear pump is made from high strength aluminum , There are many advanced techniques in side , such as axial alearance floating offset, radial balance , DU bearing. It features high volumetric efficiency, high pressure , low noise ,resistant-vibration and long working life. it is widely used oin forklift. Loading truck, mining machine, hoist and road roller etc.
CBT-F4 Series single hydraulic gear pump
1.CBT means Product code
2.'F"pated pressure,and there are two "E" 16Map "F"is 20Map
3.'4'means Geer modulus=4
4.There are such nominal displacement(mL/r) for choose :10,12.5,14,16,19.2,20,23,25,26.5,30,32
5.Mounting is oval
6.Joining port: L(screw) or F(flange)
7.Shaft end supplies:P(flat spline columnm ),H(rectanular spline),X(involute spline),S(SAE spline)
8.Roation:L(left or conterclockwise),R(right or clockewise ommitted)
Technical Specifications
Model | Nominal displacement ml/r | Rated pressure Mpa | Max. pressure Mpa | Rated speed rpm | Max. speed rpm | Min. speed rpm |
CBT-F306 | 6 | 20 | 25 | 2000 | 3000 | 600 |
CBT-F308 | 8 | 20 | 25 | 2000 | 3000 | 600 |
CBT-F310 | 10 | 20 | 25 | 2000 | 3000 | 600 |
CBT-F312 | 12 | 20 | 25 | 2000 | 3000 | 600 |
CBT-F314 | 14 | 20 | 25 | 2000 | 3000 | 600 |
CBT-F316 | 16 | 20 | 25 | 2000 | 3000 | 600 |
CBT-F320 | 20 | 20 | 25 | 2000 | 3000 | 600 |
CBT-F325 | 25 | 20 | 25 | 2000 | 3000 | 600 |
- Inner packing: opp bag, then carton box for each product
- Outer packing: export standard carton, Foam outside protecting the goods against damage
- Usually we ship your order by sea or by air...
- We do our best to ship your order within 1 week after receiving your payment
- We'll tell you the tracking number once your order has been sent
- We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
- We have more than 12 years experience in solenoid valves
- Excellent quality control is one of our main principles
- Various style for each products and completely series pneumatic products for you to choose from
- Sample order & small quantity order is ok
- We provide OEM service, accept customer label, develop the product with your drawings or samples
- Any question, will be replyed within 24 hours
Founded in July,2014, Ningbo Fenghua GO GO Automatic company is a high-tech enterprise with all vitality, potential and comprehensive strength. The company is located in the Zhejiang Ningbo Science &Technology zone, a unique place with beautiful scenery and gifts of nature.
Main products of our company : automatic parts, pneumatic solenoid valve, air water solenoid valve, hydraulic valves, gear piston or vane pumps, fittings connectors, temperature pressure transmitter, temperature controller, PLC, DCS parts, hardware stainless steel or brass or plastic parts , etc.
Since its foundation, the company keeps living up to the belief of :"honest selling, best quality, people-orientation and benefits to customers. " We are doing everything to offer our customers with best services and best products. We promise that we'll be responsible all the way to the end once our services begin.
Q: What is your main market?
A: Our main market is north America, especially USA.
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email or inquiry at alibaba directly. for samples order, you can go to our aliexpress shop and place the order.
