MINI CNC GRAPHITE MACHINE FOR ELECTRODE OF EDM
- 90 Set / Sets per Month
- QINGDAO
- T/T L/C
You May Like
-
SEMI-AUTO DRILLING MACHINE FOR TIRE MOULD WITH GOOD QUALITY
-
three-axis cnc engraving machine for tyre mold sidewall
-
four-axis cnc engraving machine for PCR mold sidewall
-
5 axis cnc pattern milling machine for OTR tyre mould
-
semi automatic drilling machine for venting hole
-
3 axis cnc engraving machine for tyre mould sidewall
Product Details
| Brand Name | FINE&PRECISE | Place of Origin | China | |
| Model Number | YFD-550 | Type | Vertical | |
| Certification | ISO 9001 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 12 MONTHS | Condition | New | |
| CNC or Not | CNC |
Product Description

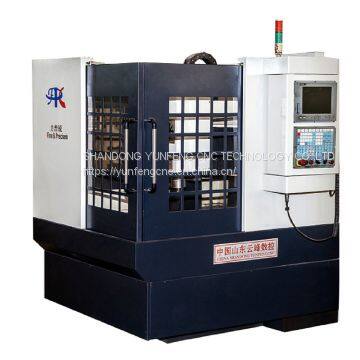

YFD-550 CNC vertical engraving machine is mini graphite equipment. With high-speed linear guide rail and ball screw, it can realize both fast feeding and high-precision of engraving. Gantry type frame improves the rigidity of the machine in the high-speed engraving process. With embedded high-speed electro-spindle, it lightens the weight of spindle, and realizes the high-speed engraving and upgrades the surface quality of parts. The power of equipment is greatly reduced by small capacity and low-inertia servo control components. All of theses make it first choice to engrave precisely the electrodes and other small parts.
Model | YFD-550 |
Operating system | Syntec system |
Size of workbench | 520×420mm |
X-axis stroke | 480mm |
Y-axis stroke | 340mm |
Z-axis range | 150mm |
Distance between spindle nose and workbench surface | 50-220mm |
Distance between beam undersurface and workbench surface | 320mm |
Width of material passing | 550mm |
Spindle power | 3 Kw |
Spindle speed | 1000 – 24000 RPM |
