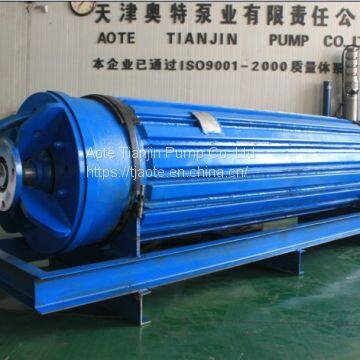

High Voltage Submersible 3-Phase Asynchronous Motor

FOB Price

US$ 1000 - 30000 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

High power submersible three-phase asynchronous motor

Item	Water-submersible 3-phase Asychronous Motor
YQS series	YQS150, YQS175, YQS200, YQS250
JQS series	JQS8'', JQS10''
1215-6H1178	1215, 1218, 1222, 1228, 1234, 1142, 1147, 1152,
1215-6H1178	1157, 1162, 1166, 1178
Voltage	380V, 660V, 1140V, 3000V, 6000V, 10000V
Rated power	3KW-2400KW
Package	Standard export wooden or iron cases
Delivery	20 days after we receive the deposit or L/C
Payment Term	L/C, T/T

Frame Number	YQS150	YQS175	YQS200	YQS250	JQS8''	JQS10''
Well Diameter(mm)	150	175	200	250	8''	10''

Frame Number	1215	1218	1222	1228	1234	1142
Well Diameter(mm)	150	200	250	300	400	550

Frame Number	1147	1152	1157	1162	1166	1178
Well Diameter(mm)	600	650	700	700	750	900

Application Condition:

1. The motor should be submerged into water and be operated vertically with a depth no more

more than 70m. The motor low side to the bottom of well should be no less than 5m.

2. The motors run continuously.

3. Medium water temperature should be no higher than 30℃.

4. Solid content of medium water should be no more than 0.01%(by weight)

5. The PH Value is 6.5-8.5 for iron motor, otherwise stainless motor.

6. The motor must be filled with clean water.

Packaging & Shipping

Standard export wooden or iron cases.
