Home > Products > Protocol converter > Communication Protocol Gateway ---For RS485 to Profibus PA communication board

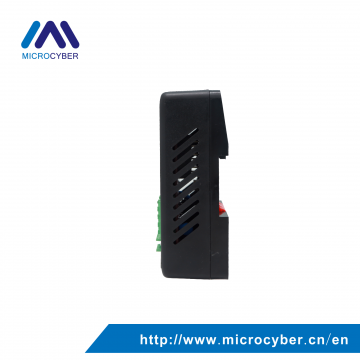

Communication Protocol Gateway ---For RS485 to Profibus PA communication board
- Shenyang
- T/T
You May Like
-
G1100 WirelessHART intelligent Gateway establish ,manage, mainten of WirelessHART net work
-
Modbus to HART Built-in Communication Module
-
Modbus RTU to Fieldbus FF built-in Module
-
Protocol Converter Module---MODBUS to Profibus PA (RS232)
-
USB or Serial Port HART Modem used for HART configuration
-
Wireless Adapter/WirelessHART adapter connect 4-20mA,HART and Modbus device to wirelessHART
Product Details
| Brand Name | Microcyber | Model Number | G0307 |
Product Description
Communication Protocol Gateway ---For RS485 to Profibus PA communication board
Physical Parameters
Bus signal: compliant with IEC61158-2 physical layer standard
Bus power supply: 9 ~ 32V
Operating temperature: -40 ~ 85°C
Static current: ≤14mA
Humidity range: 5% ~ 95%,non-dew
Mechanism size: diameter 66mm(can be customized)
Supportive MODBUS Communication Parameters
Address: 1 ~ 255
Baud rate: 9600 / 19200 / 15625 / 31250 /62500 / 125000 bps
Data bit: 7 / 8 bits
Calibration: odd / even calibration
Stop bit: 1 / 2 bits
CRC calibration: low byte ahead / high byte ahead
Data format: support various data formats
Supportive MODBUS Function Code
Function Code 1: read loop status
Function Code 2: read discrete input status
Function Code 3: read keeping register value
Function Code 4: read input register value
Function Code 6: write loop
Function Code 16:write multiple register values
