HART 4-20mA Protocol to Modbus RTU RS485 External Smart Gateway
- Shenyang
- T/T
You May Like
-
MODBUS RTU to FF DIN Rail Mounting Gateway
-
G1013 HART protocol (4-20mA) to FF protocol Smart Gateway (Converter)
-
Communication Protocol Gateway ---For RS485 to Profibus PA communication board
-
G1100 WirelessHART intelligent Gateway establish ,manage, mainten of WirelessHART net work
-
Modbus to HART Built-in Communication Module
-
Modbus RTU to Fieldbus FF built-in Module
Product Details
| Brand Name | Microcyber | Model Number | G0310 |
Product Description
Product Overview
G1003 gateway realizes protocol converting from HART to Modbus RTU / ASCII. Supporting to connect multi HART slave devices into Modbus network. In the gateway, HART terminal is master station, Modbus terminal is slave station.
Features
Be tallied with HART7.0
HART master and Modbus slave mode
4~20mA analog signal overlay HART digital signal
Support 15 HART slave device
Configure gateway by special software
Write protect user data
RS485 Modbus interface
LED power and communication indicating
Standard DIN rail installation
Details

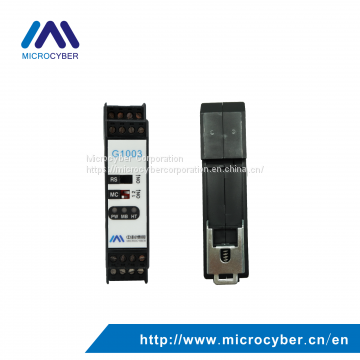

Structure of G1003 HART to Modbus Gateway
Explanation of Hardware Interface
Typical Topologic Connection
Parameters
Parameter | Value |
Working Temp. | -20 ... +70 °C |
Storage Temp. | -20 ... +70 °C |
Power Supply | 9~30VDC |
Dimension (L x W x H) | 114.5 x 22.5 x 99 mm (without connector) |
Modbus Interface | RS-232/RS-422/RS485 |
HART Interface | HART digital signal |
Indicator Light | SYS, APL, L/A, Rx/Tx, bus-specific |
Weight | 150 g |
Protocol before conversion | HART |
Protocol after conversion | Modbus |
EMC | GB/T 18268.1 |
Noise Interference | GB 9254 |
Installation | DIN-Rail, EN-50022 35mm x 7,5mm |
Size
Size of G1003 HART to Modbus Gateway (Unit:mm)
