55kg Blacksmith Forging Hammer Blacksmith Power Forging Hammer

Anyang Blacksmith Pneumatic Power Forging Hammer Introduction

Anyang blacksmith power hammers (from 9kg to 110kg) are self contained pneumatic power hammers.  The design is based on the time proved designs of the old European hammers many which are still in use today.  With a self contained power hammer, you require no external air supply or high pressure hoses.

The frames are cast iron, like the old Nazel, Beche, and Massey hammers.  Cast iron is more expensive to manufacture compared to fabricated hammers but they are heavier, do not flex over time, and have a lifetime warranty on the frame.

Advantages of Blacksmith Pneumatic Power Forging Hammer

1. Anyang pneumatic forging hammer do not need out-side air compressor. will compress air inside with motor driven flywheel.

2. The cast Iron Frame will never flex or warp.  Compare the weights of different hammers available and you will find that the Anyang is amongst the heaviest.  Cast iron is much more expensive to manufacture but allows the designer to put the mass and strength where it is required.

3. Lifetime frame warranty , one year on wearing parts against defects, one year on electrical components against defects.

4. External drive belts.  Design keeps the belts dry and away from oil. This eliminates belt slippage and extends belt life.  Replacing the belts is quick and easy.

5. The air ports are cast into the hammer.  This eliminates internal rubber hoses and fittings.

6. Low maintenance.  Anyang power hammer Automatic and fully adjustable oil system.  The two grease zerks are easy to reach.  Large tapered roller bearings in crank case for long trouble free life.

7. Simplistic design. Only 3 basic sections (crank case, compressor piston, ram).  Hammers can be disassembled, and if needed rebuilt in a day or less.

8. Very controllable, making the use of tooling easy.   The operator can change tooling or material thicknesses without adjusting the ram or stroke.

9. Easy to install- the whole installation of the blacksmith pneumatic forging hammer takes about 30-45 minutes.

10. Blacksmith power hammer ( C41-9, C41-15,C41-25,C41-40,C41-55,C41-75,C41-110 ) one piece which makes for easy installation.

11. Anyang power hammer good for making work handling tools for forging operation, forged hunting knives, scissors, general operational tools, farm implements and iron art parts for house gate & fence.

12. All Anyang power hammers have got CE. The design is safe.

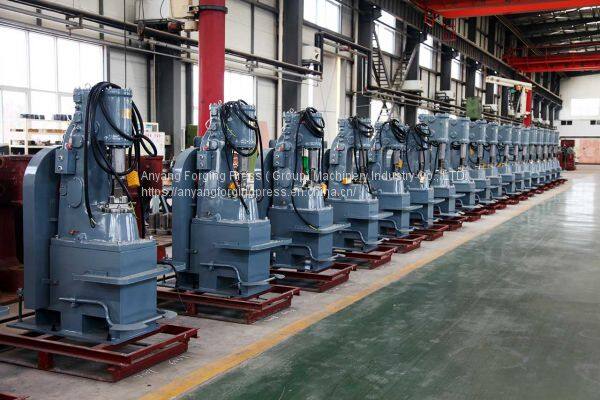

New Design (L Type)Pneumatic Power Forging Hammer Introduction

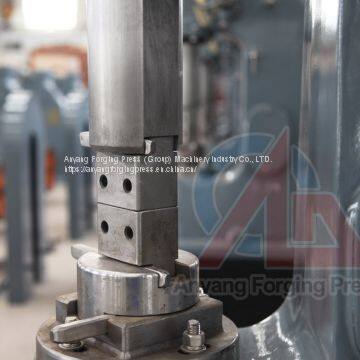

The new Anyang L type besides all above features, also have heavier frame and ram design where the key and die does not retract into the cylinder making it easy to change dies and use tooling.  You can forge heavy stock and immediately switch to thin light stock with no adjustments.  With a self contained hammer, you have tremendous forging power (a combination of ram weight, downward air force and velocity) plus precise control.

Anyang Power Hammer parameters

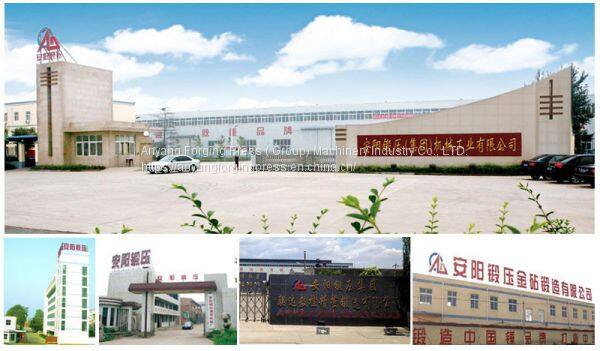

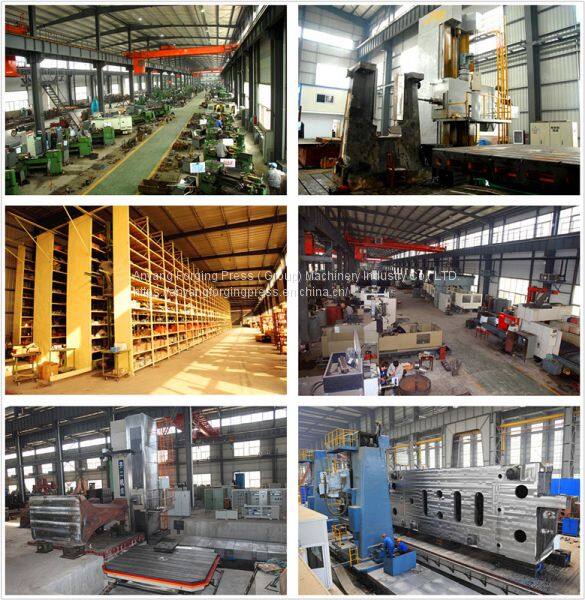

About Anyang Forging Press

Anyang Forging press is the top manufacture of forging equipment include closed die forging machines and open die forging machines in China. It was established in 1956, covers an area of about 80 acres and has 1600 staffs. Our company has passed ISO9001:2008 quality certification and all our product has obtained CE certificates.

Our main products are: Closed die forging equipment, free forging equipment and forging auxiliary machines.

The products have been exported to USA, Canada, Mexico, Brazil, Chile, UK, Germany, France, Italy, Norway, Romania, Russia, Slovenia, Burma, India, Pakistan, Egypt, South Africa etc., totally more than 60 countries and regions.

Service of Anyang Blacksmith Pneumatic Power Forging Hammer

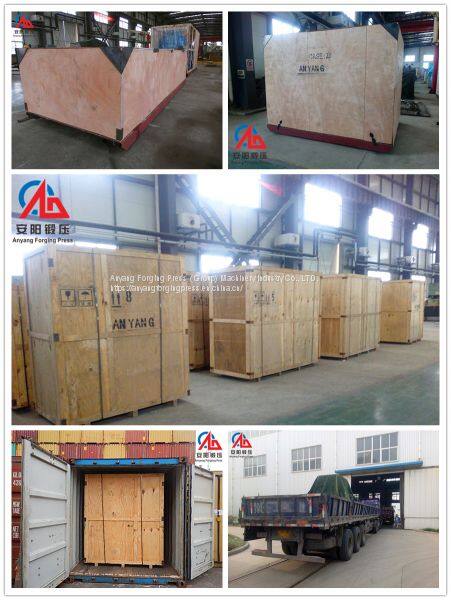

Package of Anyang Blacksmith Pneuamtic Power Forging Hammer

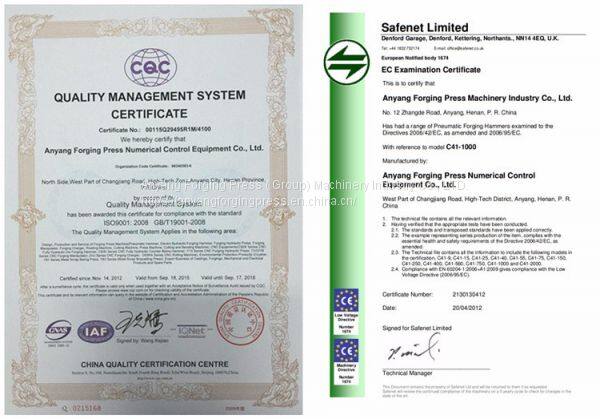

Certification of Anyang Blacksmith Pneumatic Power Forging Hammer
