Small wedge driver install forging dies

The purpose and significance of key driver

Now in general forging factories, they use drop hammer to drive wedge, this operation has a lot of disadvantages.Generally on one hand, an enterprise has only one hammer to use, no matter how big the wedge is, the striking force and direction can not be controlled, sometimes the force is too big to pull out it, and the wedge is also easy to damage. On the other hand, many people operate it at the same time, which is unsafe, and improper operation will damage other objects.

The key driver (wedge punch tool, wedge punch, bevel punch) produced by Anyang Forging Press Co., LTD. can be used with suitable forklift to drive wedges on forging hammers.The key driver is a pile machine driven by compressed air,the hitting head performs a quick hit with a corresponding strike energy.

Introduction of key driver:

Anyang Key driver (wedge driver) is to be used for the driving in and out of mounting wedges to forge hammers in combination with a suitable and permissible forklift.

The key driver (wedge driver ) may only be used if it is in impeccable technical condition whilst adhering to all instructions in the operating instructions.

Starting and operation of the driver is only possible in two-handed operation. The Key/wedge driving machine be operated by only one operator.

Compressed air supply for Key/wedge driver:

Compressed air supply shall be guaranteed to be clean, dry, and own continuous pressure as possible.If air is moist, installing a deflector in front of injector to protect the wedge tools from rust.

Usage and energy adjustment of key driver

The slide valve is the central control element for adjusting the wedge tool.Different functions can be achieved by adjusting rotary slider manually.

Position Z: in this position, the compressed air cannot pass through the control valve, so the piston has different air.

Position E: in this position, the compressed air of the wedge tool is stored after the air supply is disconnected.

Position 1-6: strike energy is adjusted from light to heavy by position 1-6.

Position 6 is the maximum cross-section that allows compressed air to pass through, at which point the wedge tool strikes with maximum strike energy.

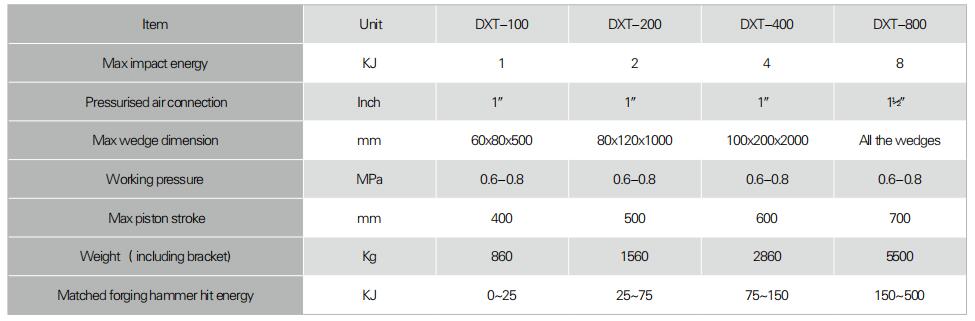

Key driver technical parameter:

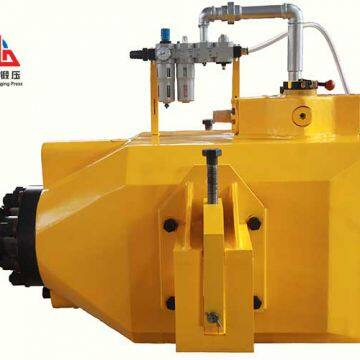

Manufacture picture of key driver

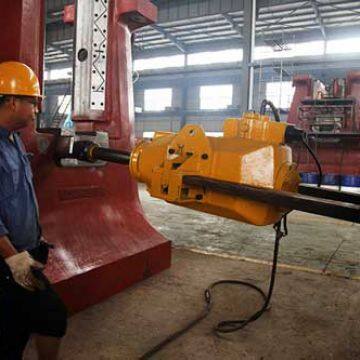

Key driver use to drive keys of forging hammer

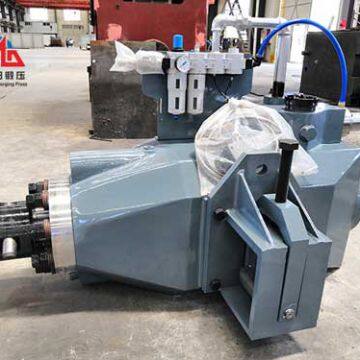

Key dirvers in stock

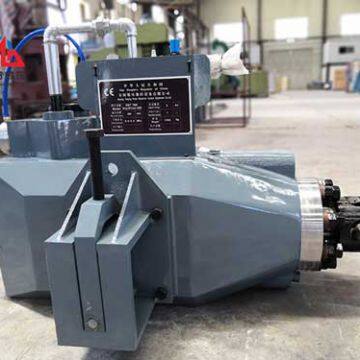

Key drivers ready to be shipped to Europe

 Wedge driving tools in stock.
