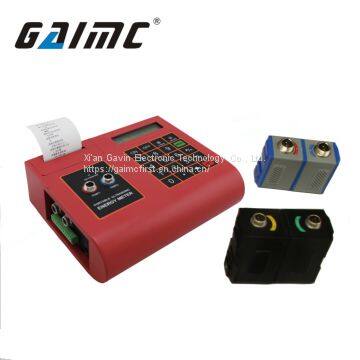

GUH130 SD storage Clamp on portable ultrasonic heat meter
- Any port of China
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 5 days
You May Like
-
GTS-N1017 Waterproof IP68 Aquarium Fish tank NTC temperature sensor
-
GFS131 Micro medical ventilator flow sensor
-
GFS131 Intensive care ventilator flow meter
-
GUF120A-W China wall mounted Clamp on pipe ultrasonic water flow meter price
-
GMF100 Industrial Electromagnetic 4-20ma output water flow meter
-
GVF100 Digital RS485 propane biogas steam vortex air flow meter price
Product Details
| Brand Name | GAIMC | Place of Origin | China | |
| Model Number | GUH130 |
Product Description
1.External post installation, cold, heat temporary measurement
2.Tools instruments, easy to use, followed by measurement
3.SD card massive data storage, portable printing functions
4.Applicable to cold and heat measurement site temporary inspection, heat network balance debugging
5.Nondestructive testing of uninstalled on-line metering equipment
Items | Parameter |
Diameter | DN32~DN6000 |
Pipe Material | Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed |
Temperature(℃) | 4~160 |
Difference range (K) | 3~70 |
Min pairing temperature error(℃) | ±0.1 |
Max allowable working pressure(MPa) | 1.6(Outside of scope, please consult customer service staff before ordering) |
Accuracy
| Class 2 |
Traffic transducer protection level | IP67 |
Temperature transducer protection level | IP68 |
Power supply
| 8 built-in Ni-MH batteries 1.2V(for over 20 hours of operation).90V-260VAC adapter |
Power consumption
| 1.5W |
Working condition
| Host:-20~60℃;Traffic transducer :-30~160℃ |
Host:85%RH; transducer protection level:IP67 | |
Communication | RS485 |
Local display | 2×10 character LCD with backlight,2 x 10 character western liquid crystal display,support the language of Chinese, English and Italy |
Display resolution
| Accumulated heat:0.001kGJ;Thermal power:0.0001GJ/h;Temp.:0.001℃;Differential temp.:0.0001℃ |
Max reading | Net cumulative flow:9999999~9999999m3 |
Net cumulative heat:0~9999999GJ | |
Storage temperature(℃) | -20~+60 |
Data storage | Thermal printer,external SD card (2G of capacity) |
Installation location | Water supply line, backwater line |
Flow measurement chart
More transducer for you choose
Eg:GUH130-TM-HT-CT-1-5-N
Note:Portable ultrasonic heat meter,High temp.Medium Size flow transducer,Clamp on transducer,cable length 5m*2,non 4-20mA output.
