Kaneko manual reset solenoid valve - M55 SERIES

1. SourceURL:file:///Users/aplle/Desktop/Item number.docx


2. BZ10C-8-B30-06

3. BZ10C-10-B30-06

4. BZ10D-10-B30-06

5. BZ10D-8-B30-06

6. BZ10D-10N-B30-06

7. BZ10D-8N-B30-06

8. BZ10C-10N-B30-06

9. BZ10C-8N-B30-06

10. M15G08-CE12PU

11. M30C-20-D44-SF12-TF

12. M55C-20-D12PG-TF

13. M30D-20-D44-SF12-TF

14. MK15G-8-CE12PU

15. MK15G-8-D12PG-TF-DMI

16. MK15G-8-A12PG-TF-DMI-K

17. M15G-8-AE12PU

18. M00U-8-D12PG-TF

19. GU-25-BBA-06

20. GU-10-BBA-H

21. LS-M-2LH

22. KS-2

23. Hoop material

24.

25. Kaneko solenoid valve 2 way M22 SERIES

Kaneko solenoid valve 2 way M30 SERIES

Kaneko solenoid valve 2 WAY M20 SERIES

Kaneko solenoid valve 3 way M00DU SERIES

Kaneko solenoid valve 3 way M00U SERIES

Kaneko solenoid valve 3 way M50 SERIES

Kaneko solenoid valve 3 way M55 SERIES

Kaneko Air - operated valve P15G SERIES

Kaneko Air - operated valve BZ11 SERIES

Kaneko Air - operated valve BZ10G SERIES

Kaneko solenoid valve 4 way M65DG SERIES

Kaneko solenoid valve 4 way M15DG SERIES

Kaneko solenoid valve 4 way M65G SERIES single

Kaneko solenoid valve 4 way M80G SERIES single

Kaneko solenoid valve 4 way MB15G SERIES single

Kaneko solenoid valve 4 way MT16G SERIES single

Kaneko solenoid valve 4 way M15G SERIES single

Kaneko solenoid valve 4 way MK15G SERIES single

Kaneko solenoid valve manual reset M31 SERIES

Kaneko solenoid valve manual reset M51 SERIES

Kaneko solenoid valve manual reset M81 SERIES

Kaneko solenoid valves manual reset M55 SERIES

Feature

A kind of safety valve capable of preventing malfunctioning.

Being a semi-automatic type, the valve does not operate freely like an ordinary solenoid valve by turning on or off of the power.

Constant power consumption.

As a direct-acting, manual-reset type three-way valve is used as the pilot valve, power consumption is kept constant, irrespective of the valve size.

Packed type

Free from any fear of burnout or insulation degradation as the coil and movable core do not come into contact with fluid.

Easy to operate manually.

Can be latched with the push of the palm button.

Available in two types ― no voltage release and electrically tripped.

Standard specification

FLUID

CLEAN AIR

FLUID TEMPERATURE

-20 ～ 60℃

AMBIENT TEMPERATURE

-20 ～ 60℃

DUTY CYCLE

100% CONTINUOUSLY RATED

OPERATING VOLTAGE RANGE

+10，-15％

WORKING PRESSURE

0.12 ～ 0.99MPa

Cv. FLOW FACTOR

See below

ELECTRICAL SPECIFICATIONS

See below

Cv. FLOW FACTOR

ELECTRICAL SPECIFICATIONS

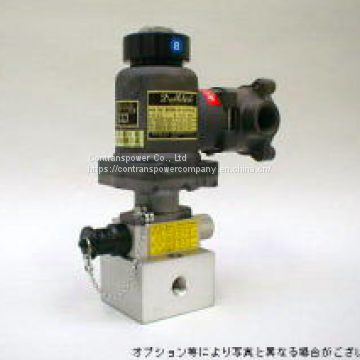

Product Image

M55 AC GENERAL PURPOSE TYPE

M55 DC GENERAL PURPOSE TYPE

M55 AC EXPLOSION-PROOF TYPE

M55 DC EXPLOSION-PROOF TYPE
