Feature

Internal sliding parts extremely slippery by the hard-anodized, stick-slip has excellent abrasion resistance in operation can not operate even without lubrication.

The main parts are made of aluminum alloy, has become very small and light.

You can be easily replaced AC, DC coil is designed so that both fit into the same casing.

Corrosion treatment has been applied in a very strong hard anodized corrosion resistant.

Flameproof is a test of the Ministry of acceptable product.

Main valve is not malfunction due to spring for actuation by a piston, without the need for a spring, also be left for a long period of time and therefore will operate off balance spool type.

With buttons for manual, you can check or test operation.

Minimum operating pressure is 0.1MPa operate reliably in because there is no Earosu.

You can also be used as a three-way valve to select the port in the form of port 5.

Standard specification

FLUID

CLEAN AIR

FLUID TEMPERATURE

-20 ～ 60℃

AMBIENT TEMPERATURE

-20 ～ 60℃

DUTY CYCLE

100% CONTINUOUSLY RATED

OPERATING VOLTAGE RANGE

+10，-15％

WORKING PRESSURE

0.1 ～ 0.99MPa

Cv. FLOW FACTOR

0.87

STANDARD VOLTAGE

See below

STANDARD VOLTAGE

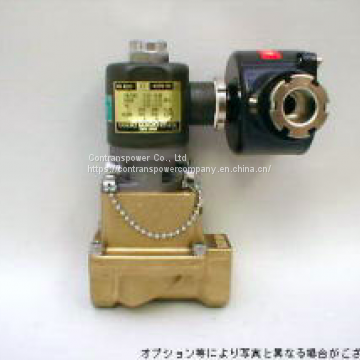

Product Image

M15G GENERAL PURPOSE TYPE

M15G EXPLOSION-PROOF TYPE

M15G HYDROGEN EXPLOSION-PROOF TYPE

M15G DUST EXPLOSION-PROOF TYPE

DESCRIPTION OF OPERATION
