Home > Products > SZADP Brand spot > SZADP Brand Spot Network Cable UTP CAT5E 24AWG High Quality 305m
SZADP Brand Spot Network Cable UTP CAT5E 24AWG High Quality 305m
- Shenzhen
- T/T
- 15 days
Product Details
| Brand Name | SZADP | Place of Origin | China | |
| Model Number | cat5e cca | Type | Cat 5e | |
| Number of Conductors | 8 |
Product Description
Product Description
SZADP Brand Spot Network Cable UTP CAT5E 24AWG High Quality 305m
1.Conductor:
material: solid Copper Clad Aluminum
diameter: 24AWG
construction 1/0.50±0.02mm
2.Insulator
material: HDPE
thickness: 0.24±0.05mm
diameter: 1.04±0.06mm
color: optional
elongation rate: Min.300%
tensile strength: Min.1.22kg/mm2
3.Jacket
material: PVC
thickness: average:0.50mm Min. at any point:0.40mm
diameter: 5.1±0.2mm
color: to your option
elongation rate: Min.125%
tensile strength: Min.1.41kg/mm2
flammability grade: CMX, CM
4. Rip cord& meter mark: optional
5. Standards: CE, ROHS, ISO 9001:2000, SGS verified
6. Application: 100 Base-TX, 100VG-AnyLAN, 1000 Base-T, 155Mbps ATM, 622Mbps ATM, Noisy Environment
7.Electrical function:
1. DC resistance ≤5.8 Ω/100m
2. Resistance imbalance≤2.5%
3. Insulation resistance≥5000MΩ.Km
5. Dielectric strength (DC)
Conductor-conductor 2.5KV/2s
Conductor-shield 6.3KV/2s
8.Working temperature: -20~+70

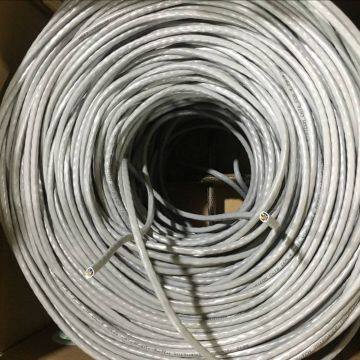

Detailed Images
