WTS200 GPRS/RS485 Ultrasonic Wind Speed Direction Sensor Weather Station
- tianjin
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
-
WTS200 Ultrasonic Wind Speed Direction Sensor Weather Station
-
WTS200 Ultrasonic Wind Sensor Integrated Weather Station
-
WTS200 Ultrasonic Wind Sensor Integrated Weather Sensor Outdoor Weather Station
-
WTS200 Ultrasonic Wind Sensor Integrated Weather Sensor Outdoor Weather Station RS485 Output
-
WTS200 Ultrasonic Wind Sensor Integrated Weather Sensor Outdoor Weather Station GPRS Output
-
WTS200 Ultrasonic Wind Sensor Integrated Weather Sensor Outdoor Weather Station Wireless GPRS Output
Product Details
| Brand Name | Tsingsense | Place of Origin | China | |
| Model Number | WTS200 |
Product Description

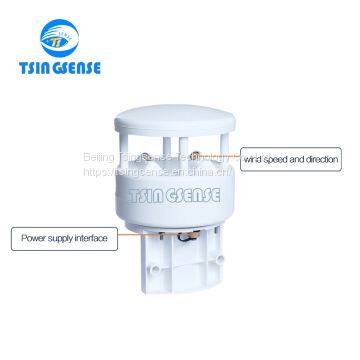

WTS200 two parameter integrated meteorological sensor is a professional sensor developed by our company to measure various meteorological elements.It can simultaneously measure two meteorological parameters, wind direction and wind speed. It has the advantages of high accuracy, fast response time, strong anti-interference ability, serial port output and so on.Users can measure directly through PC or external instruments.
Features
l Integrated design of multiple sensors,(No need for a receiver )
l Design of maintenance free system,(Simple installation)
l Open system protocol
l Ultrasonic measurement principle
l Standard RS485 output,(Optional RS232)
l Ultra low power design,(0.2W)
l Industrial-grade protective casing for long-term field use
l Optional built-in electronic compass, GPRS, GPS, etc.
Technical Parameters
Factor | Measuring range | Resolution | Accuracy | Measurement principle |
Wind direction | 0~360° | 1° | ±3° | Ultrasonic principle |
Wind speed | 0~60m/s | 0.1m/s | ±0.3m/s | Ultrasonic principle |
Optional configuration function(Built-in sensor ):GPRS-a01, WiFi-a02, Ethernet-a03, Electronic compass-b01, GPS-b02, Heating(48W)-c01, Battery-d01. | ||||
Packing list
sensor 1 set
3.5m cable 1 line
instruction 1 copy
certificate/warranty 1 copy
packing list 1 copy
FAQ for WTS200 uitrasonic wind sensor
Q:Do you supply tripod and solar panels?
A:Yes, we can supply it, but this is optional.
Q:Can we choose the required sensor for the weather station?
A:Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.
Q:What is the way of transmission mode?
A:Standard RS485 output,(Optional RS232)
Application
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don't offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
Q: Could we make a visit to your company?
A: Of course, we welcome all the friends' visits.
